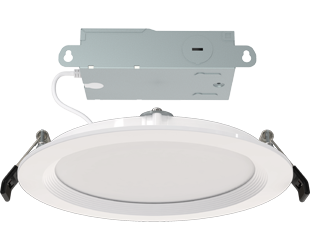

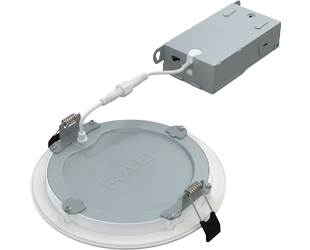

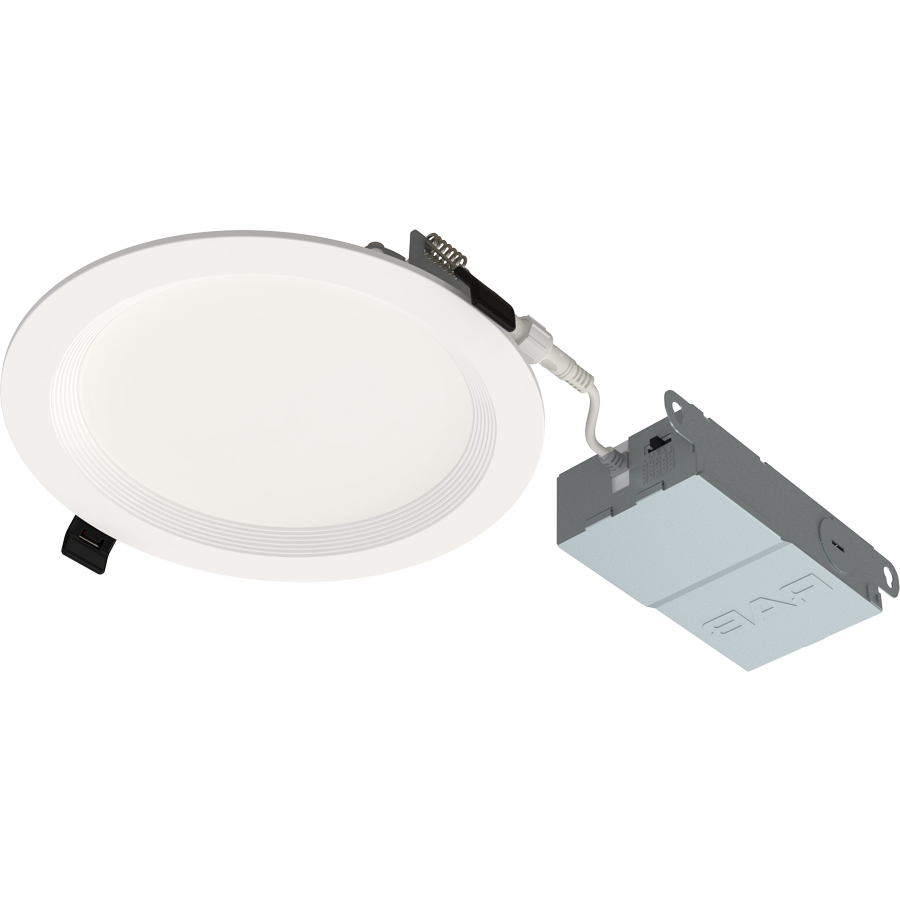

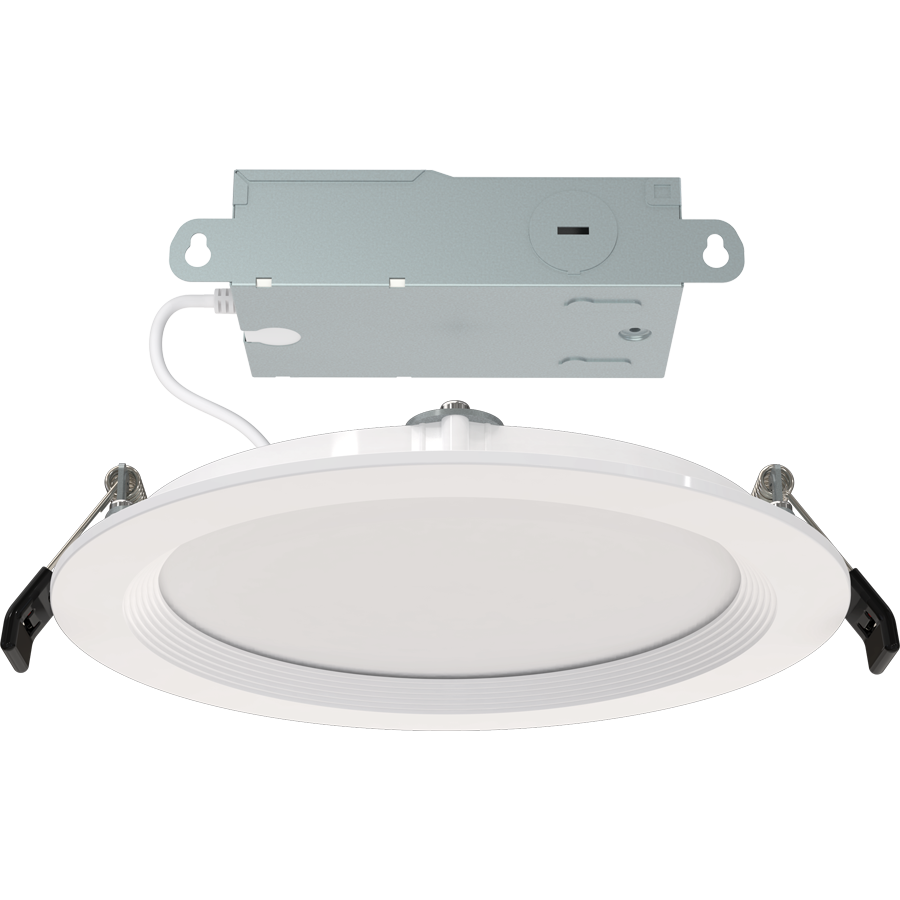

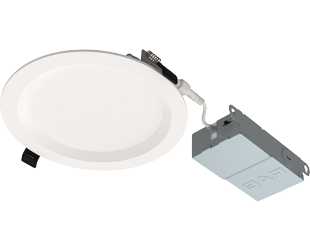

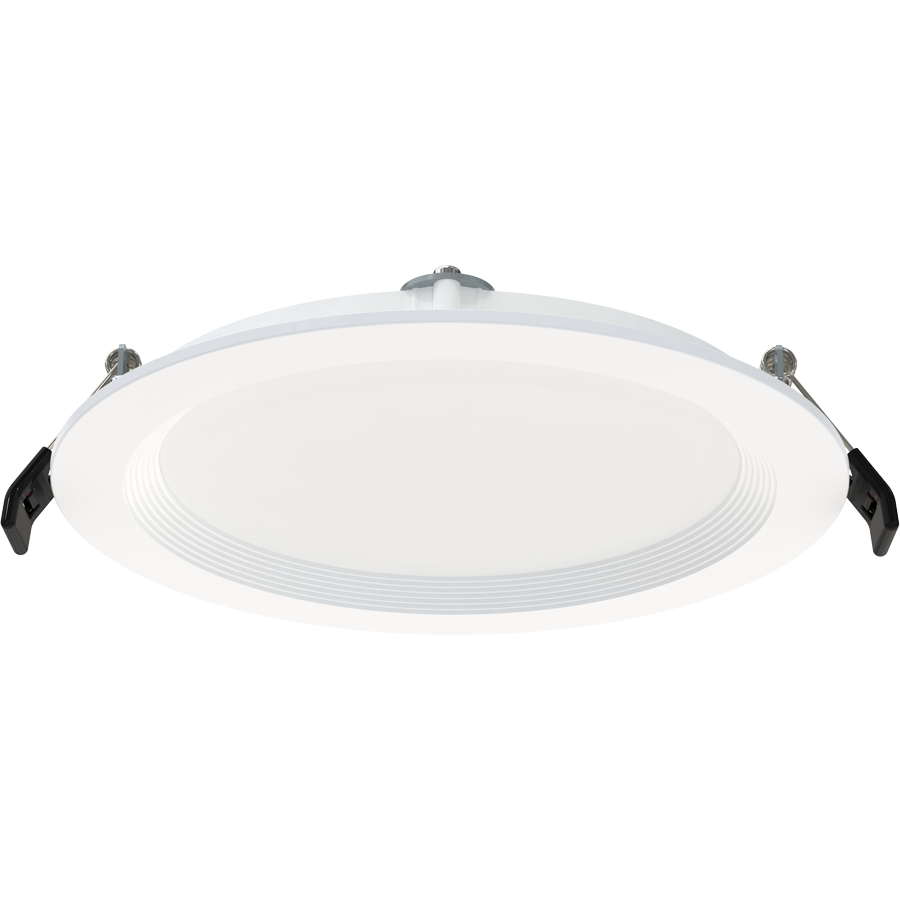

WFR34-6B/BP
13W 2700/3000/3500/4000/5000K
- Slim can-less LED recessed downlights designed for easy installation into new construction or remodel applications.
- Five selectable color temperatures in each fixture. (2700-3000-3500-4000-5000K)
- No housing required and includes pre-wired junction box. IC and Air-Tight rated.
- Available in smooth & baffle trims, wet location rated, and CEC Title 24 compliant
- Packaged in bulk case quantities of 12
Performance
| Watts | 13W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 865-990 lm |
| Efficacy | 67.9-78.6 lm/W |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 30,000 Hours |
| Type | Constant Current |
| 120V | 0.13A |
| 208V | 0.00A |
| 240V | 0.00A |
| 277V | 0.00A |
| Input Watts | 12.5-12.8W |

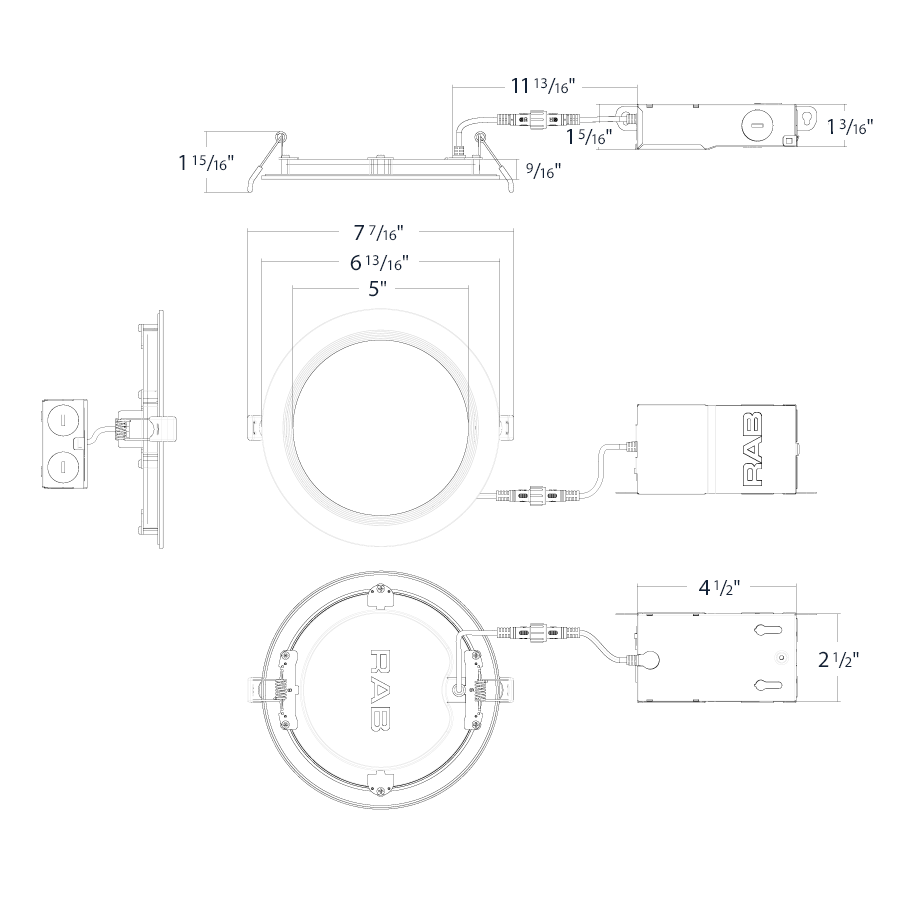

Dimensions
Weight: 0.9 lbs
Technical Specifications
Performance
Product Type
Round, Edge-Lit Wafer
Description
Bulk packaged contractor friendly, 4" and 6" wafers with selectable wattage and CCT that boast 90 CRI. Designed for 120V use and TRIAC/ELV dimming. Available with smooth or baffle trim
Wattage Equivalency
75W Incandescent
Input Wattage
13W
Lumens
900lm
Efficacy
69lm/W
L70 Lifespan
30,000-hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current @ 120V, 60 Hz: 118mA
THD
<20%
Power Factor
0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Flicker
<30%
LED Characteristics
Beam Angle
110°±10°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
90 CRI
Natural Spectrum
No
R9 Value
High color performance with R9 greater than 50
Color Consistency
<5-step (2700K &5000K);<7-step (3000/3500/4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation

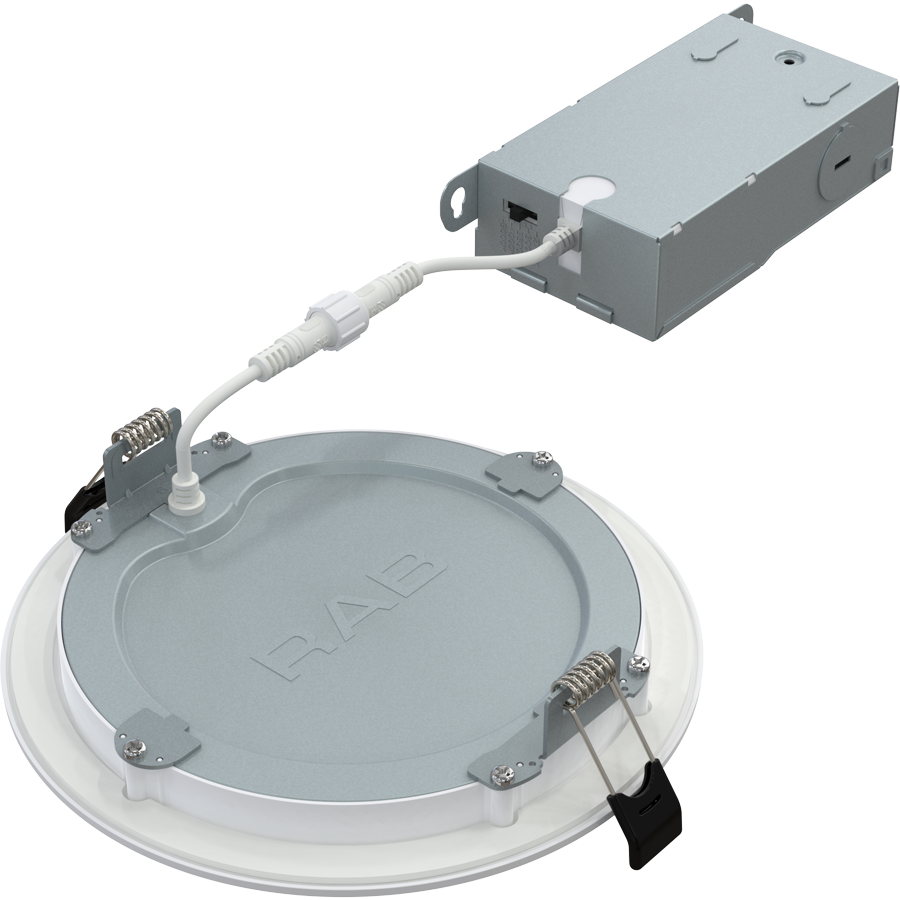

Remote Driver/Junction Box
Aluminum driver / junction box with captive hinged junction box cover. Listed for (6) #12 AWG 90°C splice conductors, 2-in, 2-out plus (2) ground. Integral keyhole mounting slots facilitate direct mounting to building structure or new construction mounting frame.
Mounting
Utilizes a remote driver with built-in junction box and quick disconnect; Eliminates the need for traditional donwlight housings.
Construction
Size
6"
Shape
Round
Finish
White
Enclosure Material
Plastic+Metal
Trim Style
Baffle
Lens Finish
Frosted
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Compliance
Listings
UL Listed
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
Suitable for direct contact with insulation.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Air Tight
No
Energy Star Approved
No
Certification Model Number
DLW0149(WFR34-6B)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
Compatible Accessories
WFRL-GOOF-6R-8R-W
6"-8" Goof ring round
WFRL-TRIM-6R-BS
6" Color trim round black smooth
WFRL-TRIM-6R-BRS
6" Color trim round bronze smooth
WFRL-TRIM-6R-BNS
6" Color trim round brushed nickel smooth
DLPLATE/WFR3468/NB
3", 4", 6", 8" Mounting plate w/nailer bar
DLPLATE/WFR3456
3", 4", 5", 6" Mounting plate
DLPLATE/WFR6/NB/CL
6" Mounting plate w/nailer bar and drywall collar
DLPLATE/WFR6
6" Mounting plate
6"-8" Goof ring round
WFRL-TRIM-6R-BS
6" Color trim round black smooth
WFRL-TRIM-6R-BRS
6" Color trim round bronze smooth
WFRL-TRIM-6R-BNS
6" Color trim round brushed nickel smooth
DLPLATE/WFR3468/NB
3", 4", 6", 8" Mounting plate w/nailer bar
DLPLATE/WFR3456
3", 4", 5", 6" Mounting plate
DLPLATE/WFR6/NB/CL
6" Mounting plate w/nailer bar and drywall collar
DLPLATE/WFR6
6" Mounting plate
3-Year Limited Warranty
The RAB 3-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty
