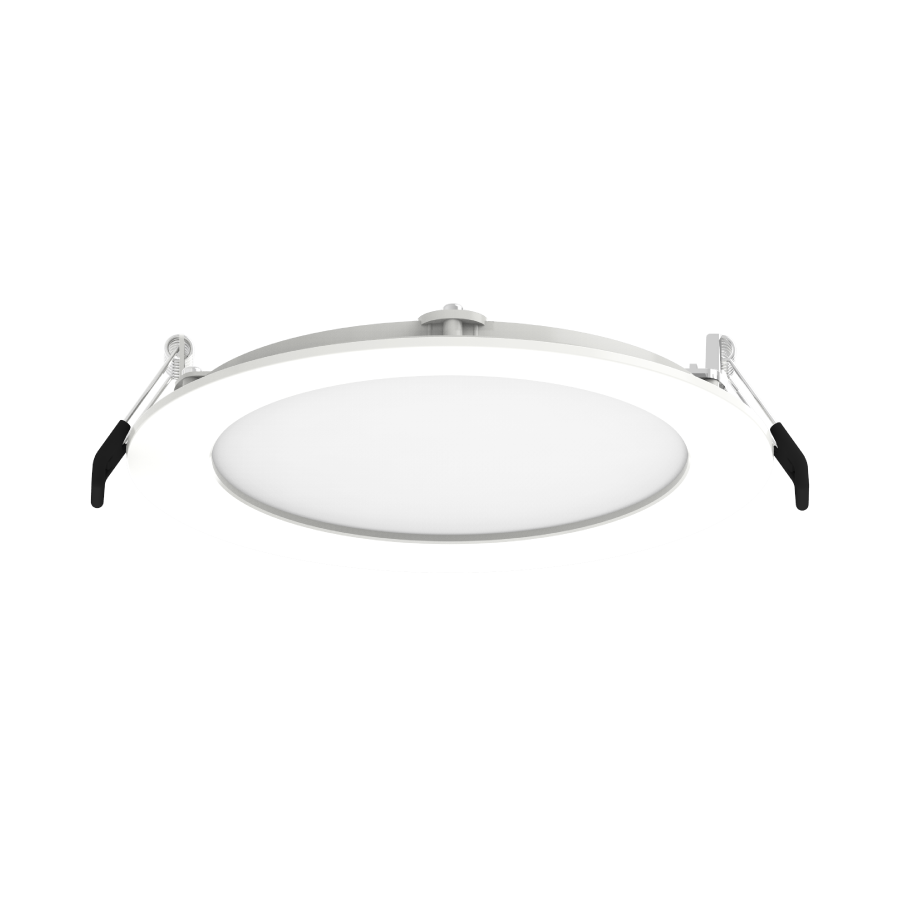

WFRL6R139FADWS
WFRL6R139FADWS
- 5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)
- Super slim edge-lit fixture for thin fixture depth
- No recessed housing or J-box required
- New construction or retrofit applications
- UL wet location rated
- Smooth diffused uniform light distribution
- Dimmable down to 10% on compatible dimmers
- Spring loaded retention clips
- Robust, die cast aluminum construction
- IC and airtight rated
- 5-Year, No-Compromise Warranty
Performance
| Watts | 13W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 1,300 lm |
| Efficacy | 100 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.12A |
| 208V | 0.07A |
| 240V | 0.06A |
| 277V | 0.05A |
| Input Watts | 13W |
Dimensions
Weight: 1.0 lbs
Technical Specifications
Performance
Product Type
Commercial Edge-Lit Wafer
Description
Edge-lit wafers with a slim form factor and selectable color temperatures for commercial applications. Available in 6", and 8" models with either smooth or baffle trim, all with 90 CRI and TRIAC/ELV dimmin
Wattage Equivalency
75W Incandescent
Input Wattage
9W
Nominal Lumens
1,200lm
Measured Lumens
1,139lm @ 2700K; 1,200lm @ 3000K; 1,282lm @ 3500K; 1,304lm @ 4000K; 1,300lm @ 5000K
Efficacy
88m/W @ 2700K;
92lm/W @ 3000K;
99lm/W @ 3500K;
100lm/W @ 4000K;
100lm/W @ 5000K
92lm/W @ 3000K;
99lm/W @ 3500K;
100lm/W @ 4000K;
100lm/W @ 5000K
Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Class 2 60 Hz, 120V: 118mA; 208V: 65mA; 240V: 56mA; 277V: 52mA
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV or 0-10V dimming systems. See Dimmer Compatibility List.
Input Voltage
120-277V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
118mA
Input Current @ 208V (mA)
65mA
Input Current @ 240V (mA)
56mA
Input Current @ 277V (mA)
52mA
Sensor Settings
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
LED Characteristics
Beam Angle
110°±10°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
>90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step (2700K & 5000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED Color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Remote Driver/Junction Box
Die-formed metal driver / junction box with captive hinged junction box cover. Listed for maximum of (4) 12AWG through branch circuit conductor suitable for 90° C permitted in box. Easy to wire in 2in/2out (plus ground) applications. (4) conduit pry-outs. (3) quick snap-in connectors for quick and reliable line voltage connections. Integral mounting facilitates direct mounting to building structure or mounting frame.
Mounting
Recessed, no housing required
Construction
Size
6"
Shape
Round
Finish
White
Enclosure Material
Plastic
Trim Style
Smooth
Lens Finish
Frosted
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Air Tight
Housing certified Air Tight as per ASTM E283
Compliance
Listings
UL Listed
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
Suitable for direct contact with insulation.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Energy Star Approved
This product is ENERGY STAR® Certified.
Energy Star ID
3555564
DLC Listed
No
Certification Model Number
DLW0067(WFRL6R139FADWS)
California Title 20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
Compatible Products
WFRL-GOOF-6R-8R-W
6"-8" Goof ring round white
WFRL-TRIM-6R-BS
6" Color trim round baffle black
WFRL-TRIM-6R-BNS
6" Color trim round baffle brushed nickel
WFRL-TRIM-6R-BRS
6" Color trim round baffle bronze
DLPLATE/WFR3468/NB
Mounting plate for 3", 4", 6", 8" with nailer bar
DLPLATE/WFR3456
Mounting plate for 3", 4", 5", 6"
DLPLATE/WFR6/NB/CL
Mounting plate for 6" wafer with nailer bar and drywall collar
DLPLATE/WFR6
Mounting plate for 6" wafer
EXTCBL-FA-6
6' Extension cable
EXTCBL-FA-12
12' Extension cable
EXTCBL-FA-20
20' Extension cable
DRI-25-EMGR-DC
Emergency driver 100-277V 25W
DRI-21-EMGR-DC-D10
Emergency driver 100-277V 21W 0-10V T20
6"-8" Goof ring round white
WFRL-TRIM-6R-BS
6" Color trim round baffle black
WFRL-TRIM-6R-BNS
6" Color trim round baffle brushed nickel
WFRL-TRIM-6R-BRS
6" Color trim round baffle bronze
DLPLATE/WFR3468/NB
Mounting plate for 3", 4", 6", 8" with nailer bar
DLPLATE/WFR3456
Mounting plate for 3", 4", 5", 6"
DLPLATE/WFR6/NB/CL
Mounting plate for 6" wafer with nailer bar and drywall collar
DLPLATE/WFR6
Mounting plate for 6" wafer
EXTCBL-FA-6
6' Extension cable
EXTCBL-FA-12
12' Extension cable
EXTCBL-FA-20
20' Extension cable
DRI-25-EMGR-DC
Emergency driver 100-277V 25W
DRI-21-EMGR-DC-D10
Emergency driver 100-277V 21W 0-10V T20
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
