WHALE4

160W 3500/4000/5000K

NSF certified for use in food-preparation facilities

100,000-Hour LED lifespan

DLC Premium Listed

IP67 Rated for Wet Locations

NEMA 4X Rating Listed

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	160/140/120W
Color Temp	3500/4000/5000K
Lumens	17,991-24,462 lm
Efficacy	150.5-164.6 lm/W
Color Accuracy	85-86 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	1.33A/1.17A/1.00A
208V	0.77A/0.67A/0.58A
240V	0.67A/0.58A/0.50A
277V	0.58A/0.51A/0.43A
Input Watts	112-158W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 23.4 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

NSF

NSF Certified by Public Health and Safety

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP67 for dust and water

NEMA Rating

NEMA 4X rating indicates an enclosure protects against windblown dust and rain, splashing and hose-directed water, and offers additional corrosion resistance.

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-P3YF6D (Stairwell and Passageway Luminaires)
DLC Product Code: S-WX78XF (High-Bay Luminaires for Commercial and Industrial Buildings)

Electrical

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

3.93% at 120V, 10.17% at 277V

Power Factor

99.8% at 120V, 97.4% at 277V

Surge Protection

Ringwave LN4 kV/LN-GND 6 kV

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Construction

Housing

Impact-resistant polycarbonate* with stainless steel door clips. 1/2" NPS opening for conduit and bushing/cord entry. *Polycarbonate is affected by cleaning agents or other liquids containing partial solvents such as low molecular weight aldehydes and ethers, ketones, esters, aromatic hydrocarbons and perchlorinated hydrocarbons. Click here for a detailed list of damaging chemicals.

Lens

Diffuse polycarbonate lens for low glare and maximum protection

Gaskets

High-temperature silicone gaskets

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

160W: Surface Mount: -40° to 122°F (-40 to 50°C); Suspended Mount: -40° to 131°F (-40 to 55°C)
140W: Surface Mount: -40° to 131°F (-40 to 55°C); Suspended Mount: -40° to 140°F (-40 to 60°C)
120W: Surface Mount: -40° to 131°F (-40 to 55°C); Suspended Mount: -40° to 140°F (-40 to 60°C)

Installation

Tether Cables are provided for easy installation. Quick connector may be used for quick and easy wiring.

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Formulated for high durability and long-lasting color

Installation

Mounting

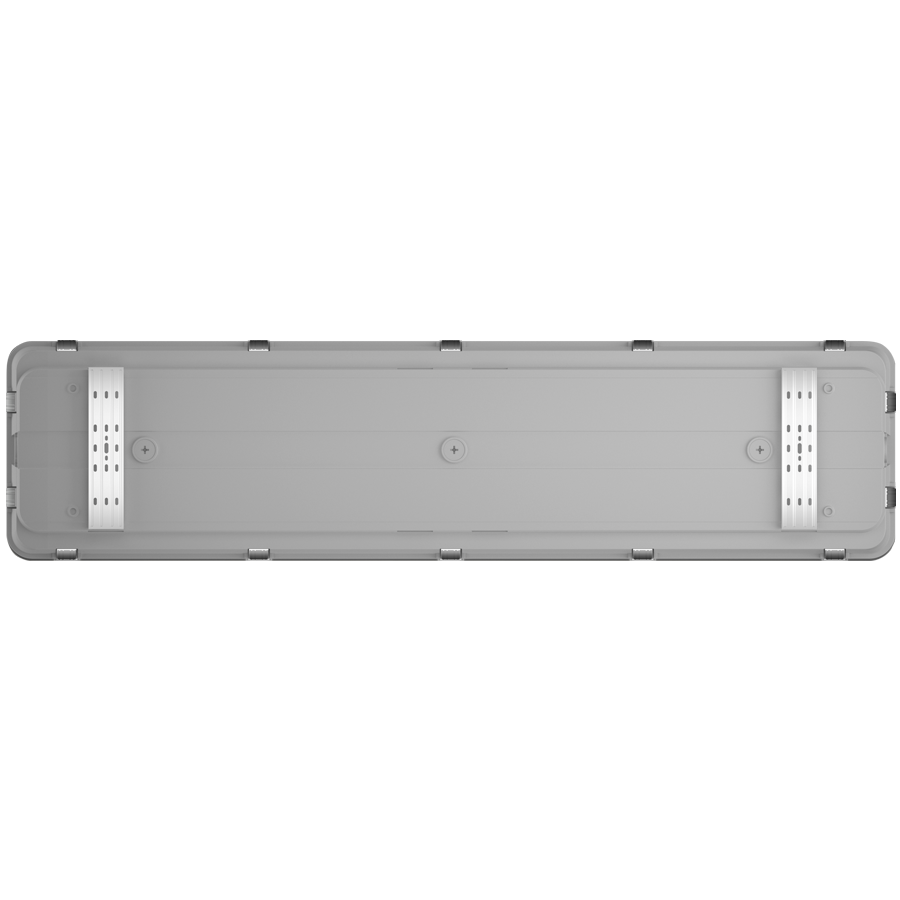

Quick-mount, stainless steel snap on brackets supplied for surface mounting. V-Hook brackets supplied standard for suspending the fixture.

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
