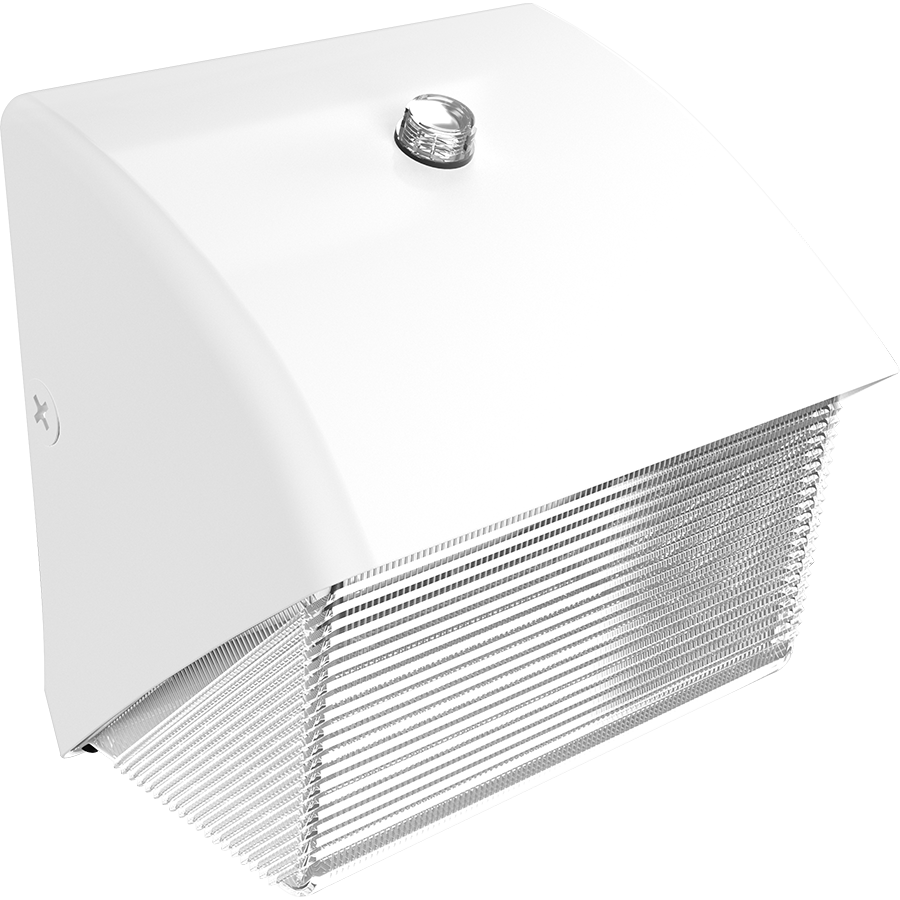

WP1LED39L-740WU/PCS2
WP1LED39L-740WU/PCS2
- Affordable wall pack with traditional look
- Ultra-high efficacy
- Covers footprint of small HID wall packs
- 100,000-Hour LED lifespan
Performance
| Watts | 26W |
| Color Temp | 4000K (Neutral) |
| Lumens | 3,775 lm |
| Efficacy | 143.5 |
| Color Accuracy | 73 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.22A |
| 208V | 0.13A |
| 240V | 0.11A |
| 277V | 0.09A |
| Input Watts | 26.3W |
Dimensions
Weight: 4.5 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PEEZ48AS
DLC Product Code: PEEZ48AS
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 100W Metal Halide
LED Characteristics
LEDs
Multip-chip, high-output, long-life LEDs
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
104°F (40°C )
Housing
Die-cast aluminum
Reflector
Aluminum alloy
Lens
Acrylic lens
Gaskets
High-temperature silicone gaskets
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Electrical
Driver
Constant Current, 120-277V, 50/60 Hz, 120V: 0.22A, 208V: 0.13A, 240V: 0.11A, 277V: 0.09A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
7.92% at 120V, 16.52% at 277V
Power Factor
99% at 120V, 89.6% at 277V
Surge Protection
2 kV
Photocell
277V Swivel photocell included. Photocell is compatible with 208V-277V.
Installation
Mounting
Surface mount
Optical
BUG Rating
B1 U3 G3
Other
10-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
