WP1LED39L-750WU/MVS

Spec Sheet Instructions Spec Sheet

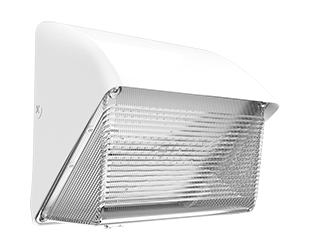

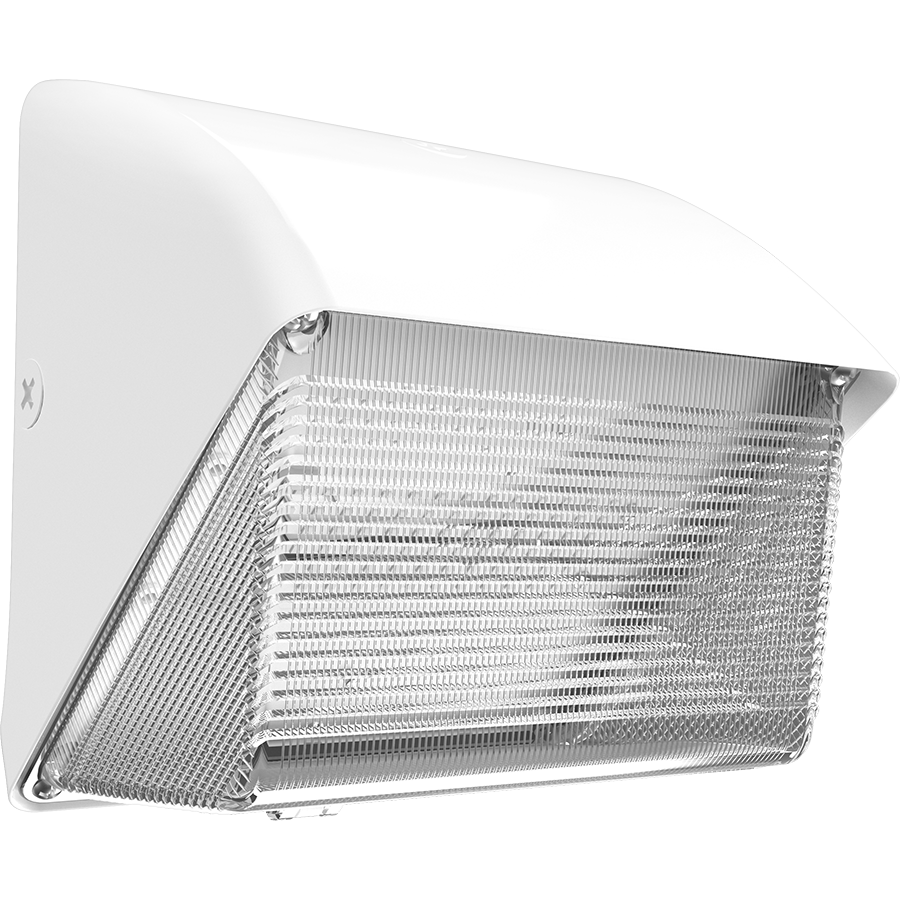

WP1LED39L-750WU/MVS

Affordable wall pack with traditional look

Ultra-high efficacy

Covers footprint of small HID wall packs

100,000-Hour LED lifespan

View Technical Specs

View Price & Availability

Performance

Watts	26W
Color Temp	5000K (Cool)
Lumens	3,973 lm
Efficacy	150.5
Color Accuracy	72 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.22A
208V	0.13A
240V	0.11A
277V	0.09A
Input Watts	26.4W

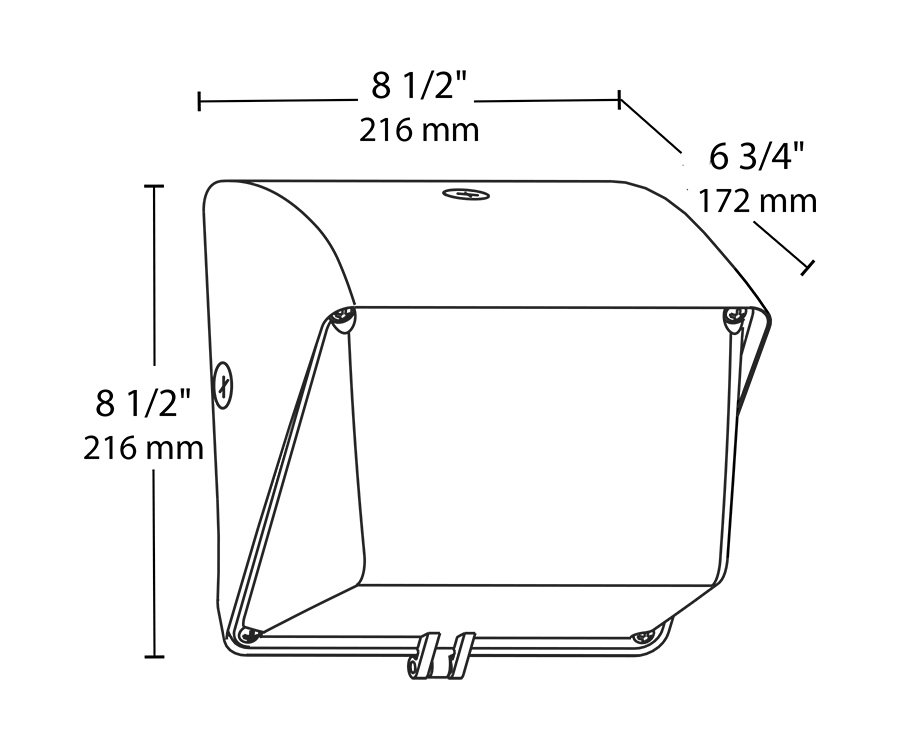

Dimensions

Weight: 4.5 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P7YSU5M9

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 100W Metal Halide

LED Characteristics

LEDs

Multip-chip, high-output, long-life LEDs

Construction

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Maximum Ambient Temperature

40°C (104°F)

Housing

Die-cast aluminum

Reflector

Aluminum alloy

Lens

Acrylic lens

Gaskets

High-temperature silicone gaskets

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Electrical

Driver

Constant Current, 120-277V, 50/60 Hz, 120V: 0.22A, 208V: 0.13A, 240V: 0.11A, 277V: 0.09A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

8.67% at 120V, 16.62% at 277V

Power Factor

99.1% at 120V, 89.7% at 277V

Surge Protection

2kV

Installation

Mounting

Surface mount

Optical

BUG Rating

B1 U3 G3

Sensor Settings

Capacitance Load

400VA at 120VAC, 800VA at 230VAC, 1000VA at 277VAC

Operating Temperature

-20°C to +60°C (-4°F to +140°F)

Relay

Zero-cross relay

Maximum Mounting Height

16.4 ft

Customizable Detection Area

10, 50, 75 or 100%

Time Delay

5s, 30s, 1min, 5min, 10min, 20min, 30min

Cut Off Period

0s, 10s, 1min, 5min, 10min, 30min, 1hr, Bi-Level

Cut-Off Dimming level

10, 20, 30, 50%

Cut-Off Power

Less than 1W

Daylight Threshold

About .2-5 fc for disabled

Sensor Principle

High Frequency

Microwave Frequency

5.8GHz +/- 75MHz

Microwave Power

<0.2mW

Max Detection Range

26 ft diameter at 16 ft mounting height

Detection Angle

About 30 to 150 degrees

Remote Control Accessory

Adjust settings using remote control (catalog# MVSREM). Only available with 0-10V dimming driver options. Remote control available here.

Other

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
