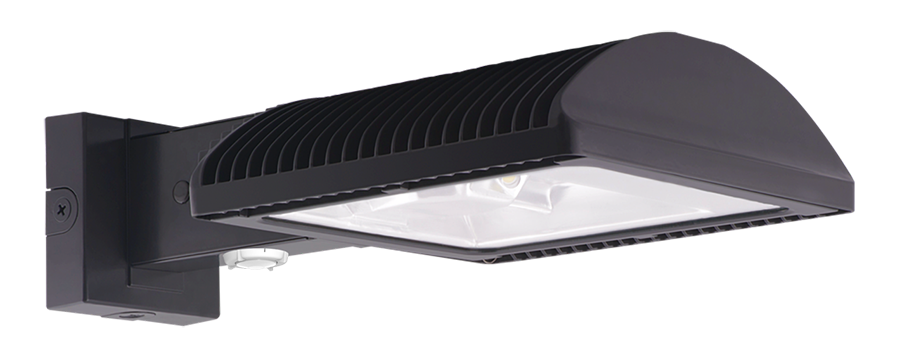

WPLED2T125/D10/WS4
WPLED2T125/D10/WS4
- High performance LED light engine
- Maintains 70% of initial lumens at 100,000-hours
- Weatherproof high temperature silicone gaskets
- Superior heat sinking with die cast aluminum housing and external fins
- Replaces 400W MH
- 100 up to 277 Volts
- 5-Year, No-Compromise Warranty
Performance
| Watts | 125W |
| Color Temp | 5000K (Cool) |
| Lumens | 12,368 lm |
| Efficacy | 91.5 lm/W |
| Color Accuracy | 65 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 1.12A |
| 208V | 0.70A |
| 240V | 0.61A |
| 277V | 0.52A |
| Input Watts | 135.1W |
Dimensions
Weight: 34.8 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Construction
IES Classification
The Type II distribution is ideal for wide walkways, on ramps and entrance roadways, bike paths and other long and narrow lighting applications. This type is meant for lighting larger areas and usually is located near the roadside. This type of lighting is commonly found on smaller side streets or jogging paths.
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Thermal Management
Superior thermal management with external "Air-Flow" fins
Housing
Die-cast aluminum housing, lens frame and mounting arm
Reflector
Specular vacuum-metallized polycarbonate
Gaskets
High-temperature silicone gaskets
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
One Driver, Constant Current, Class 2, 1800mA 100-277V, 50-60Hz, Power Factor 99%
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
5.4% at 120V, 15.4% at 277V
Installation
Mounting
Heavy-duty 1/2" thread mounting arm with "O" ring seal & stainless steel screws
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Patents
The design of WPLED125 is protected by patents pending in US, Canada, China, Taiwan and Mexico
Optical
BUG Rating
B2 U0 G2
Sensor Settings
Operating Voltage
120-277V
Power Consumption
1W
0-10V Sinking Current
50mA
Adjustable High and Low Modes
High: 0-10V; Low: off, 0-9.8V
Adjustable Time Delay
Amount of time in high mode with no motion before switching to low mode: 5 min., 1 -30 min.
Adjustable Cut Off Delay
Time in which the fixture will remain on low mode with no motion before turning off and waiting for new motion to turn on: None, 1 -60 min., 1 -5 hrs.
Adjustable Sensitivy
None, low, medium, maximum
Adjustable Setpoint
None, 1 to 250 fc, auto
Operating Temperature
-40°F to 167°F (-40°C to +75°C)
Operating Humidity
20% to 90% noncondensing
Relay Life Rating
200,000 cycles (120/277VAC), 50,000 cycles (230VAC)
IP Rating
Ingress protection rating of IP66 for dust and water
UL Listed
Suitable for Wet Locations as factory installed
Handheld Wireless Configuration Tool
Adjust settings using handheld wireless configuration tool (catalog# WSREM). Only available with 0-10V dimming driver options. Handheld wireless configuration tool available here.
Multi Level Motion Sensor
*60 ft diameter coverage from 40 ft height.
