• High performance LED light engine
  • Maintains 70% of initial lumens at 100,000-hours
  • Weatherproof high temperature silicone gaskets
  • Superior heat sinking with die cast aluminum housing and external fins
  • Replaces 250W MH
  • Traditional wall pack look from the front
  • 3 cutoff options
  • 5-Year, No-Compromise Warranty
View Technical Specs
Performance
Watts 52W
Color Temp 4000K (Neutral)
Lumens 7,378 lm
Efficacy 127.2
Color Accuracy 75 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V
240V
277V
Input Watts 58W
Dimensions
Link to Dimension Drawing

Weight: 17.6 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P7X12SJT
LED Characteristics
LEDs
Two (2) multi-chip, high-output, long-life LEDs
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377.2011.
Electrical
Driver
Constant Current, Class 2, 480V, 50-60Hz, 480V: 0.34A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
13.94% at 480V
Power Factor
91.8% at 480V
Surge Protection
6kV
Photocell
480V Swivel photocell included. Photocell is only compatible with 480V.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-52 results and TM-21 calculations
Wattage Equivalency
Equivalent to 250W Metal Halide
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Thermal Management
Superior thermal management with external "Air-Flow" fins
Housing
Precision die-cast aluminum housing, lens frame
Arm
Die-cast aluminum with wiring access plate
Lens
Tempered glass
Reflector
Specular vacuum metallized polycarbonate
Gaskets
High-temperature silicone gaskets, including a wiring plug gasket, seal out moisture
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Die-cast aluminum wall bracket with (5) 1/2" conduit openings with plugs. Two-piece bracket with tether for ease of installation and wiring.
Other
Patents
The WPLED design is protected by patents in the U.S. Pat D653,377, Canada Pat. 142252, China Pat. ZL201130356930.8, and Mexico Pat. 36921 and pending patent in TW.
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Optical
BUG Rating
B1 U1 G3

Recently Viewed Products

 This is a link to the product WPLED52NW/480/PCS4 WPLED52NW/480/PCS4
Lpack Wallpack 52W Neutral Led 480V Pcs White
 This is a link to the product HALVS18L927-FG3-K/MVS HALVS18L927-FG3-K/MVS
Architectural 1305 Lumens Halvs Forward & Up/Down Light 25W 90Cri 2700K Frosted Lens With Grill Style 3 Black Finish Microwave Sensor
 This is a link to the product VAN1LED12YW VAN1LED12YW
Canopy Lights 1406 Lumens Vanled Vandalproof 12W 3K Led Ceiling Mount 6 Inches X 8 Inches
 This is a link to the product X34MW X34MW
65W/55W/45W Knuckle White 3000K/4000K/5000K Selectable

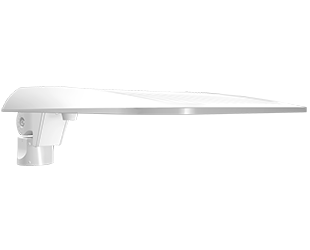

 This is a link to the product A34T3XLSFW/LCBS/MVS A34T3XLSFW/LCBS/MVS
