• High performance LED light engine
  • Maintains 70% of initial lumens at 100,000-hours
  • Weatherproof high temperature silicone gaskets
  • Superior heat sinking with die cast aluminum housing and external fins
  • Replaces 400W MH
  • 100 up to 277 Volts
  • 5-Year, No-Compromise Fixture Warranty and 10-Year, No-Compromise Lightcloud Warranty
  • Built in support Lightcloud™
  • Easy setup - simply power on, confirm device connectivity and call 844-LIGHTCLOUD
View Technical Specs
Performance
Watts 104W
Color Temp 3000K (Warm)
Lumens 13,630 lm
Efficacy 126.8
Color Accuracy 72 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.95A
208V 0.59A
240V 0.51A
277V 0.44A
Input Watts 107.5W
Dimensions
Link to Dimension Drawing

Weight: 26.0 lbs

Technical Specifications

Installed with Lightcloud

Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.

Learn More
Compliance
UL Listed
UL Suitable for Wet Locations as Uplight and Downlight Wall Mount Only
IP Rating
Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P000017AW
LED Characteristics
LEDs
Four multi-chip, high-output, long-life LEDs
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377.2011.
Electrical
Driver
Constant current, Class 1, 120-277V, 50/60 Hz, 4kV Surge Protection, 120V: 0.95A, 208V: 0.59A, 240V: 0.51A, 277V: 0.44A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
5.18% at 120V, 7.83% at 277V
Power Factor
99.7% at 120V, 92.2% at 277V
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Thermal Management
Superior thermal management with external "Air-Flow" fins
Housing
Precision die-cast aluminum housing, door frame arm and wall bracket
Mounting
Die-cast aluminum wall bracket with (5) 1/2" conduit openings with plugs. Two-piece bracket with tether for ease of installation and wiring.
Arm
Die-cast aluminum with wiring access plate
Cutoff
Cutoff (7.5°)
Lens
Tempered glass
Reflector
Specular vacuum metallized polycarbonate
Gaskets
High-temperature silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Other
Patents
The design of the WPLEDC104 is protected by patents pending in US, Canada, China, Taiwan and Mexico
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
Lightcloud

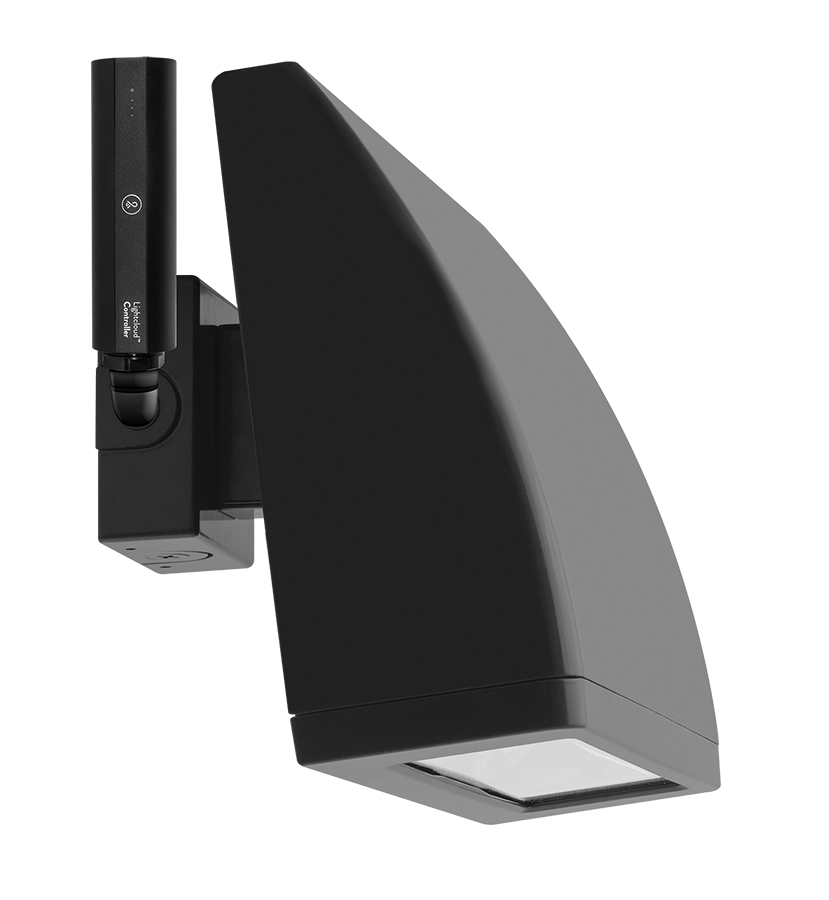

Lightcloud Controller Installed
Integrated/embedded networked lighting control, luminaire-level lighting control. Fixture, Zone, and plug-load control from one powerful device. LLLC - capable of switching, 0-10Vdimming, power/energy monitoring. Can also be used to extend the range of the Lightcloud mesh network communication protocols. Offers the capability to set the maximum light output to a less-than-maximum state of an individual luminaire at the time of installation or commissioning. The High-End trim functionality is field reconfigurable via the Lightcloud mesh network communication protocols. The Lightcloud controller can be attached to the fixture, junction box, or electrical panel.
DLC system - NHCZ2BIA17L
Learn more about Lightcloud.
Optical
BUG Rating
B1 U2 G2
