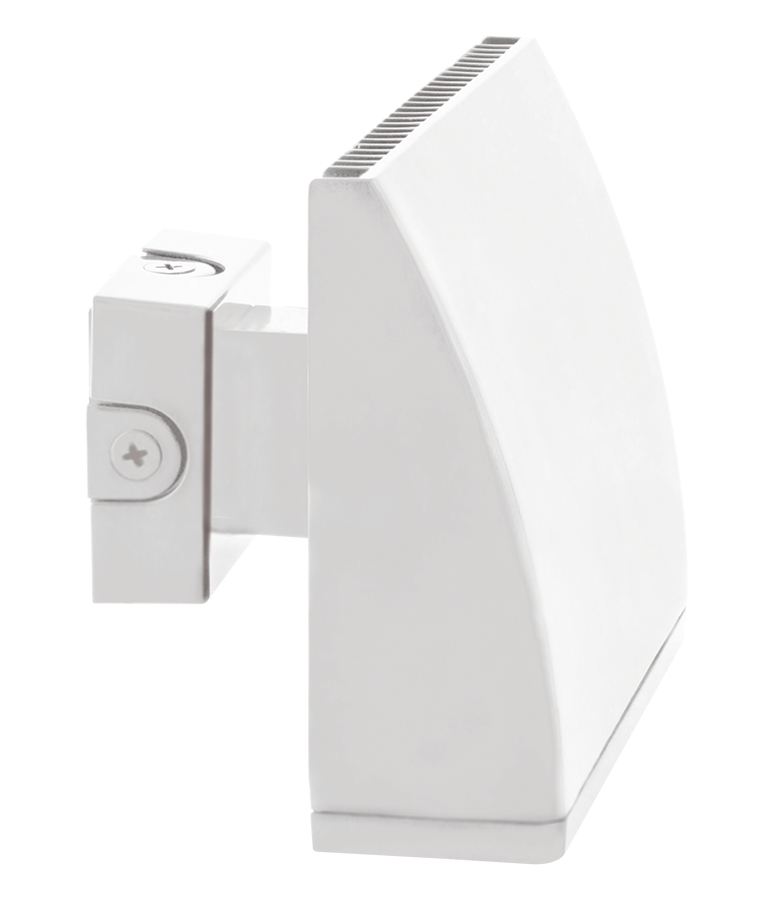

WPLEDFC80NW/480/PCS4
WPLEDFC80NW/480/PCS4
- High performance LED light engine
- Maintains 70% of initial lumens at 100,000-hours
- Weatherproof high temperature silicone gaskets
- Superior heat sinking with die cast aluminum housing and external fins
- Traditional wall pack look from the front
- 3 cutoff options
- 5-Year, No-Compromise Warranty
Performance
| Watts | 80W |
| Color Temp | 4000K (Neutral) |
| Lumens | 9,977 lm |
| Efficacy | 119.5 |
| Color Accuracy | 75 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 83.5W |
Dimensions
Weight: 17.6 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PGPMJEBT
DLC Product Code: PGPMJEBT
LED Characteristics
LEDs
Two (2) multi-chip, high-output, long-life LEDs
Electrical
Driver
Constant Current, Class 2, 480V, 50-60Hz
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
9.93% at 480V
Power Factor
89.5% at 480V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
