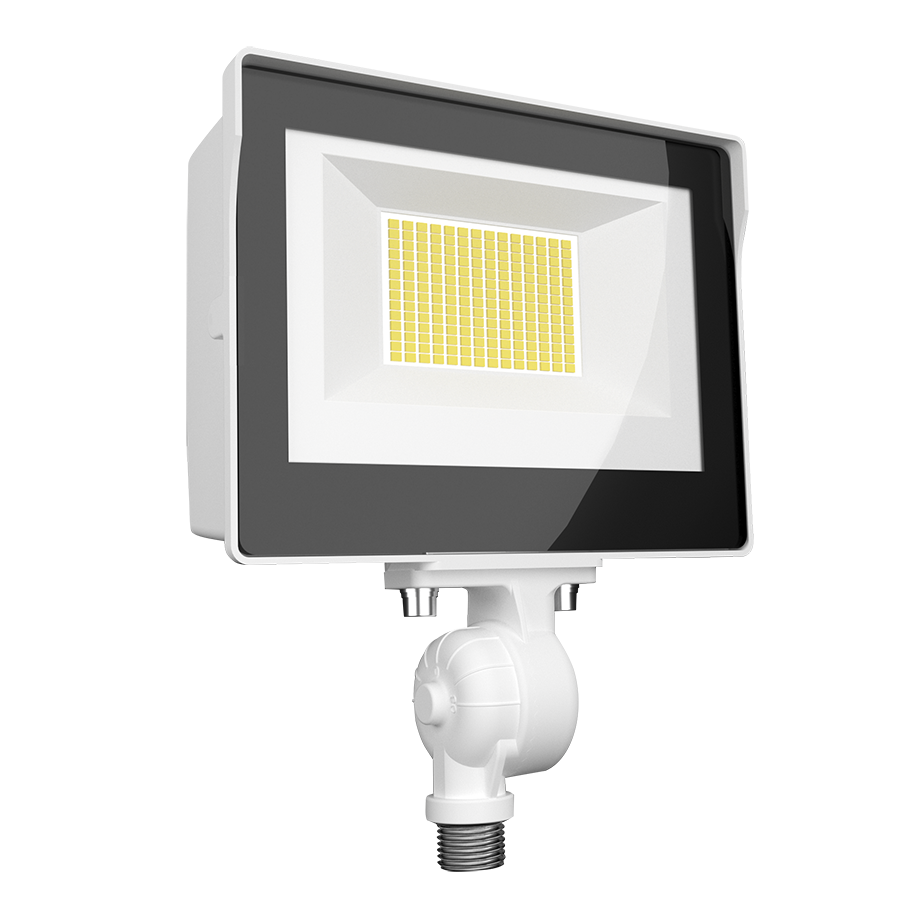

X17FA35W

35W 3000/4000/5000K

DLC Premium listed

IP65 Rated

100,000-Hour LED lifespan

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	35W
Color Temp	3000/4000/5000K
Lumens	4,846/5,031/4,966 lm
Efficacy	137.9/148.1/141.2 lm/W
Color Accuracy	82/83/81 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.28A
208V	0.16A
240V	0.14A
277V	0.12A
Input Watts	35.15/33.97/35.18W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 2.7 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Color temperature selectable by 3000K, 4000K and 5000K

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Electrical

Driver

Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 0.28A, 208V: 0.16A, 240V: 0.14A, 277V: 0.12A

Dimming Driver

Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.

THD

10.33% at 120V, 10.63% at 277V

Power Factor

99.7% at 120V, 93% at 277V

Photocell

120-277V selectable photocell that can be turned on and off.

Surge Protection

6 kV

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Housing

Precision die-cast aluminum

Lens

Tempered glass

Reflector

Polycarbonate

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Robust knuckle mount with 180° adjustable swivel arm. Tilt angle in 10° increments.

Optical

NEMA Type

NEMA Beam Spread 7H x 7V

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Performance

Wattage Equivalency

Equivalent to 150W Metal Halide
