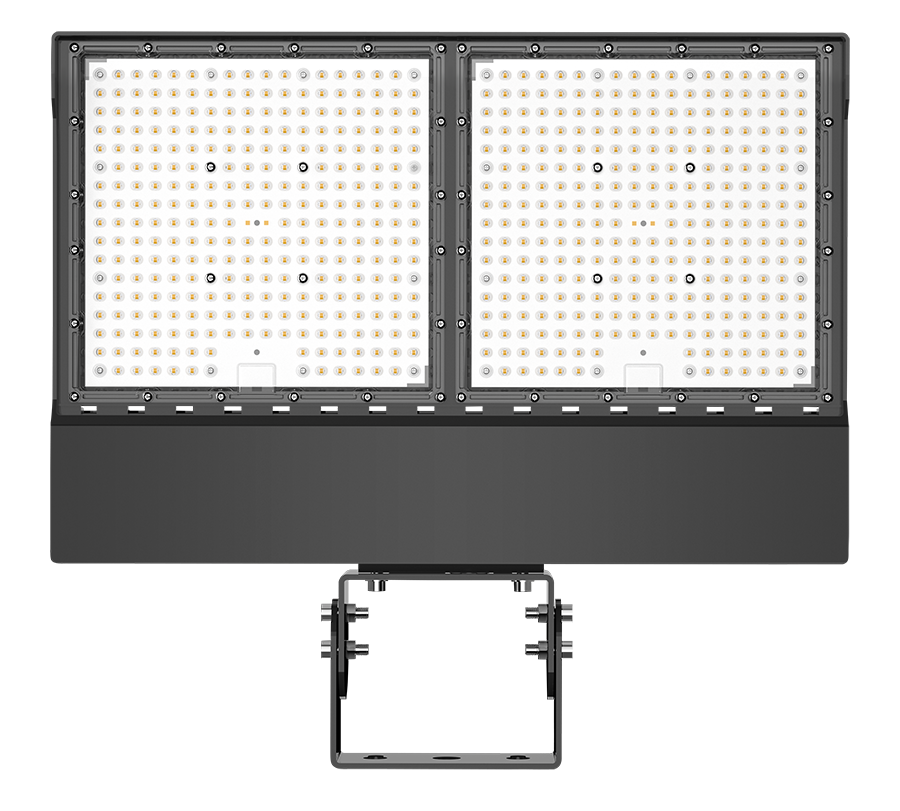

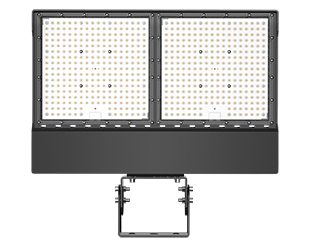

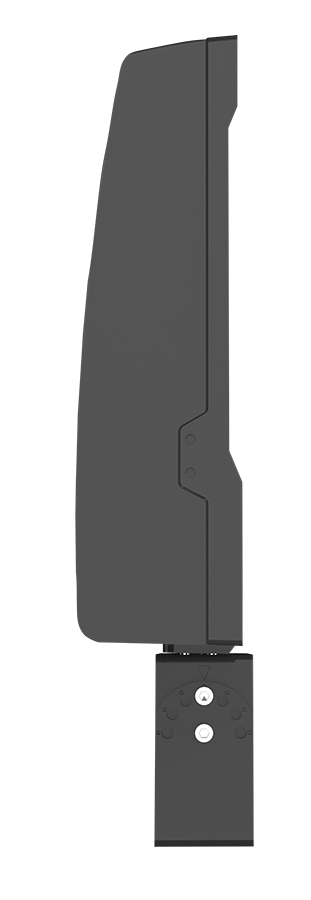

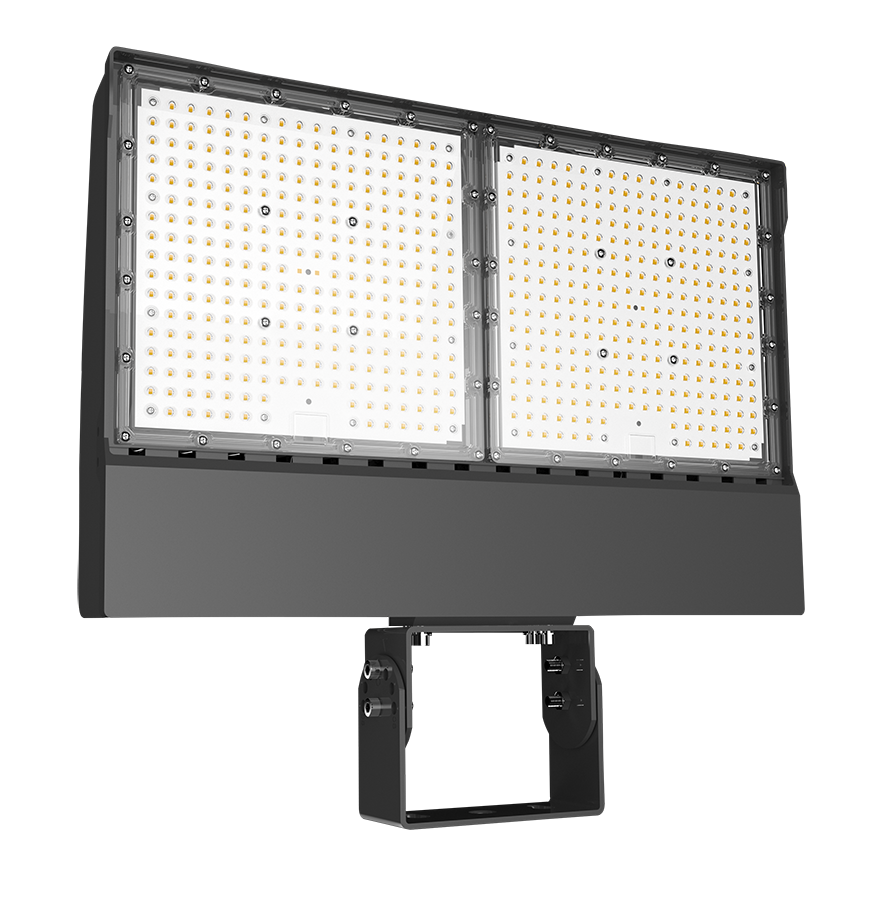

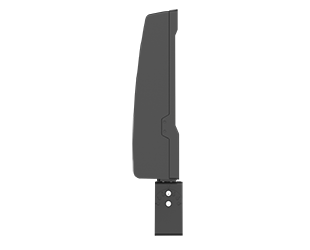

X17PA450T/PCT
Performance
| Watts | 450W |
| Color Temp | 5000K (Cool) |
| Lumens | 66,638/53,853/41,700 lm |
| Efficacy | 146.5/152.7/163.7 lm/W |
| Color Accuracy | 83/81/82 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 3.79A |
| 208V | 2.19A |
| 240V | 1.90A |
| 277V | 1.64A |
| Input Watts | 454.87/352.74/254.69W |
Dimensions
Weight: 28.1 lbs
Technical Specifications
Field Adjustability
Power Adjustable
Field adjustable light output in 3 discrete steps:
450/350/250W (factory default 450W)
450/350/250W (factory default 450W)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
Electrical
Driver
450W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 3.79A, 208V: 2.19A, 240V: 1.90A, 277V: 1.64A
350W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 2.94A, 208V: 1.70A, 240V: 1.47A, 277V: 1.27A
250W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 2.12A, 208V: 1.22A, 240V: 1.06A, 277V: 0.92A
350W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 2.94A, 208V: 1.70A, 240V: 1.47A, 277V: 1.27A
250W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 2.12A, 208V: 1.22A, 240V: 1.06A, 277V: 0.92A
Dimming Driver
Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.
THD
3.42% at 120V, 10.25% at 277V
Power Factor
99.9% at 120V, 96.5% at 277V
Photocell
120-277V Twistlock photocell included. Photocell is compatible with 120-277V.
Surge Protection
CM: 10 kV
DM: 6 kV
DM: 6 kV
Shorting Cap
Shorting Cap included for Twistlock Receptacle
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Precision die-cast aluminum
Lens
Tempered glass
Reflector
Polycarbonate
Tilt Increment
Rotates in 30 degree increments
Effective Projected Area
EPA = 2.4
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Optical
NEMA Type
NEMA Beam Spread 7H x 6V
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Performance
Wattage Equivalency
Equivalent to 1,500W Metal Halide
