X22-500

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

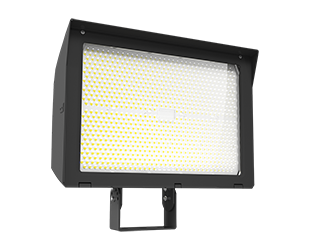

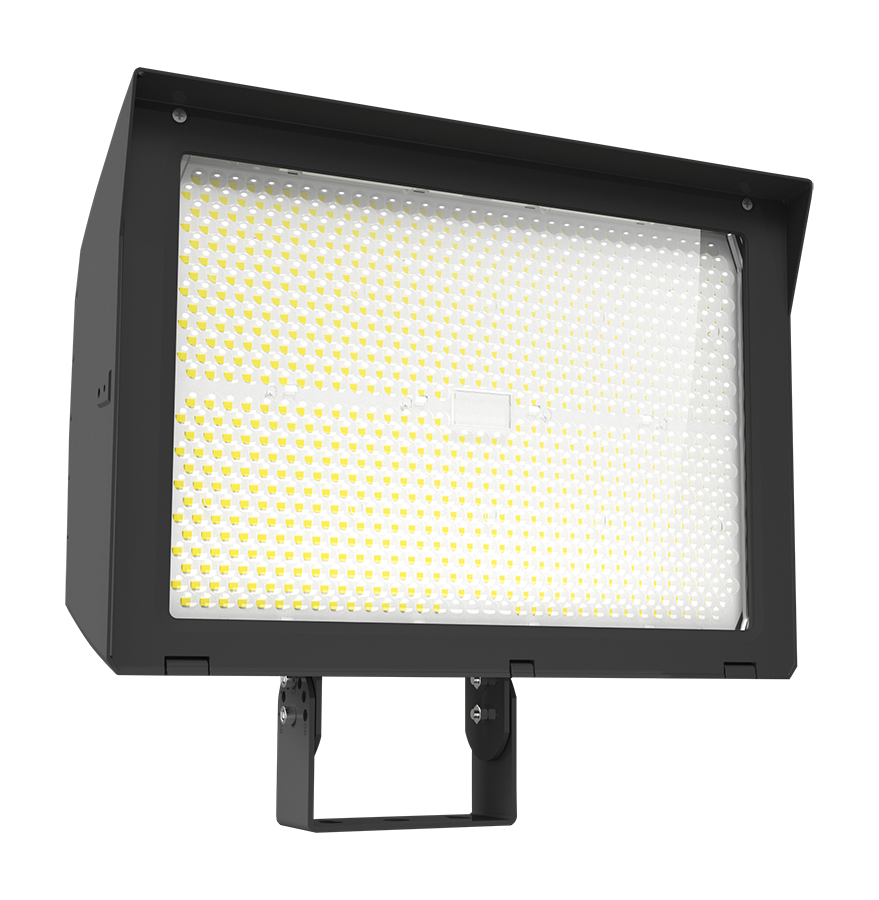

X22-500

500W 3000/4000/5000K

DLC Premium listed

IP65 Rated

100,000-Hour LED lifespan

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	500/450/420/380W
Color Temp	3000/4000/5000K
Lumens	53,877-74,093 lm
Efficacy	132.3-157.8 lm/W
Color Accuracy	82-83 CRI
L70 Lifespan	100,000 Hours

Type	Constant
120V	4.23A
208V	2.45A
240V	2.12A
277V	1.87A
Input Watts	373.7-496.2W

EZ-Layout

Create Custom Lighting Layout

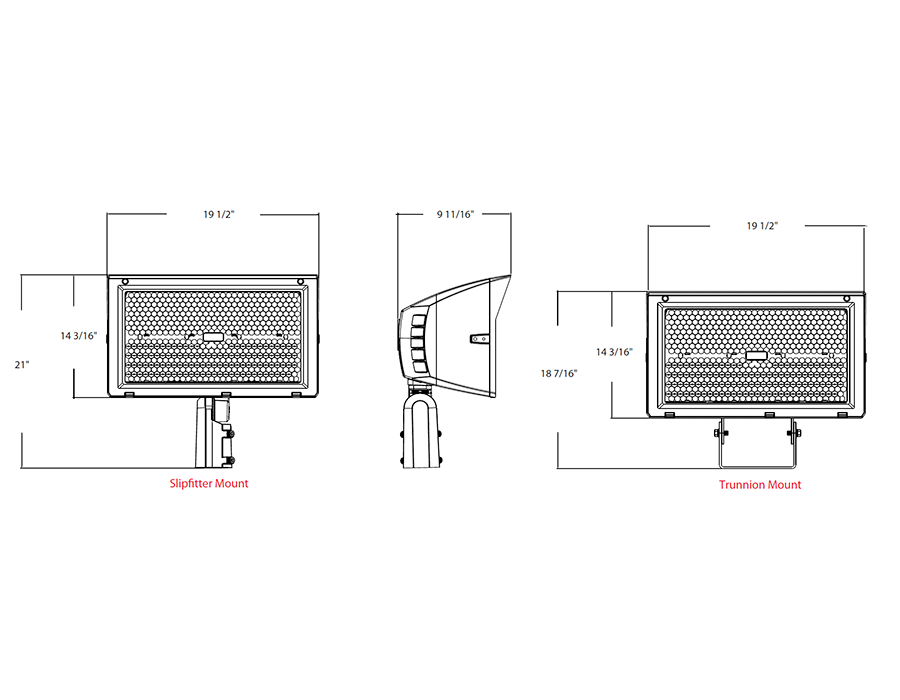

Dimensions

Weight: 32.9 lbs

Technical Specifications

Field Adjustability

Optical Field Adjustability

90°, 75° and 55°

Field Adjustable

Field Adjustable Light Output:
500W/460W/420W/380W (factory default 500W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-RPXWQ1

Electrical

Driver

500W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 4.23A, 208V: 2.45A, 240V: 2.12A, 277V: 1.87A

450W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 3.85A, 208V: 2.18A, 240V: 1.90A, 277V: 1.67A

420W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 3.43A, 208V: 2.02A, 240V: 1.74A, 277V: 1.54A

380W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 3.11A, 208V: 1.83A, 240V: 1.59A, 277V: 1.41A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

2.86% at 120V, 4.99% at 277V

Power Factor

99.9% at 120V, 97.2% at 277V

Surge Protection

L/N-PE: 2.5kV, L-N: 2.5kV

Photocell

120V-277V Twistlock photocell included

Shorting Cap

Shorting Cap included for Twistlock Receptacle

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Color Consistency

3000K & 5000K: 5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
4000K: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Performance Data

Click here for the X22-500 performance data

Wattage Equivalency

500W: Replaces up to 2000W Metal Halide (MH) or 1500W High Pressure Sodium (HPS)

450W: Replaces up to 2000W Metal Halide (MH) or 1500W High Pressure Sodium (HPS)

420W: Replaces up to 2000W Metal Halide (MH) or 1500W High Pressure Sodium (HPS)

380W: Replaces up to 1500W Metal Halide (MH) or 1000W High Pressure Sodium

Construction

Cold Weather Starting

The minimum starting temperature is -30°C (-22°F)

Maximum Ambient Temperature

Suitable for use in up to 50°C (122°F)

Housing

Die-cast aluminum

Lens

Tempered glass

Effective Projected Area

1 Fixture: 1.142 ft²
2 Fixtures at 90°: 2.712 ft²
2 Fixtures at 180°: 2.285 ft²
3 Fixtures at 90°: 3.854 ft²
4 Fixtures at 90°: 3.854 ft²

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

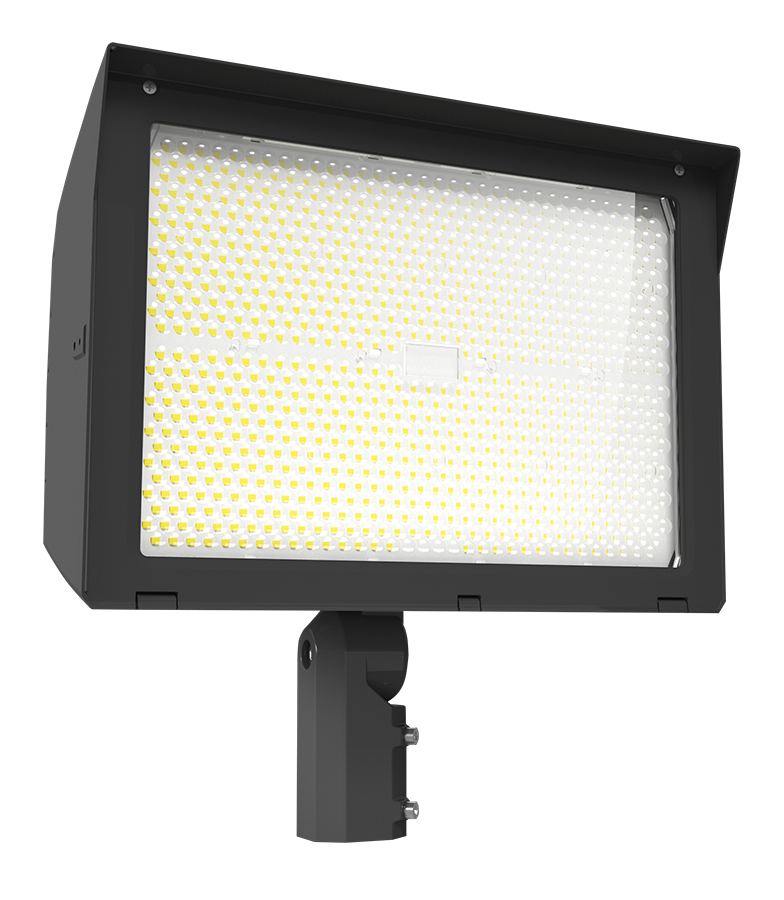

Mounting

Slipfitter with tilt angle in 10° increments. Trunnion kit is included.

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
