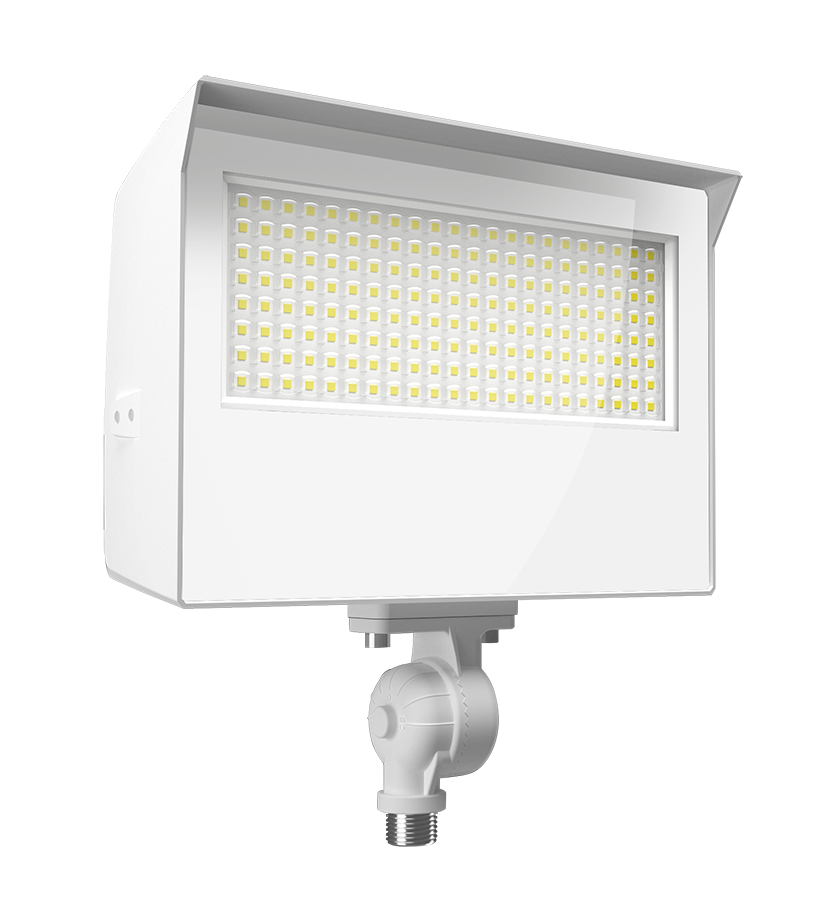

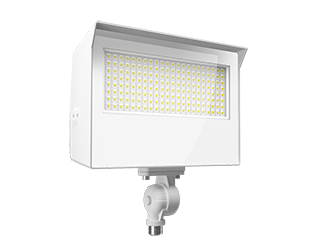

X22-80W
80W 3000/4000/5000K
- DLC Premium listed
- IP65 Rated
- 100,000-Hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 80/70/60/50W |
| Color Temp | 3000/4000/5000K |
| Lumens | 7,193-12,772 lm |
| Efficacy | 127.6-171 lm/W |
| Color Accuracy | 81-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant |
| 120V | 0.66A |
| 208V | 0.40A |
| 240V | 0.35A |
| 277V | 0.32A |
| Input Watts | 50.5-83W |
Dimensions
Weight: 5.5 lbs
Technical Specifications
Field Adjustability
Optical Field Adjustability
90°, 75° and 55°
Field Adjustable
Field Adjustable Light Output:
80W/70W/60W/50W (factory default 80W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
80W/70W/60W/50W (factory default 80W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-HDQRO9
DLC Product Code: S-HDQRO9
Electrical
Driver
80W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 0.66A, 208V: 0.40A, 240V: 0.35A, 277V: 0.32A
70W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 0.58A, 208V: 0.35A, 240V: 0.31A, 277V: 0.28A
60W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 0.51A, 208V: 0.31A, 240V: 0.28A, 277V: 0.26A
50W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 0.44A, 208V: 0.26A, 240V: 0.24A, 277V: 0.22A
120V: 0.66A, 208V: 0.40A, 240V: 0.35A, 277V: 0.32A
70W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 0.58A, 208V: 0.35A, 240V: 0.31A, 277V: 0.28A
60W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 0.51A, 208V: 0.31A, 240V: 0.28A, 277V: 0.26A
50W: Class 1, Constant Current, 120-277V, 50/60 Hz,
120V: 0.44A, 208V: 0.26A, 240V: 0.24A, 277V: 0.22A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
8.71% at 120V, 5.57% at 277V
Power Factor
88.9% at 120V, 99.4% at 277V
Surge Protection
L/N-PE: 6kV, L-N: 6kV
Photocell
Integrated photocell included with on/off switch
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Color Consistency
3000K & 5000K: 5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
4000K: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
4000K: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Performance Data
Construction
Cold Weather Starting
The minimum starting temperature is -30°C (-22°F)
Maximum Ambient Temperature
Suitable for use in up to 50°C (122°F)
Housing
Die-cast aluminum
Lens
Tempered glass
Effective Projected Area
1 Fixture: 0.249 ft²
2 Fixtures at 90°: 0.587 ft²
2 Fixtures at 180°: 0.498 ft²
3 Fixtures at 90°: 0.836 ft²
4 Fixtures at 90°: 0.836 ft²
2 Fixtures at 90°: 0.587 ft²
2 Fixtures at 180°: 0.498 ft²
3 Fixtures at 90°: 0.836 ft²
4 Fixtures at 90°: 0.836 ft²
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Robust knuckle mount with 180° adjustable swivel arm. Tilt angle in 10° increments. Trunnion kit is included.
Other
5 Yr Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
