X34-100LSF-840W/U

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

X34-100LSF-840W/U

Versatile, general-purpose floodlight

7H x 7V NEMA distribution

0-10V dimming

IP65 rating protects against dust and water

50,000-Hour LED lifespan

View Technical Specs

View Price & Availability

Performance

Watts	87W
Color Temp	4000K (Neutral)
Lumens	11,533 lm
Efficacy	128.3 lm/W
Color Accuracy	82 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.74A
208V	0.42A
240V	0.37A
277V	0.34A
Input Watts	89.9W

EZ-Layout

Create Custom Lighting Layout

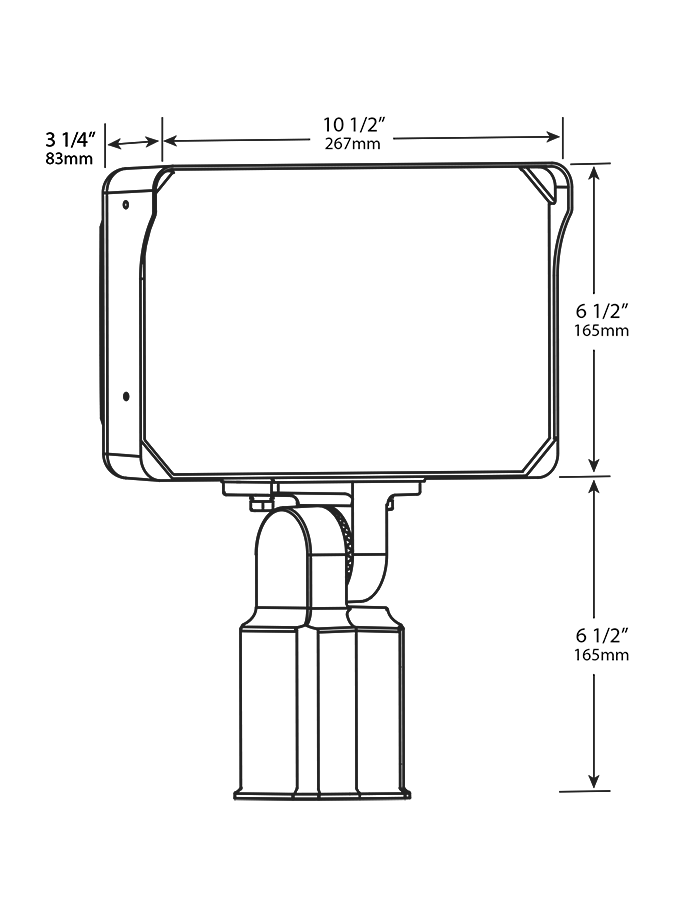

Dimensions

Weight: 7.3 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for ground mounting.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Electrical

Driver

Constant Current, 120-277V, 50/60 Hz, 120V: 0.74A, 208V: 0.42A, 240V: 0.37A, 277V: 0.34A

Dimming Driver

Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.

THD

3.36% at 120V, 4.56% at 277V

Power Factor

99.7% at 120V, 96.2% at 277V

Optical

NEMA Type

NEMA Beam Spread 7H x 7V
