X34-150LSF-830W/U

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

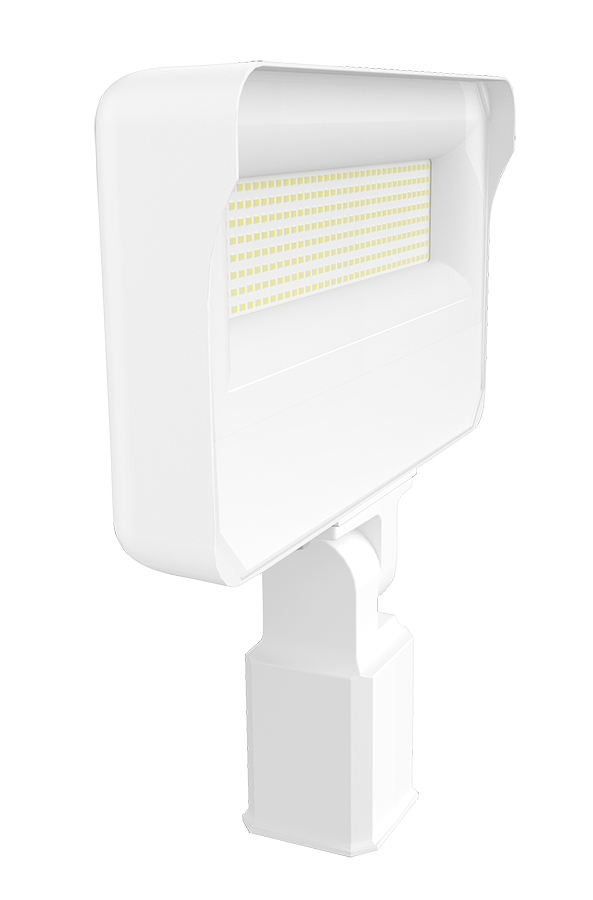

X34-150LSF-830W/U

Versatile, general-purpose floodlight

7H x 7V NEMA distribution

0-10V dimming

IP65 rating protects against dust and water

50,000-Hour LED lifespan

View Technical Specs

View Price & Availability

Performance

Watts	130W
Color Temp	3000K (Warm)
Lumens	17,387 lm
Efficacy	129 lm/W
Color Accuracy	82 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	1.12A
208V	0.63A
240V	0.55A
277V	0.51A
Input Watts	134.8W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 10.1 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for ground mounting.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PZTACHRP

Electrical

Driver

Constant Current, 120-277V, 50/60 Hz, 120V: 1.12A, 208V: 0.63A, 240V: 0.55A, 277V: 0.51A

Dimming Driver

Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.

THD

4.36% at 120V, 8.77% at 277V

Power Factor

99.8% at 120V, 99.7% at 277V

Optical

NEMA Type

NEMA Beam Spread 7H x 7V

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

EPA

1.2

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Housing

Precision die-cast aluminum

Lens

Tempered glass

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Tilt Increment

Rotates in 6 degree increments

Performance

Lifespan

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Installation

Mounting

Slipfitter with tilt angle in 10° increments

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
