X34-35L/277

Spec Sheet Instructions Spec Sheet

X34-35L/277

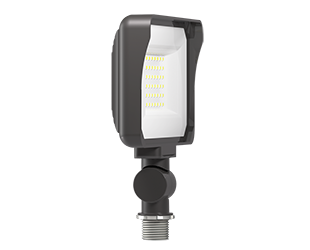

General purpose floodlight

Very wide 7H x 7V NEMA distribution

Low profile and lightweight

IP65 rating protects against dust and water

View Technical Specs

View Price & Availability

Performance

Watts	35W
Color Temp	5000K (Cool)
Lumens	4,396 lm
Efficacy	127.1 lm/W
Color Accuracy	81 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V
208V
240V
277V	0.14A
Input Watts	34.6W

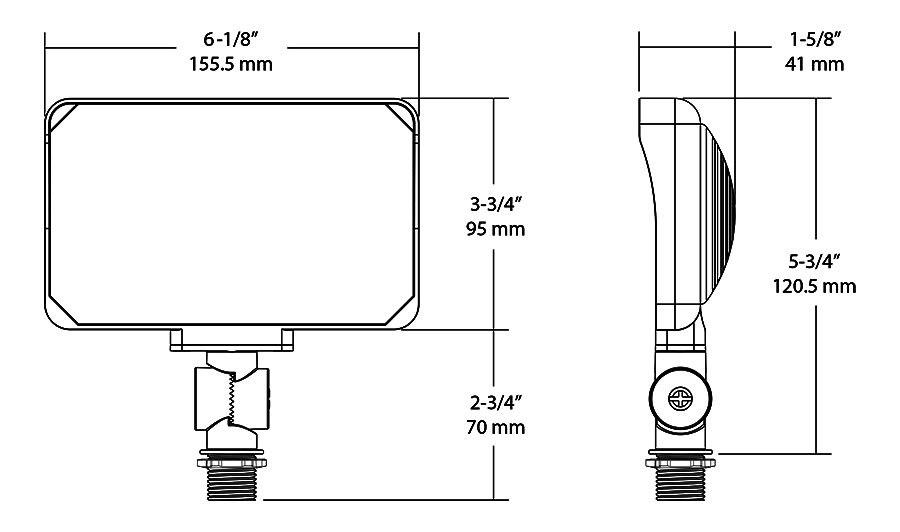

Dimensions

Weight: 1.4 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for ground mounting.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PMO69F0P

Electrical

Driver

Constant Current, 277V, 60 Hz, 277V: 0.14A

THD

13.05% at 277V

Power Factor

99.2% at 277V

Stepped Dimming

Integrated/embedded reverse Phase-Cut stepped luminance-level dimming control. Ten discrete dimming steps plus off and full on are accomplished by modification of the voltage, current, and wave form to produce varying light output. Controller is remote located from fixture or junction box, or can be located by the electrical panel.

Surge Protection

2kV

Optical

NEMA Type

NEMA Beam Spread of 7H x 7V

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 150W Metal Halide

Other

Note

All values are typical (tolerance +/- 10%)

5 Yr Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Construction

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Housing

Die-cast aluminum

Mounting

Robust knuckle mount with 180° adjustable swivel arm. Tilt angle in 10° increments.

Lens

Tempered glass

Finish
