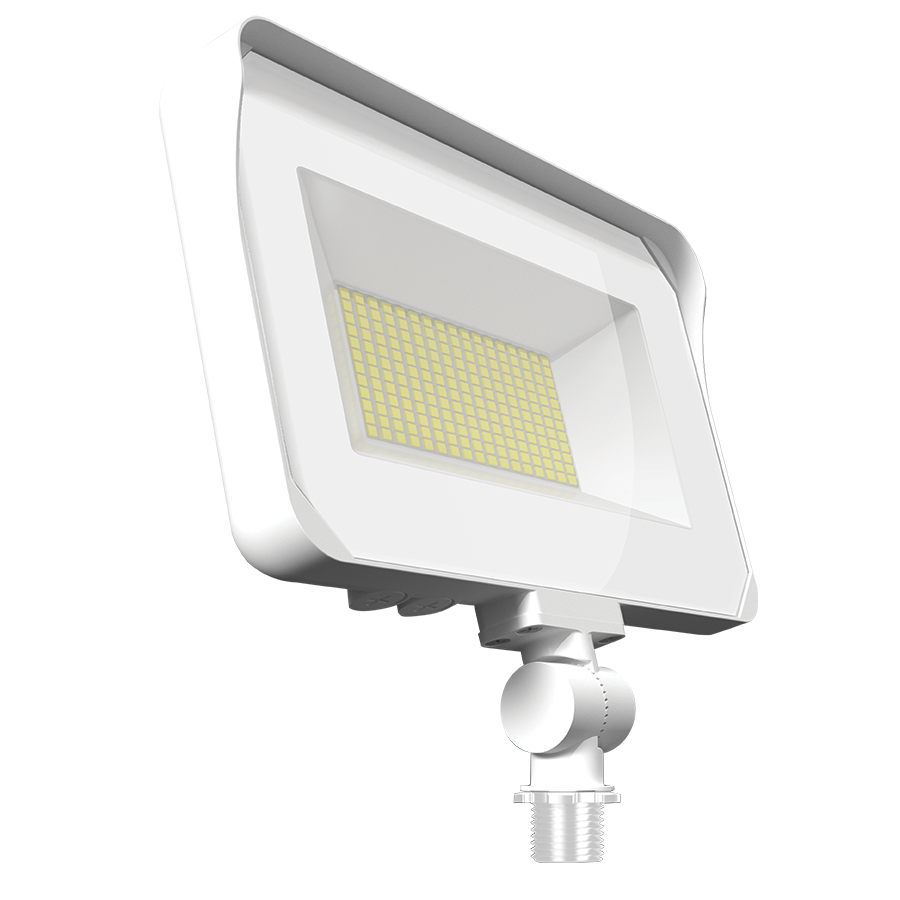

X34MW/RGB

Spec Sheet IES File LM79 Instructions Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet EZ Layout

X34MW/RGB

100,000-Hour LED lifespan

IP65 Rated

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	60W
Color Temp	2200K-6500K
Lumens	7,200 lm
Efficacy	120
Color Accuracy	80 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.50A
208V	0.29A
240V	0.25A
277V	0.22A
Input Watts	60W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 2.7 lbs

Technical Specifications

Lightcloud

Lightcloud Blue

Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.

DLC system - Interior: N1XMLOEATBA; Exterior: NHCZ2BIA17L

Learn more at www.lightcloud.com.

Gateway Required

Communication Protocol

Bluetooth Mesh

Range

Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.

Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners

Spacing Criteria

Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.

SmartShift

SmartShift is the most advanced - yet easiest to use - circadian lighting system, which syncs white color tuning with the local sunrise and sunset.
Requires the NANO/LCB (sold separately)

Performance

Product Type

Floodlight

Description

Ultra economy without compromise. The X34 is a field-adjustable, general-purpose flood offering output from 1,400 to over 24,000 lumens!

Input Wattage

60W

Lumens

7,200lm

Measured Lumens

3,932lm @ 6500K; 7,429lm @ 2700K; 7,624lm @ 3000K; 8,110lm @ 4000K; 8,131lm @ 5000K

Efficacy

120lm/W

L70 Lifespan

100,000-Hour LED lifespan based on IES LM-70 results

Electrical

THD

<20%

Power Factor

>0.9

Dimmable

Yes, via the Lightcloud Blue mobile app and devices.
This lamp will not operate properly when connected to a standard (incandescent) dimmer or dimming control.

Input Voltage

120-277V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

500mA

Input Current @ 208V (mA)

290mA

Input Current @ 240V (mA)

250mA

Input Current @ 277V (mA)

220mA

Operating Temperature

-40°F to 104°F (-40°C to -40°C)

Flicker

<30%

Surge Protection

2kV

LED Characteristics

Beam Angle

105X90°

Color Temperature

Default: 3000K
Adjustable using the Lightcloud Blue mobile app
Tunable White 2200K - 6500K
16+ million RGB colors

Color Accuracy (CRI)

80 CRI

R9 Value

High color performance with R9 no greater than 3

Color Consistency

<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Mounting

Slipfitter

Construction

Shape

Square

Finish

White

Enclosure Material

Metal

Lens

Glass

Compliance

Listings

UL Listed, UL Recognized

UL Listed

Suitable for wet locations. Suitable for mounting within 4 ft of the ground.

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

Fixture Rating

Suitable for use in enclosed fixtures.
Suitable for use in open fixtures.

IP Rating

IP65

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

5 Yr Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
