XDIMLA/LCB

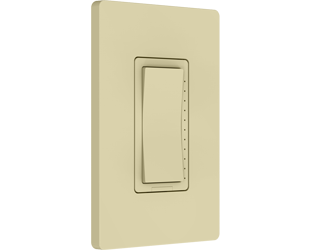

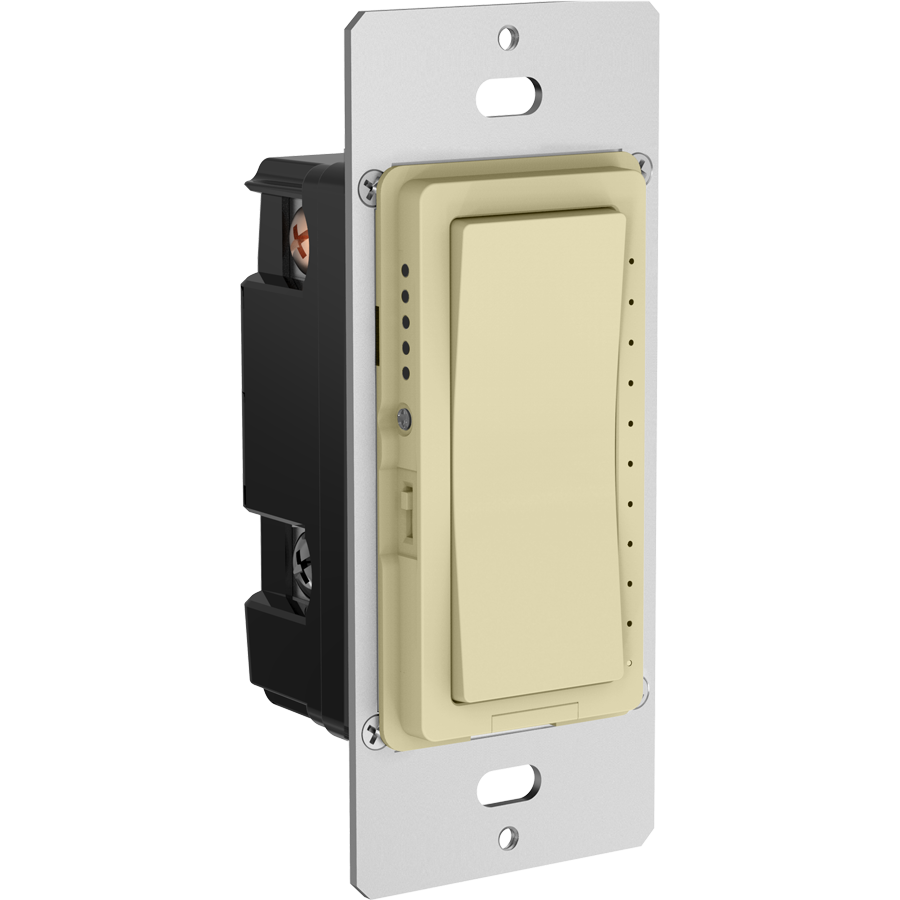

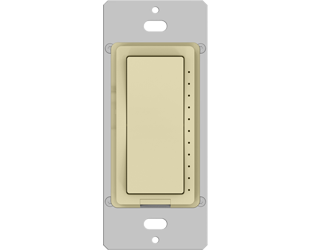

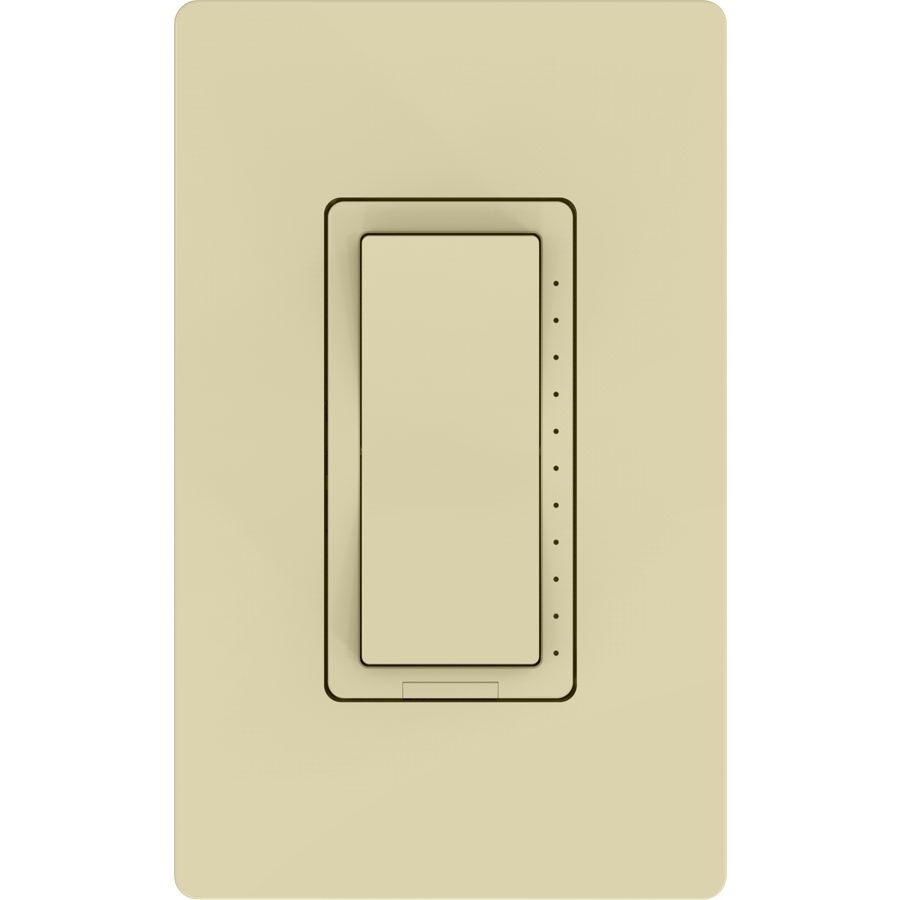

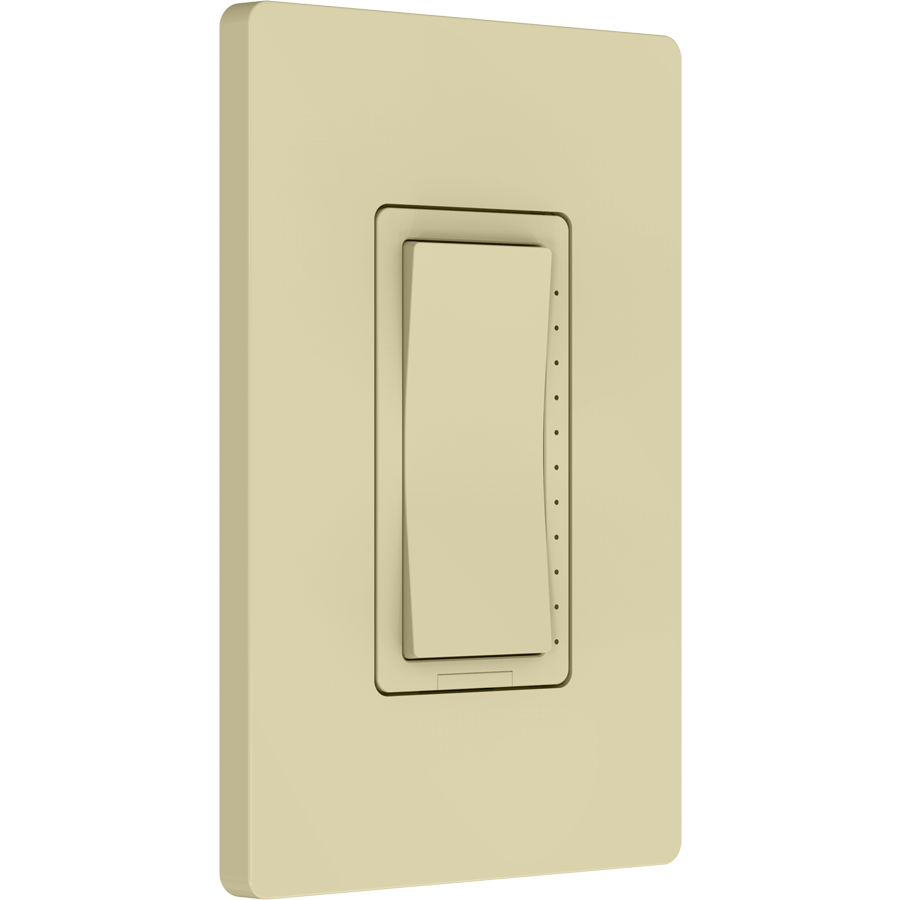

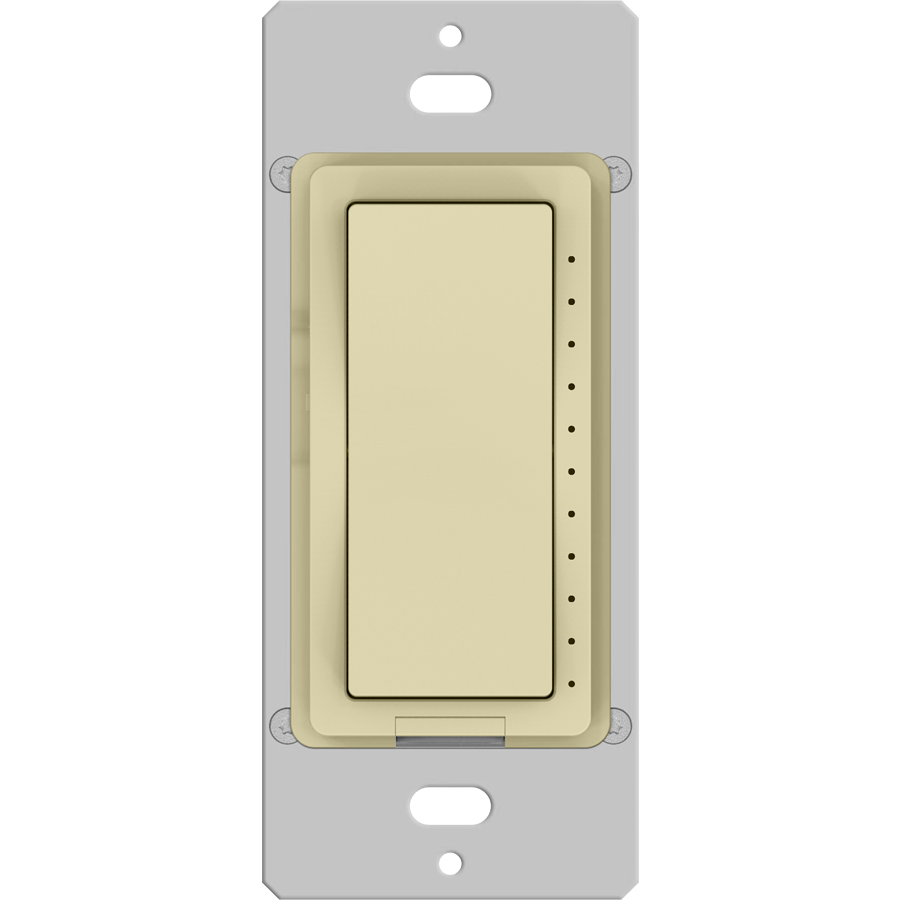

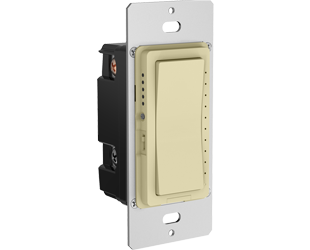

In-wall device for switching and dimming local load (ELV/MLV) and any Lightcloud Blue-enabled device

Dimming features both fade on/off and rapid full-on

Set the max trim level for a zone or fixture to save energy

Connect to the Lightcloud Blue mobile app to wireless control

Neutral wire connection is optional

View Technical Specs

View Price & Availability

Dimensions

Weight: 0.4 lbs

Technical Specifications

Lightcloud

Lightcloud Blue

Lightcloud Blue is a Bluetooth® Mesh lighting control system designed for fast setup and flexibility. Install quickly with no gateways, hubs, or additional control wiring. Start with a single device and easily scale to control entire buildings.
Learn more at rablighting.com/lcb.

DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

Gateway Required

Communication Protocol

Bluetooth Mesh

Range

Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.

Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners.

Spacing Criteria

Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.

Max # of Devices to Control

Up to 200 devices

Status Indicator Light

Flashing red (1s on/1s off): Device is not provisioned
Solid green: Device is provisioned

Performance

Product Type

Smart Dimmer

Description

The most versatile in-wall dimmer for switching and dimming with or without a connected load.

Application Type

Single-pole. Combine with multiple Dimmers for wireless control, no traveller wires required.

Electrical

Dimming Control Type

Selectable Phase: Forward/Reverse

Power Rating

500W

Load Switching Capactiy

LED/CFL: 300W
INC/HAL/ELV: 500W
MLV: 400VA

Multi-gang Derating

When combining controls in the same wallbox, derating is required.
LED/CFL
Not Ganged: 300W max load
End of Gang: 250W max load
Middle of Gang: 200W max load
INC/HAL/ELV/MLV
Not Ganged: 500W max load
End of Gang: 400W max load
Middle of Gang: 300W max load

Self Calibration

Via dip switch choose a self calibration option based on the fixtures being controlled:
F - Forward Phase
A - Auto Detect Forward/Reverse Phase
R - Reverse Phase

Note: after dip switch adjustment, power device off and then power on again.

Power Cut Off Switch

Push in to connect to line voltage.
Pull out to disconnect to line voltage.
Note: after dip switch adjustment, power device off and then power on again.

Input Voltage

120V

Operating Frequency

60 Hz

Operating Temperature

32°F to 104°F (0°C to 40°C)

Installation

Mounting

Requires a U.S. wallbox with 2 inch depth (recommended) and a minimum depth of 1.46 inches. For use in single or multi-gang applications.

Neutral Wire Required

Optional when connected to a load with non-Lightcloud Blue lights.

Required when using to control Lightcloud Blue lights.

Power usage can only be reported when neutral-wire is connected.

Construction

Shape

Rectangle

Finish

Light Almond

Enclosure Material

Plastic

Key Type

Paddle

Package Includes

(1) Dimmer
(1) Face plate bracket
(1) Back plate
(2) Mounting screws

Compliance

Listings

UL 1472

Environment

Suitable for use indoors in dry and damp environments.

DLC NLC Listed

This product is on the Design Lights Consortium (DLC) Network Lighting Controls (NLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

Certification Model Number

XDIM/LCB

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Products

TRIAC/ELV forward/reverse phase dimmable products.

3-Year Limited Warranty

The RAB 3-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty
