YBLED60Y/PCT

Spec Sheet IES File LM79 Spec Sheet EZ Layout

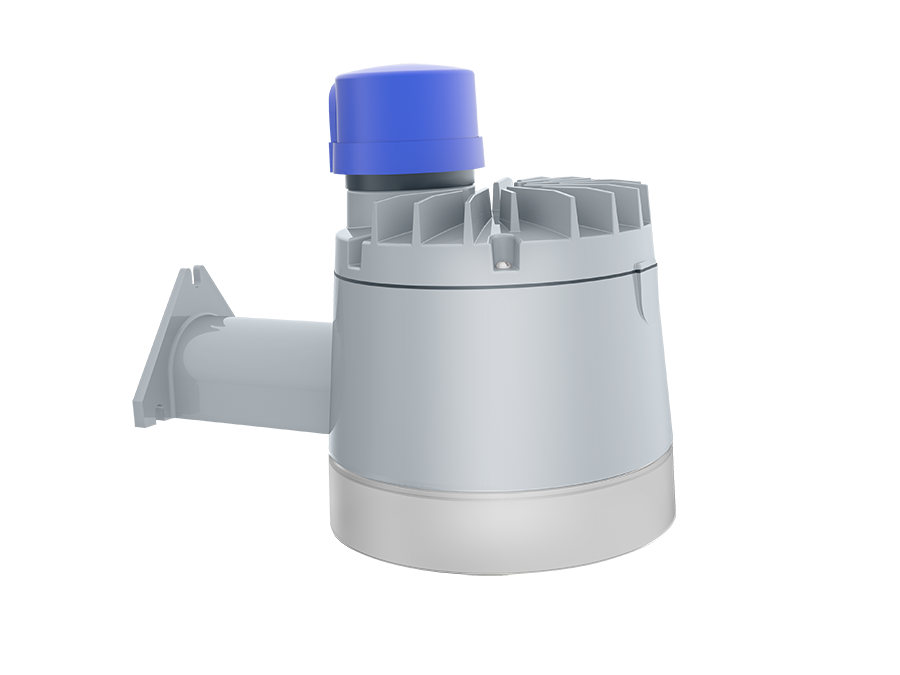

YBLED60Y/PCT

Widespread light distribution illuminates large areas

Vandal-resistant

High-impact polycarbonate lens

Rugged die-cast aluminum housing withstands harsh environments

Integrated dusk to dawn photocell

100,000-hour LED lifespan

View Technical Specs

View Price & Availability

Performance

Watts	60W
Color Temp	3000K (Warm)
Lumens	7,340 lm
Efficacy	132.3 lm/W
Color Accuracy	72 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.52A
208V	0.30A
240V	0.26A
277V	0.22A
Input Watts	55.5W

EZ-Layout

Create Custom Lighting Layout

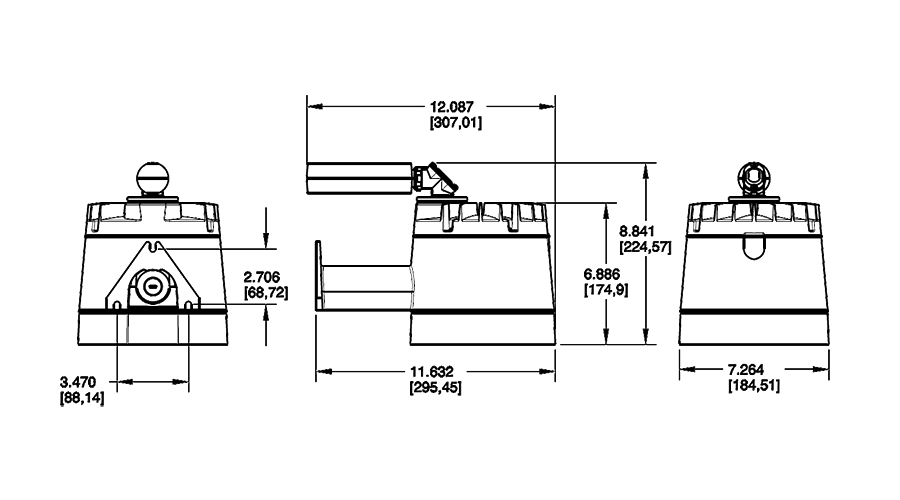

Dimensions

Weight: 8.6 lbs

Technical Specifications

Compliance

UL Listed

Suitable for dry and wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP66 for dust and water

Electrical

Driver

Constant Current, Class 2, 120V-277V, 50/60 Hz, 950mA, 120V: 0.6A, 208V: 0.321A, 240V: 0.278A, 277V: 0.223

THD

9.3% at 120V, 8.5% at 277V

Power Factor

99.5% at 120V, 90% at 277V

Surge Protection

4 kV Line-Line, 6 kV Line-Earth

Photocell

120-277V Twistlock photocell included. Photocell is compatible with 120-277V.

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 200 HPS

Construction

IES Classification

The Type V distribution produces light in a wide and uniform 360° pattern that is perfect for large outdoor areas such as parking lots, corporate parks and retail settings

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Housing

Precision die-cast aluminum housing and arm

Reflector

High-reflectance white paint

Lens

Flat polycarbonate lens

Gaskets

High-temperature silicone

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Optical

BUG Rating

B2 U3 G2

Installation

Mounting

Mounts on wall or existing arm/pole YARM24 (1 5/8" diameter pipe)

Other

Patents

The design of YBLED26 is protected by patents pending in US, Canada, China, Taiwan and Mexico

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
