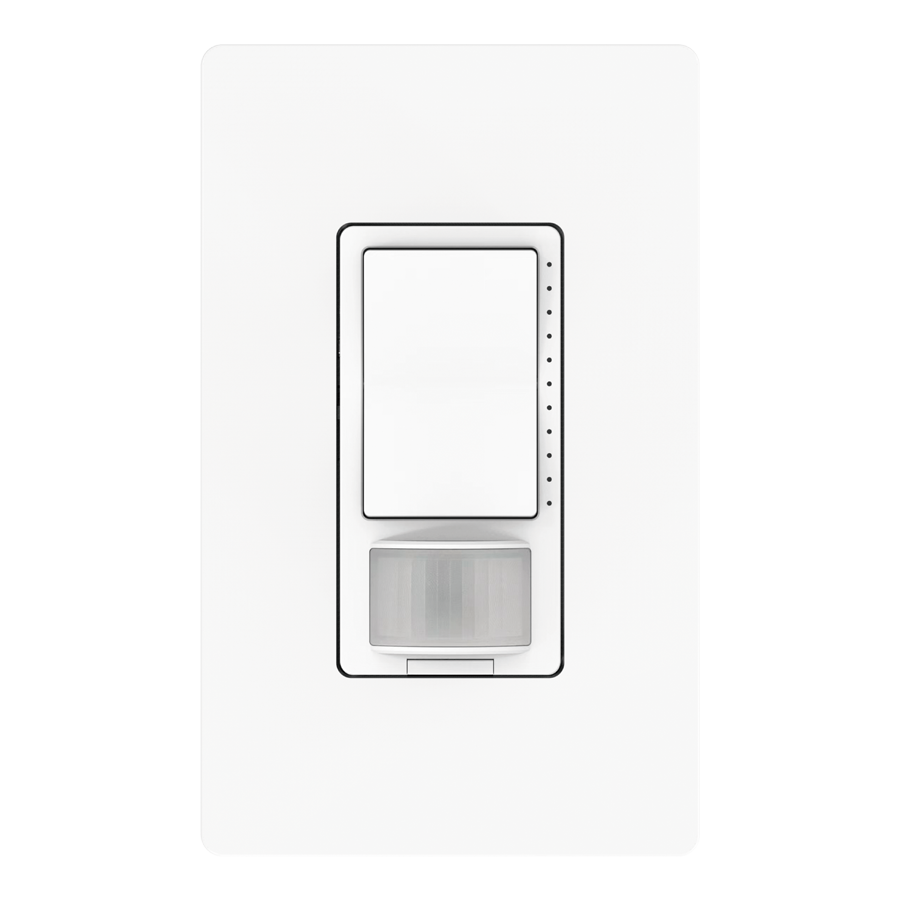

ZDIM/LCBS
- In-wall device for switching and dimming any Lightcloud Blue device
- Dimming features both fade on/off and rapid full-on
- Set the paddle to dim up/down or turn lights on/off
- Control up to 600 Lightcloud Blue-enabled lights with a single switch.
- Neutral wire connection is required.
Dimensions
Weight: 0.2 lbs
Technical Specifications
Lightcloud
Communication Protocol
Bluetooth Mesh
Range
Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.
Max # of Devices to Control
Up to 600 devices
Factory Reset
Method 1: Delete from App
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'.
Method 2: Manual
Press and hold the reset switch until the status indicator blinks red.
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'.
Method 2: Manual
Press and hold the reset switch until the status indicator blinks red.
Status Indicator Light
Flashing red (1s on/1s off): Device is not provisioned
Solid green: Device is provisioned
Solid green: Device is provisioned
Performance
Product Type
Wireless Dimmer
Description
Wireless in-wall switch for on/off and dimming of any Lightcloud Blue-enabled lights.
Electrical
Dimming Control Type
Wireless
Load Switching Capactiy
No load required, for a connected TRIAC/ELV or 0-10V load explore the XDIM family of Lightcloud Blue dimmers.
Power Cut Off Switch
Push in to connect to line voltage.
Pull out to disconnect to line voltage.
Note: After dip switch adjustment, power device off and then power on again.
Pull out to disconnect to line voltage.
Note: After dip switch adjustment, power device off and then power on again.
Input Voltage
120-277V
Operating Frequency
60 Hz
Operating Temperature
32°F to 104°F (0°C to 40°C)
Sensor Settings
Sensor Connection Type
Integrated
Max Mounting Height
4 ft
Detection Range
26 ft distance mounted at 4 ft
Sensor Technology
Passive Infrared (PIR)
Default Setting
Uncommissioned State:
Motion Sensitivity: High
Brightness when triggered : 100%
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Daylight Sensing: Disabled
Commissioned State:
Once pair, the sensor will default to disabled. Once enabled the following settings apply:
Motion Sensitivity: High
Brightness when triggered: Last on status
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Daylight Sensing: Disabled
Motion Sensitivity: High
Brightness when triggered : 100%
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Daylight Sensing: Disabled
Commissioned State:
Once pair, the sensor will default to disabled. Once enabled the following settings apply:
Motion Sensitivity: High
Brightness when triggered: Last on status
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Daylight Sensing: Disabled
Adjustable Sensor Settings?
Yes, using the Lightcloud Blue mobile app
Sensing Type
Occupancy, Vacancy
Occupied Actions
On or On at a Dim Level
Vacant Actions
Off or On at a Dim Level
Occupancy Timeout
1 minute to 240 minutes
Daylight Sensing
Closed loop daylight harvesting with continuous dimming. Specify settings using the Lightcloud Blue mobile app.
Installation
Mounting
Requires a U.S. wallbox with 2 inch depth (recommended) and a minimum depth of 1.46 inches. For use in single or multi-gang applications.
Application Type
Single-pole or Multi-point control
Neutral Wire Required
Yes
Construction
Shape
Rectangle
Finish
Matte White
Enclosure Material
Plastic
Key Type
Paddle
Package Includes
(1) Dimmer
(1) Face plate bracket
(1) Back plate
(2) Mounting screws
(1) Jumper wire
(2) 5-pin wiring terminals
(3) 2-pin wiring terminals
(5) Connection wires
(1) Face plate bracket
(1) Back plate
(2) Mounting screws
(1) Jumper wire
(2) 5-pin wiring terminals
(3) 2-pin wiring terminals
(5) Connection wires
Compliance
Listings
UL 60730
Environment
Suitable for use indoors in dry and damp environments.
DLC NLC Listed
This product is on the Design Lights Consortium (DLC) Network Lighting Controls (NLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Certification Model Number
ZDIM/LCBS
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
3-Year Limited Warranty
The RAB 3-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty
