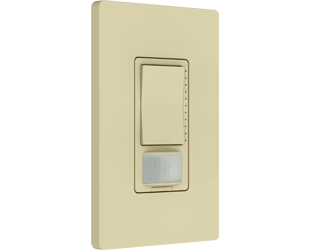

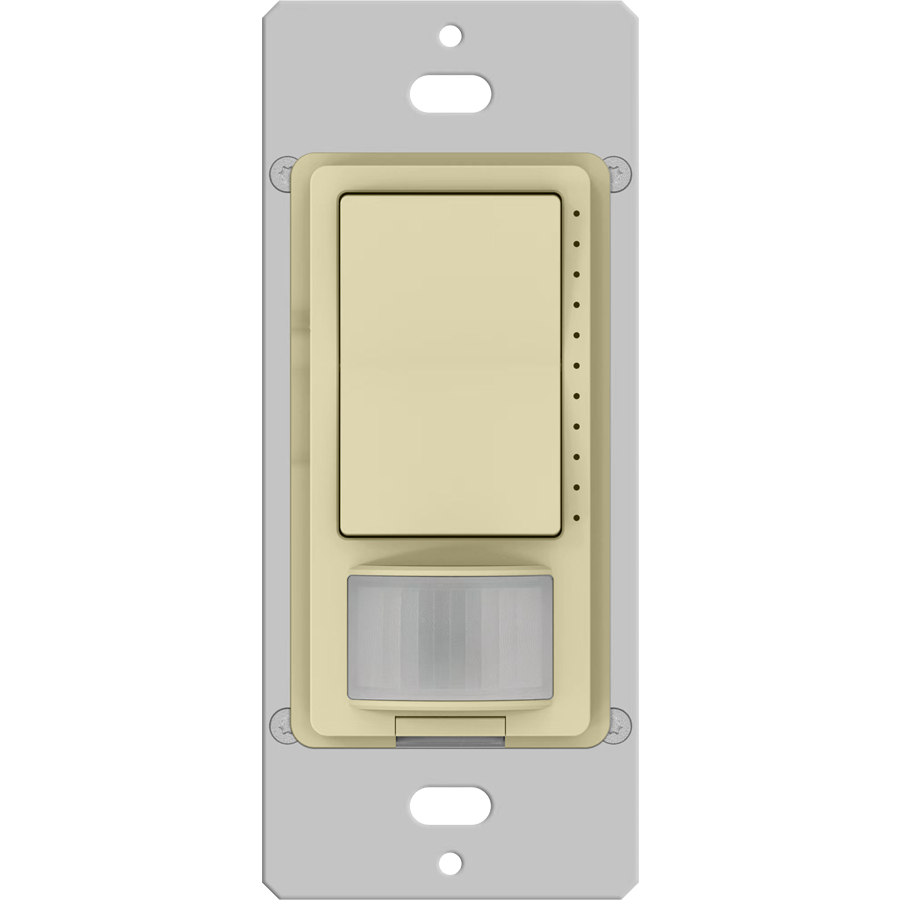

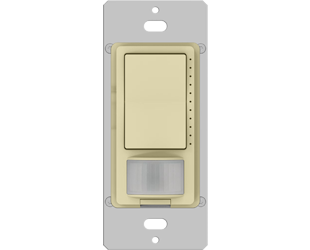

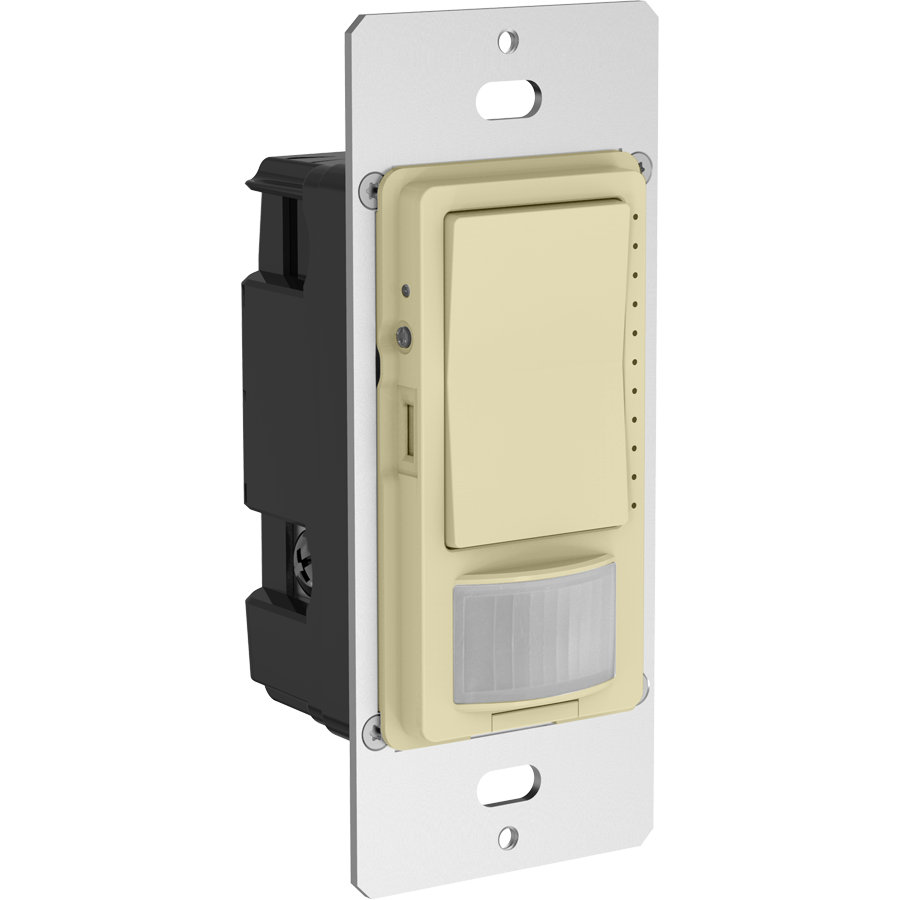

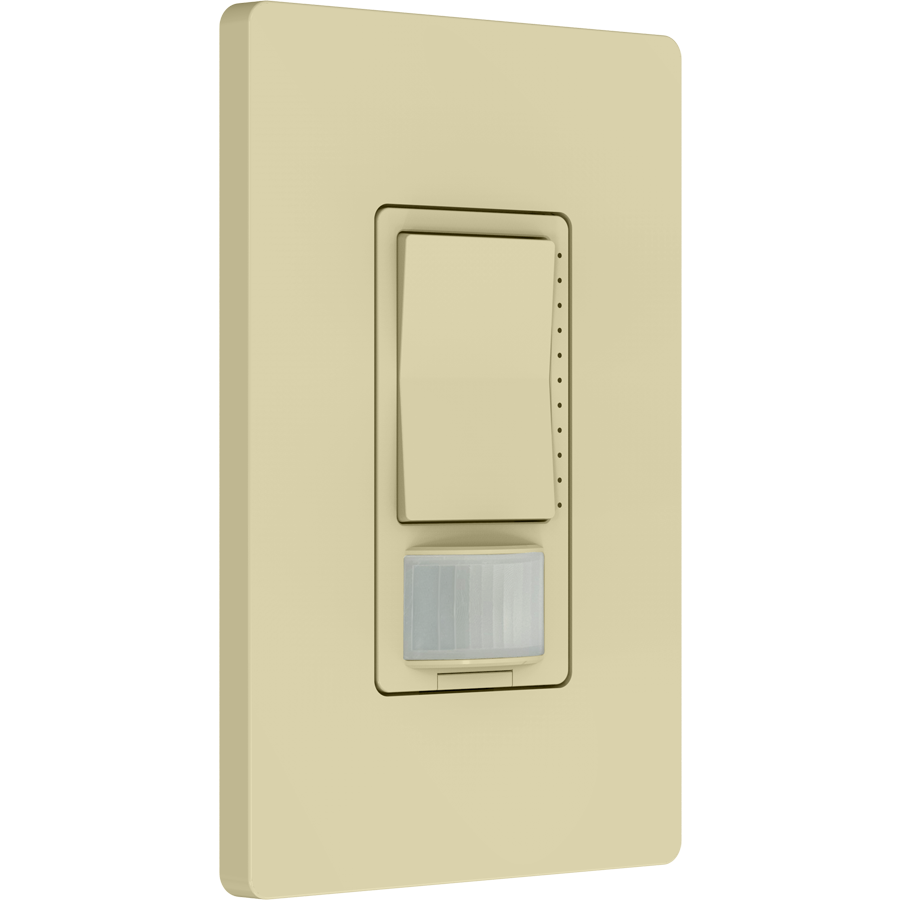

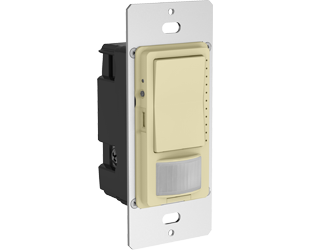

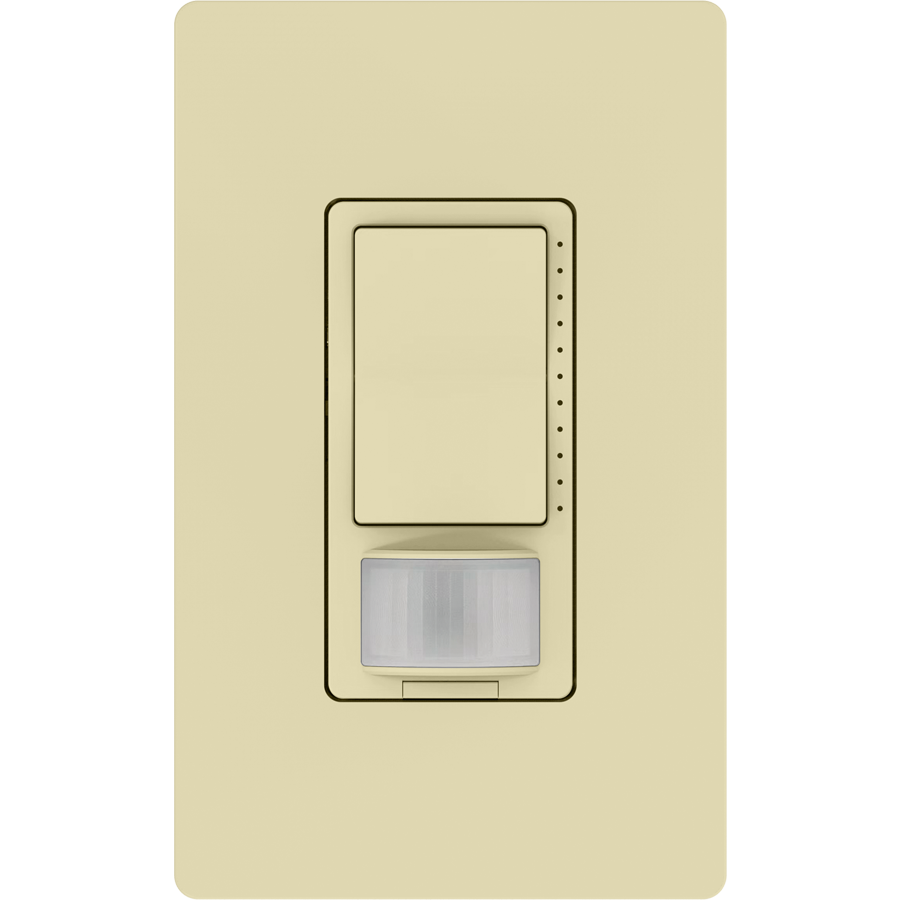

ZDIMLA/LCBS
- In-wall device for switching and dimming any Lightcloud Blue device
- Dimming features both fade on/off and rapid full-on
- Set the paddle to dim up/down or turn lights on/off
- Control up to 600 Lightcloud Blue-enabled lights with a single switch.
- Neutral wire connection is required.
Dimensions
Weight: 0.2 lbs
Technical Specifications
Lightcloud
Gateway Required
No
Communication Protocol
Bluetooth
Range
Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.
Outdoor: Up to 200 feet clear line of sight; Up to 120 feet around corners
Outdoor: Up to 200 feet clear line of sight; Up to 120 feet around corners
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the network. Building materials such as brick, concrete, and steel construction or heavy vegetation, bushes or trees may require additional Lightcloud Blue devices to extend around an obstruction.
Max # of Devices to Control
Up to 200 devices
Status Indicator Light
Flashing red (1s on/1s off): Device is not provisioned
Solid green: Device is provisioned
Solid green: Device is provisioned
Performance
Product Type
Smart Dimmer
Description
Wireless in-wall switch for on/off and dimming of any Lightcloud Blue lights.
Electrical
Dimming Control Type
Wireless with Lightcloud Blue
Load Switching Capactiy
No load required. For use with Lightcloud Blue lights.
Power Cut Off Switch
Push in to connect to line voltage.
Pull out to disconnect to line voltage.
Note: after dip switch adjustment, power device off and then power on again.
Pull out to disconnect to line voltage.
Note: after dip switch adjustment, power device off and then power on again.
Input Voltage
120-277V
Operating Frequency
60 Hz
Operating Temperature
32°F to 104°F (0°C to 40°C)
Sensor Settings
Sensor Connection Type
Intergrated
Max Mounting Height
4 ft
Detection Range
26 ft distance mounted at 4 ft
Sensor Technology
Passive Infrared (PIR)
Default Setting
Uncommissioned State:
Motion Sensitivity: High
Brightness when triggered : 100%
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Daylight Harvesting: Disabled
Photocell: Disabled
Once paired to the mobile app, the sensor will be disabled. Sensor settings can be configured using the mobile app.
Motion Sensitivity: High
Brightness when triggered : 100%
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Daylight Harvesting: Disabled
Photocell: Disabled
Once paired to the mobile app, the sensor will be disabled. Sensor settings can be configured using the mobile app.
Adjustable Sensor Settings?
Yes, using the Lightcloud Blue mobile app
Sensing Type
Occupancy, Vacancy
Occupied Actions
On or On at a Dim Level
Vacant Actions
Off or On at a Dim Level
Occupancy Timeout
1 minute to 240 minutes
Daylight Sensing
Closed loop daylight harvesting with continuous dimming. Specify settings using the Lightcloud Blue mobile app.
Installation
Mounting
Requires a U.S. wallbox with 2 inch depth (recommended) and a minimum depth of 1.46 inches
Application Type
Single-pole. Combine with multiple Dimmers for wireless control, no traveller wires required.
Neutral Wire Required
Yes
Construction
Enclosure Material
Plastic
Key Type
Paddle
Package Includes
(1) Dimmer
(1) Face plate bracket
(1) Back plate
(2) Mounting screws
(1) Face plate bracket
(1) Back plate
(2) Mounting screws
Compliance
Listings
UL 60730
Environment
Suitable for use indoors in dry and damp environments.
DLC NLC Listed
This product is on the Design Lights Consortium (DLC) Network Lighting Controls (NLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Certification Model Number
ZDIM/LCBS
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
Compatible Products
Compatible with all Lightcloud Blue products and devices.
3-Year Limited Warranty
The RAB 3-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty
