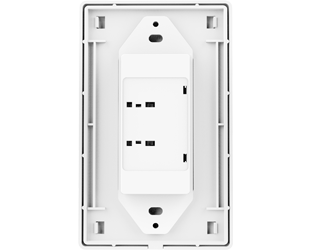

ZDIMSP/LCB
ZDIMSP/LCB
- No wiring or batteries needed
- Kinetic, self-powered dimmer switch for compatible Lightcloud Blue devices
- Dimming features both fade on/off and rapid full-on
- Easy installation to single-gang wallbox or flat surface
- Wireless communication via Bluetooth Mesh

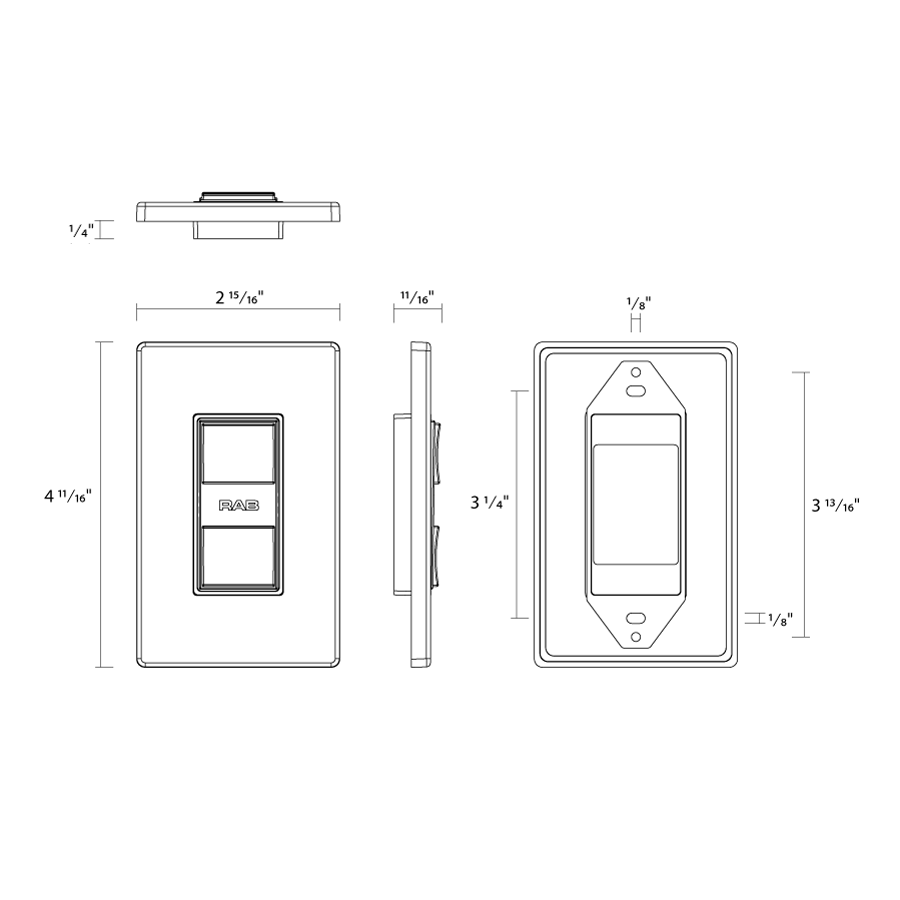

Dimensions
Weight: 0.2 lbs
Technical Specifications
Lightcloud
Lightcloud Blue
Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at www.lightcloud.com.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at www.lightcloud.com.
Gateway Required
No
Communication Protocol
Bluetooth Mesh
Range
Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners.
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners.
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.
Performance
Product Type
Wireless, Self-Powered Dimmer
Description
Smart, kinetic switches designed to wirelessly control your Lightcloud Blue devices-no power source required!
Electrical
Dimming Control Type
Wireless
Load Switching Capactiy
No load required, for a connected TRIAC/ELV or 0-10V load explore the XDIM family of Lightcloud Blue dimmers.
Operating Temperature
-4°F to 131°F (-20°C to 55°C)
Installation
Mounting
Requires a U.S. wallbox with 2-inch depth (recommended) and a minimum depth of 1.46 inches
Application Type
Single-pole or Multi-point control
Neutral Wire Required
No
Construction
Shape
Rectangle
Finish
Matte White
Enclosure Material
Plastic
Key Type
Paddle
Compliance
Listings
UL Listed
Environment
Suitable for use indoors in dry and damp environments.
DLC NLC Listed
This product is on the Design Lights Consortium (DLC) Network Lighting Controls (NLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Certification Model Number
ZDIMSP/LCB
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Products
This wireless, self-powered dimmer can be combined with other Lightcloud Blue lights and devices. When pairing this dimmer, there must be at least one compatible proxy light(s)/device(s) (listed below) grouped in the same Area to use this dimmer for wireless control.
PIR40[B]/LCB
Lightcloud Blue Low Voltage Controller+Sensor
LCBAUX/[W/B]
Lightcloud Blue Low Voltage Controller
T34FA[1X4/2X2/2X4]/LCB[S]
Backlit panel, tunable white with Lightcloud Blue
EZP[1X4/2X2/2X4]/LCB[S]
Edge-lit panel, tunable white with Lightcloud Blue
SWISHFA[1X4/2X2/2X4]/LCB[S]
Center basket troffer, tunable white with Lightcloud Blue
PIR40[B]/LCB
Lightcloud Blue Low Voltage Controller+Sensor
LCBAUX/[W/B]
Lightcloud Blue Low Voltage Controller
T34FA[1X4/2X2/2X4]/LCB[S]
Backlit panel, tunable white with Lightcloud Blue
EZP[1X4/2X2/2X4]/LCB[S]
Edge-lit panel, tunable white with Lightcloud Blue
SWISHFA[1X4/2X2/2X4]/LCB[S]
Center basket troffer, tunable white with Lightcloud Blue
3-Year Limited Warranty
The RAB 3-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty
