LCBC-X/W

Spec Sheet Sensor Compatibility List Controller Compatibility List Instructions Sell Sheet Spec Sheet

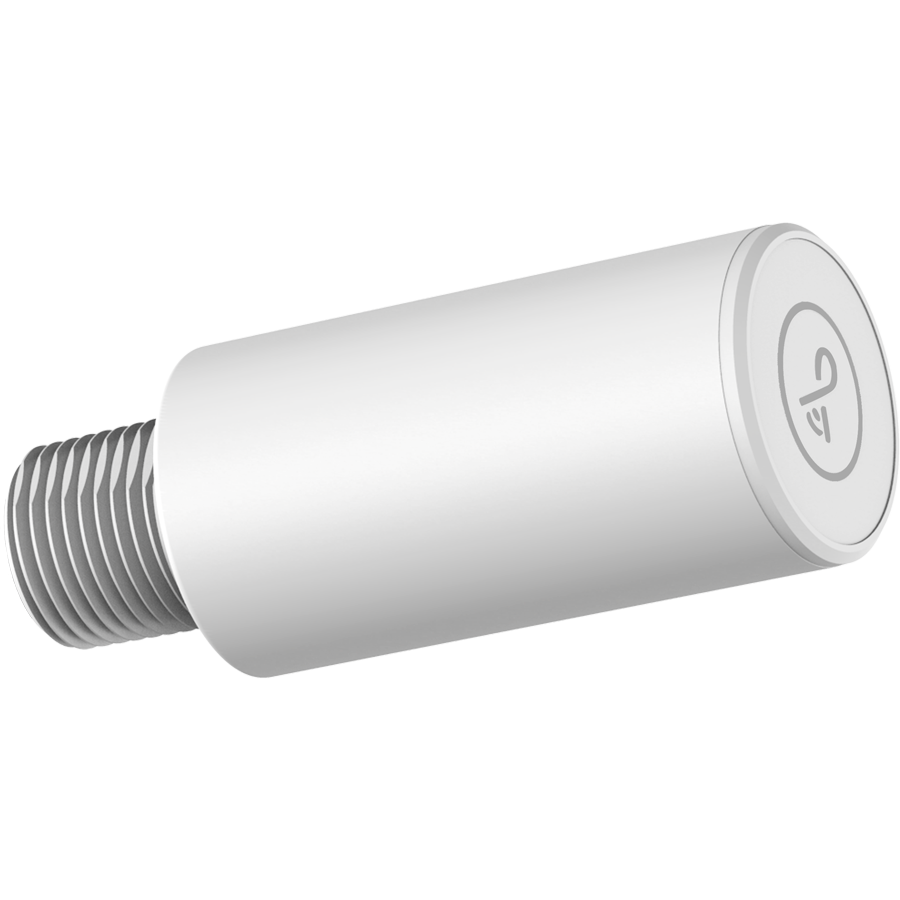

LCBC-X/W

Remotely controlled to enable switching and dimming in any compatible 0-10V LED fixture or circuit

Direct connect to the Lightcloud Blue mobile app via Bluetooth; no Gateway or Hub required

For indoor or outdoor applications

Manually control a fixture's on/off and dim level using the single Controller button

5yr no-compromise warranty

View Technical Specs

View Price & Availability

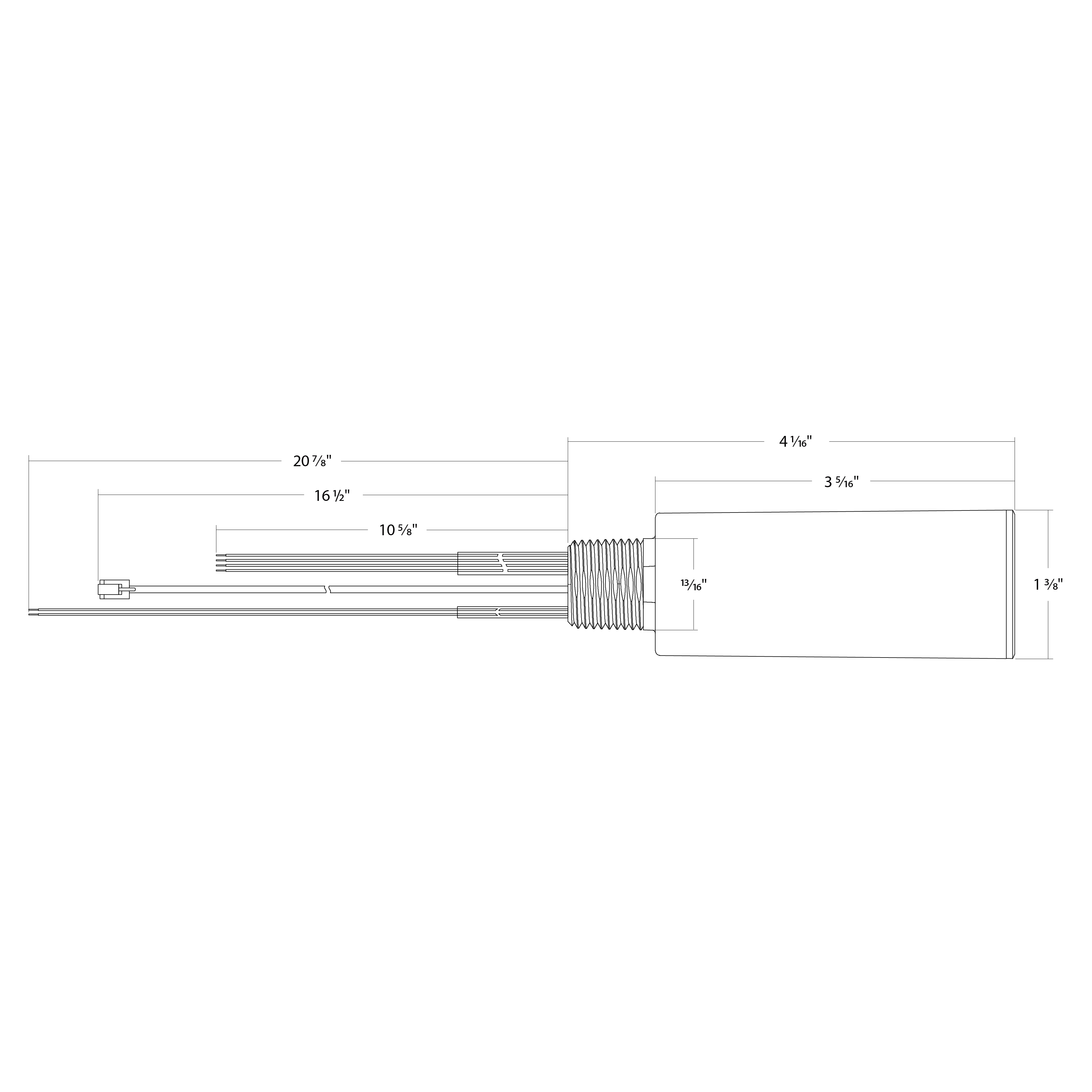

Dimensions

Weight: 0.2 lbs

Technical Specifications

Lightcloud

Lightcloud Blue Installed

Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.

DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

Learn more at www.lightcloud.com.

Gateway Required

Communication Protocol

Bluetooth Mesh

Range

Outdoor: Up to 200 feet clear line of sight; Up to 120 feet around corners

Spacing Criteria

Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.

Factory Reset

Method 1: Delete from App
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'. The device will flash on/off 3x and return to full brightness.

Method 2: Manual
Locate the device identification button at the top of the Controller under the Lightcloud logo. Press and hold this button for 10s or until the indicator light begins flashing red. If the Controller is attached to a fixture, the fixture will also flash on/off 3x.

Device Identification Button

Located at the top of the controller under the Lightcloud logo.
Once the Controller has been provisioned to the Lightcloud Blue mobile app this button offers the following functionality:
Press once to rapid identify this device in the Lightcloud Blue mobile app
Press twice to toggle circuit on and off
Press twice and hold to set dim level
Press and hold for 10s to reset the device to factory settings and into pairing mode

Electrical

Status Indicator

The status indicator light is located around the circumference of the top of the Controller.
• Solid Green: connected to a Lightcloud Blue network.
• Blinking Red when unprovisioned

Dimmable

Yes when connected to a compatible 0-10V fixture or circuit.

This will not operate properly when connected to a standard (incandescent) dimmer or dimming control.

Input Voltage

120-277V

Operating Frequency

50/60Hz

Operating Temperature

-22°F to 140°F (-30°C to 60°C)

Performance

Product Type

Lightcloud Blue Controller

Description

Convert any 0-10V fixture or dimming circuit to allow for wireless control. Easily control devices up to 300 feet apart within the Bluetooth mesh network, no need to run additional wire.

Load Switching Capacity

INDUCTIVE and RESISTIVE LOAD: 16A @ 120V or 277V
LED LOAD: 8A @ 120V; 3A @ 277V
MOTOR RATING: 1/2HP@120V , 1HP@240V

Construction

Shape

Cylinder

Finish

White

Enclosure Material

Plastic

Compliance

Listings

UL Listed

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IP Rating

IP66

IC Rated

Air Tight

DLC NLC Listed

This system is on the Design Lights Consortium (DLC) Network Lighting Controls (NLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Products

Any fixture or group of fixtures that are 0-10V within the rated load switching capacity. This controller is not recommended for 277 3 Phase WYE applications.

Compatible Accessories

LCLCSENSE/SH
LC & LCB Luminaire standalone PIR sensor

LCLCSENSE/P/EG/A/2
Lightcloud luminaire PIR sensor for EZPAN

LCLCSENSE/M/EG/A
Lightcloud luminaire MVS sensor for EZPAN

LCLCSENSE/M/EG/B
Lightcloud luminaire PIR sensor for SWISH

LCLCSENSE/P/EG/B/2
Lightcloud luminaire MVS sensor for SWISH

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
