Selectable output and CCT in the field make the SWISH a slam dunk!

SWISH® FA

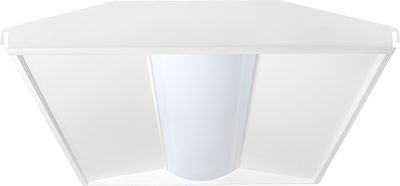

LED field-adjustable center basket

Product CSV Product PDF Instructions Family Spec Sheet Spacing Tables

9 SKUs in one SWISH saves shelf and cargo space.

Get all the options you expect from a center basket panel with less SKUs to manage. Save shelf space, reduce carrying costs, increase product availability and improve customer satisfaction.

The power is in your hands.

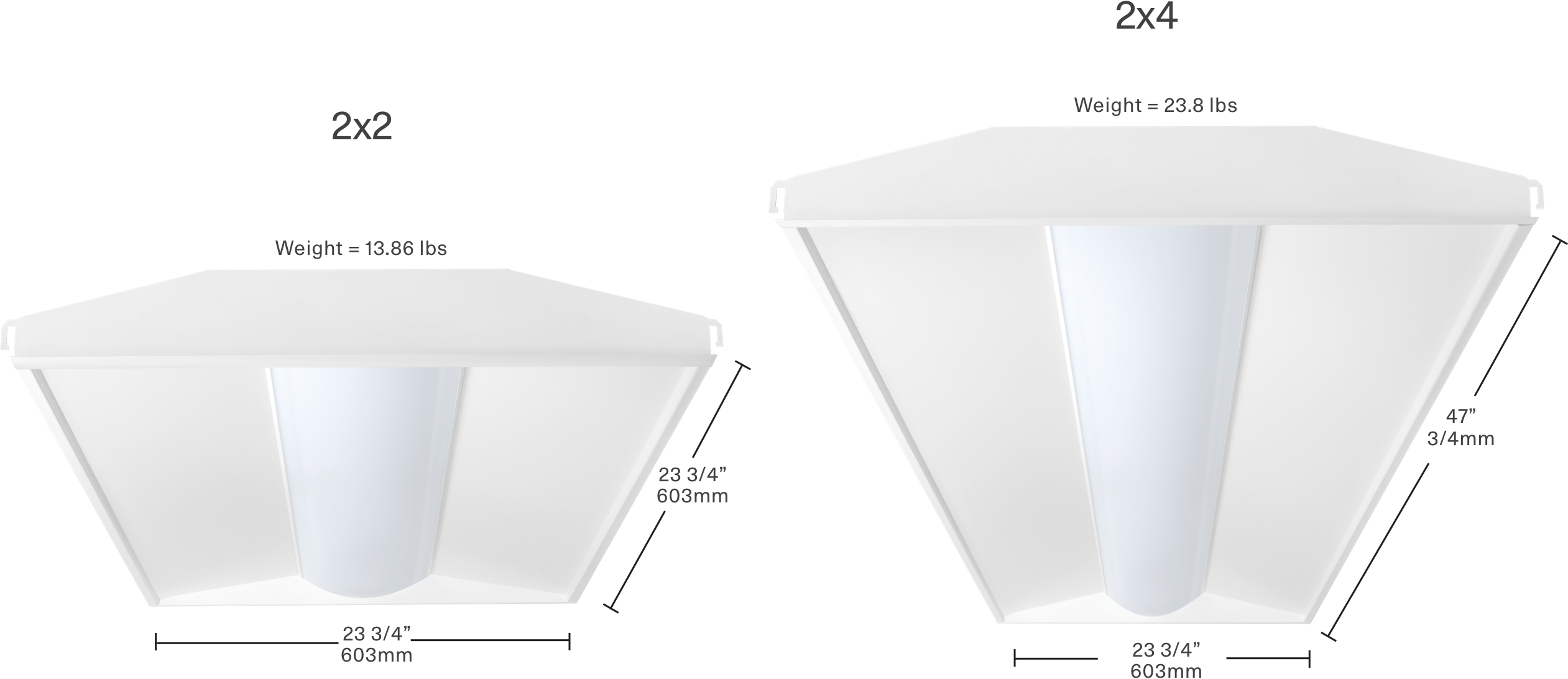

2x2 models can be set to 19W, 29W or 39W, and 2x4 models can be set to 29W, 39W or 49W. Both form factors have a selectable CCT of 3500K, 4000K, or 5000K.

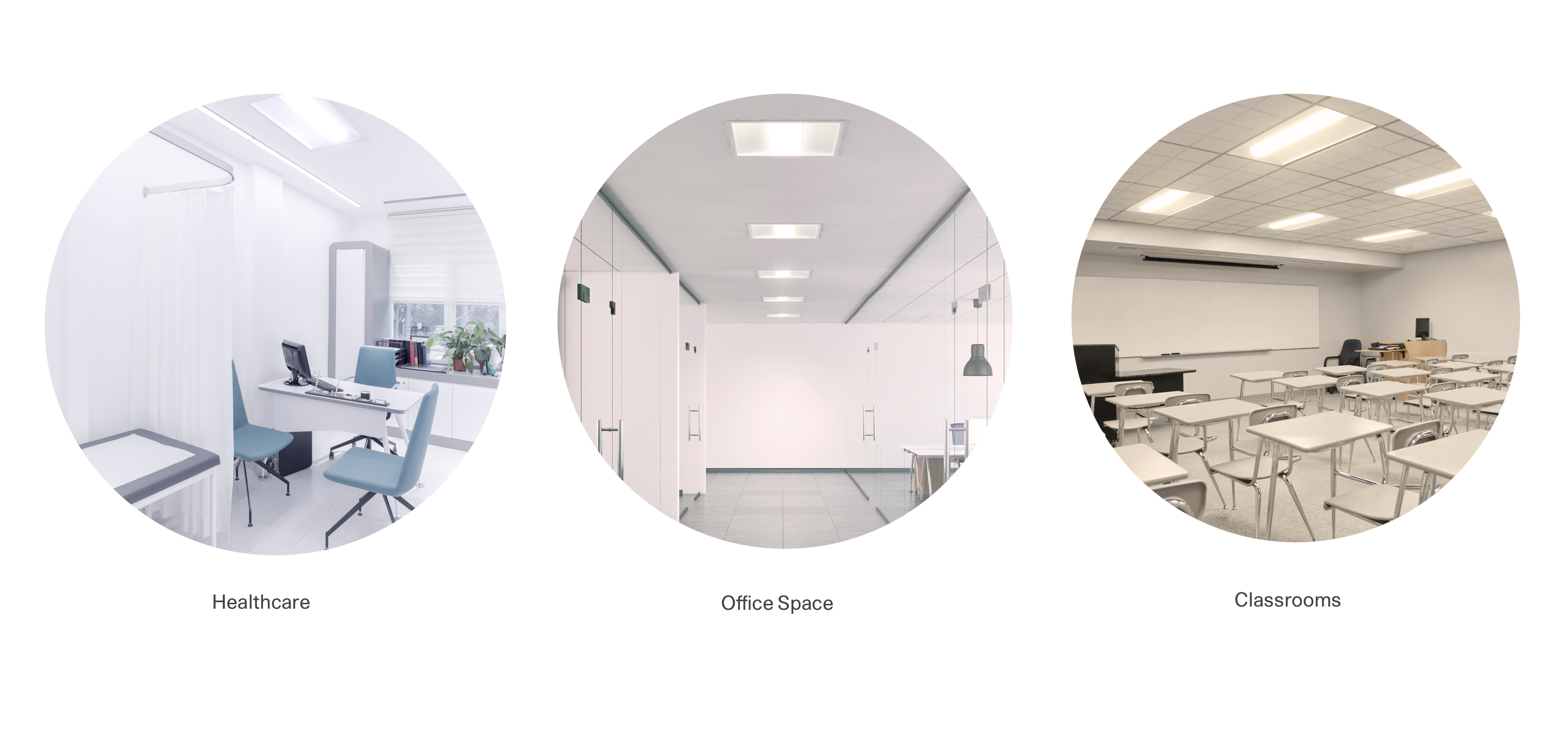

What you need, where you need it.

The SWISH FA is ideal for use in healthcare facilities, office spaces and classrooms, where lighting preferences vary from space to space.

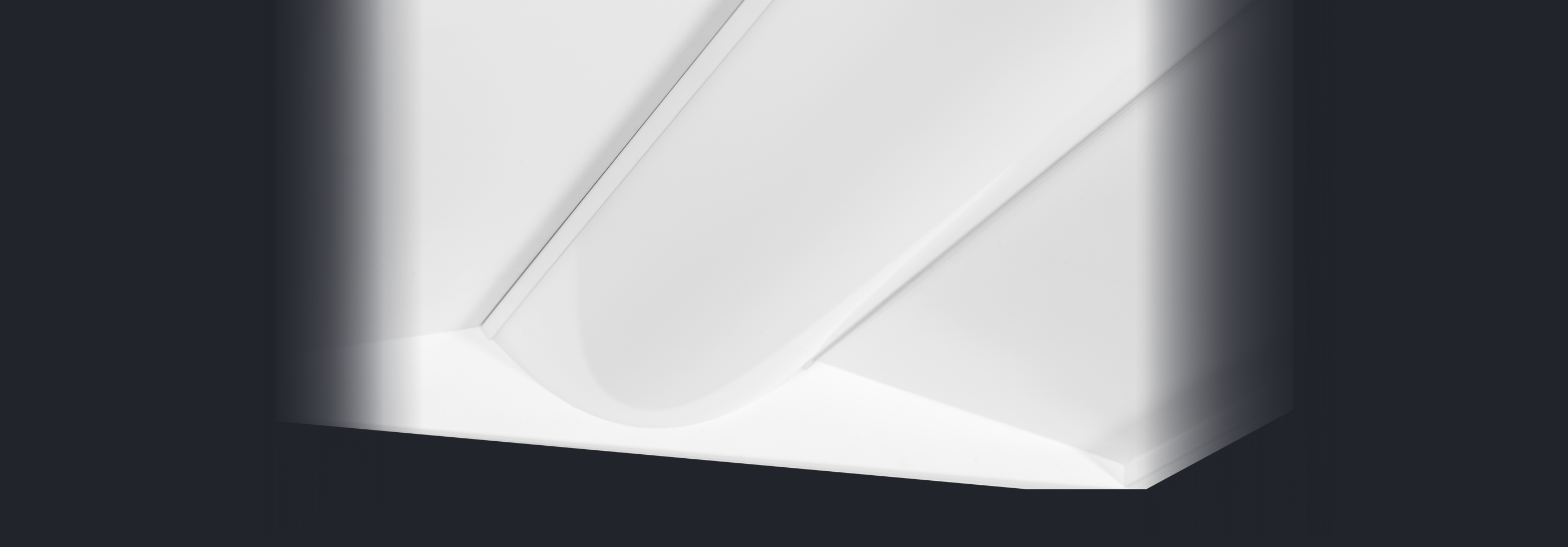

See the difference

Frosted polycarbonate lens with proprietary diffusion design provides a uniform distribution and reduces glare. Easy tool-less removal and installation for cleaning and maintenance.

Durable build.

Die-formed, 20-guage, cold-rolled steel with high-reflectance (91%), powder-coated white finish. Flexible polycarbonate lens won’t yellow or crack.

Wide distribution

SWISH FA has a distribution pattern that allows for wide spacing and uniform lighting on the work plane.

Flexible installation options

With kits available for surface or recessed mounting,
SWISH FA can handle drywall ceilings as well as grids. IC rating allows for direct contact with ceiling insulation.

Stay in control

All models are available with factory-installed Lightcloud Controller for integration with our wireless lighting control system. A microwave sensor is also offered for both occupancy sensing daylight harvesting.

up to

62%

energy savings

Get fast payback.

With energy savings of up to 62%, combined with the reduced maintenance cost that comes with installing LED, the can pay for itself in no time!

Stay in control.

SWISH FA comes standard with a 0-10V dimming driver for complete control of your lighting scene.

5-year warranty.

The RAB 5-year, no-compromise warranty covers light output, color stability, driver performance, paint finish and labor. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

CCEA compliant.

Chicago Plenum (CCEA) compliant options available.

Big rebates.

Save more through utility rebates. SWISH FA models come in DLC approved models.

Emergency battery.

Available with battery backup.

100,000-hour LED lifespan.

At 10 hours daily use, RAB LEDs are rated to last 27 years, dramatically reducing maintenance and re-lamping costs.

Available with Lightcloud® controls.

Lightcloud is a commercial wireless lighting control system and service, fully developed and supported by RAB.
  • Use your mobile device, tablet or computer for switching and dimming of individual fixtures or entire areas
  • Complimentary rebate assistance and lighting design services
  • Programmable schedules let you illuminate zones, automatically adjusting for sunrise and sunset times
  • Save up to 68% on energy costs from lighting
