• Replacement for High-output Incandescent or lower wattage metal halide and high pressure sodium lamps
  • Rated for use in enclosed and open fixtures in dry or damp locations
  • Ideal for post top, bollards, and outdoor corridor lighting
  • Suitable for use in a base-up or base-down position
View Technical Specs
Performance
Watts 12W
Color Temp 5000K (Daylight)
Lumens 1,155 lm
Efficacy 91.7 lm/W
Color Accuracy 80 CRI
L70 Lifespan 15,000 Hours
Type
120V
208V
240V
277V
Input Watts 12.6W
Dimensions

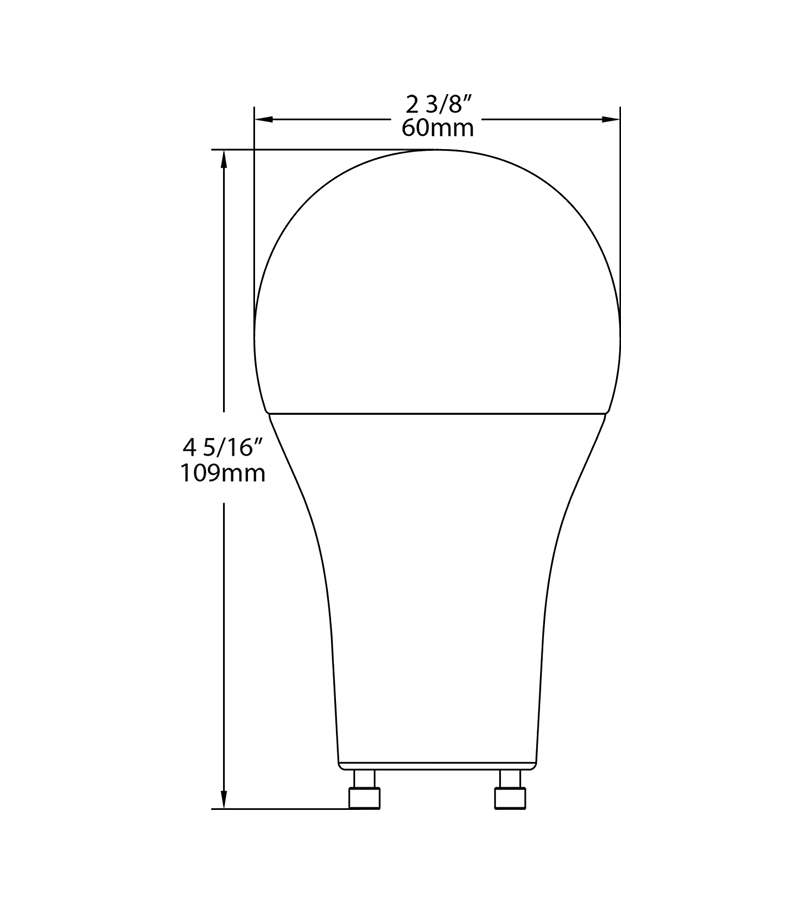

Link to Dimension Drawing

Weight: 0.2 lbs

Technical Specifications
Performance
Product Type
A-Line
Input Wattage
13W
Wattage Equivalency
75W Incandescent
Lumens
1,155lm
Efficacy
87lm/W
L70 Lifespan
15,000 Hours
Construction
Bulb Shape
A19
For Use Outdoors in Open Fixtures
No
LED Characteristics
Color Temperature
5000K Daylight
Color Accuracy (CRI)
80 CRI
Beam Angle
230°
Installation
Base Type
GU24
Electrical
Power Factor
≥0.7
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Dimmable
Yes, down to 10%
Input Voltage
120V
Operating Frequency
60 Hz
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
Energy Star Approved
This product is ENERGY STAR® Version 2.0 Certified
Energy Star ID
2330416
California Energy Commission (CEC) Status
Not Lawful for Sales in California
