A21-23-E26-840-DIM

Spec Sheet IES File FCC Caution Spec Sheet EZ Layout

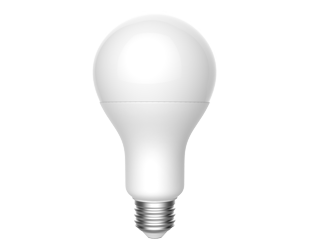

A21-23-E26-840-DIM

Replacement for High-output Incandescent or lower wattage metal halide and high pressure sodium lamps

Rated for use in enclosed and open fixtures in dry or damp locations

Ideal for post top, bollards, and outdoor corridor lighting

Suitable for use in a base-up or base-down position

View Technical Specs

View Price & Availability

Performance

Watts	23W
Color Temp	4000K
Lumens	2,550 lm
Efficacy	110.9
Color Accuracy	80 CRI
L70 Lifespan	25,000 Hours

Type	Constant Current
120V	0.22A
208V
240V
277V
Input Watts	23W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Technical Specifications

Performance

Product Type

A-Line

Input Wattage

23W

Lumens

2,550lm

Efficacy

110.9lm/W

L70 Lifespan

25,000-Hour LED lifespan based on IES LM-70 results

Wattage Equivalency

150W Incandescent / Metal Halide or High Pressure Sodium

Compliance

UL Listed

Suitable for damp locations

Enclosed Fixtures

Suitable for use in enclosed fixtures

LED Characteristics

Color Temperature

4000K

Color Accuracy (CRI)

>80 CRI

Beam Angle

230°

Electrical

Power Factor

>0.9

Dimmable

Yes

Operating Temperature

-20°C to 40°C

Input Voltage

120V

Operating Frequency

60 Hz

Construction

Bulb Shape

A21

Enclosure Material

Plastic

Installation

Base Type

E26 Edison

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
