ALED5S78Y/D10/WS2
ALED5S78Y/D10/WS2
- Precision optics deliver uniform, optimal light distribution
- Perfect for parking lots and pathways
- 100,000-Hour LED lifespan
Performance
| Watts | 78W |
| Color Temp | 3000K (Warm) |
| Lumens | 9,437 lm |
| Efficacy | 143.4 lm/W |
| Color Accuracy | 73 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.56A |
| 208V | 0.34A |
| 240V | 0.33A |
| 277V | 0.26A |
| Input Watts | 65.8W |
Dimensions
Weight: 36.4 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
California Title 24
Can be used to conform with the requirements of California Title 24 Part 6.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P2ZJKF8X
DLC Product Code: P2ZJKF8X
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 250W Metal Halide
Optical
BUG Rating
B3 U1 G2
Optics
Square, Type V distribution
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Thermal Management
Superior thermal management with external air-flow fins
Effective Projected Area
EPA = 0.7
Lens
Clear polycarbonate lens
Reflector
Vacuum-metalized polycarbonate
Gaskets
High-temperature silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Tenon for 2 3/8" or 3" OD post or pole-top adaptor
Electrical
Driver
Constant Current, Class 2 with 4kV surge protection, 120-277VAC, 50/60 Hz, 120V: 0.56A, 208V: 0.34A, 240V: 0.33A, 277V: 0.26A
THD
5.57% at 120V, 9.27% at 277V
Power Factor
99.4% at 120V, 91.6% at 277V
ALED5S78 with Dimmable Drive
Driver includes dimming control for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Other
Patents
The designs of the ALED5S are protected by patents pending in US, Canada, China, Taiwan and Mexico
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Sensor Settings
Multi Level Motion Sensor
/WS2 sensor options use state-of-the-art surface mount technology (SMT), just like cellular phones and beepers. SMT gives you more reliability, greater RF immunity. This compact sensor that can fit neatly where others cannot. This sensor technology automatically affects the state of operation for lighting systems or individual luminaries based upon detecting the presence or absence of movement for both people as they exit/enter, or for the motion of moving vehicles within the sensors viewing area. The wide 180° viewing angle can detect movement along the entire side of a building with only one compact sensor. The hard lens is molded as part of the case, vandalproof, rainproof, bugproof and absolutely sealed. Sensor functions best when movement is across its detection pattern, not towards the sensor.
Operating Voltage
120-277V
Power Consumption
1W
0-10V Sinking Current
50mA
Adjustable High and Low Modes
High: 0-10V; Low: off, 0-9.8V
Adjustable Time Delay
Amount of time in high mode with no motion before switching to low mode: 5 min., 1 -30 min.
Adjustable Cut Off Delay
Time in which the fixture will remain on low mode with no motion before turning off and waiting for new motion to turn on: None, 1 -60 min., 1 -5 hrs.
Adjustable Sensitivy
None, low, medium, maximum
Adjustable Setpoint
None, 1 to 250 fc, auto
Operating Temperature
-40°F to 167°F (-40°C to +75°C)
Operating Humidity
20% to 90% noncondensing
Relay Life Rating
200,000 cycles (120/277VAC), 50,000 cycles (230VAC)
IP Rating
Ingress protection rating of IP66 for dust and water
UL Listed
Suitable for Wet Locations as factory installed
Handheld Wireless Configuration Tool
Adjust settings using handheld wireless configuration tool (catalog# WSREM). Only available with 0-10V dimming driver options. Handheld wireless configuration tool available here.
Recently Viewed Products
ALED5S78Y/D10/WS2
Area Lights 9437 Lumens Aled 78W 3000K 0-10V Dimming Pole Mount Wattstopper Sensor 20 Feet Lens Bronze
IVAT5S-100LSF750GU/WS
Area Lights 11577 Lumens Ivat5S Type V Square 94W Slipfitter Mount 70Cri 5000K Roadway Gray 120V-277V 0-10V Dimming 8 Feet Lens Wattstopper Sensor
GN5LED13NACG

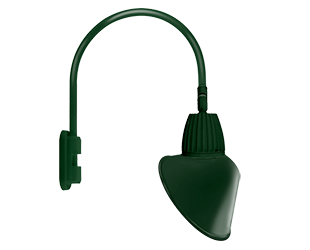

Decorative 388 Lumens Gooseneck 13W 4000K Pole 20 Inches High & 19 Inches From Pole Angled Cone Flood 15 Inches Green
