Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PHQARK5J
LED Characteristics
LEDs
4x13W high-output, long-life LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 150W Metal Halide
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Effective Projected Area
EPA = 1.2
Thermal Management
Superior thermal management with external air-flow fins
Housing
Precision die-cast aluminum, Type V distribution
Support Arms
Extruded aluminum
Lens
Clear tempered glass lens
Reflector
Specular vacuum-metallized polycarbonate, Type V distribution
Gaskets
High-temperature silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Optical
Other
Patents
The designs of the ALED5T52 are protected by patents pending in US, Canada, China, Taiwan and Mexico
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
Electrical
Drivers
Constant Current, Class 2 with 6kV surge protection, 120-277VAC, 50/60 Hz, 120V: 0.45A, 208V: 0.26A, 240V: 0.19A, 277V: 0.12A
THD
3.27% at 120V, 6.42% at 277V
Power Factor
99.9% at 120V, 96.4% at 277V

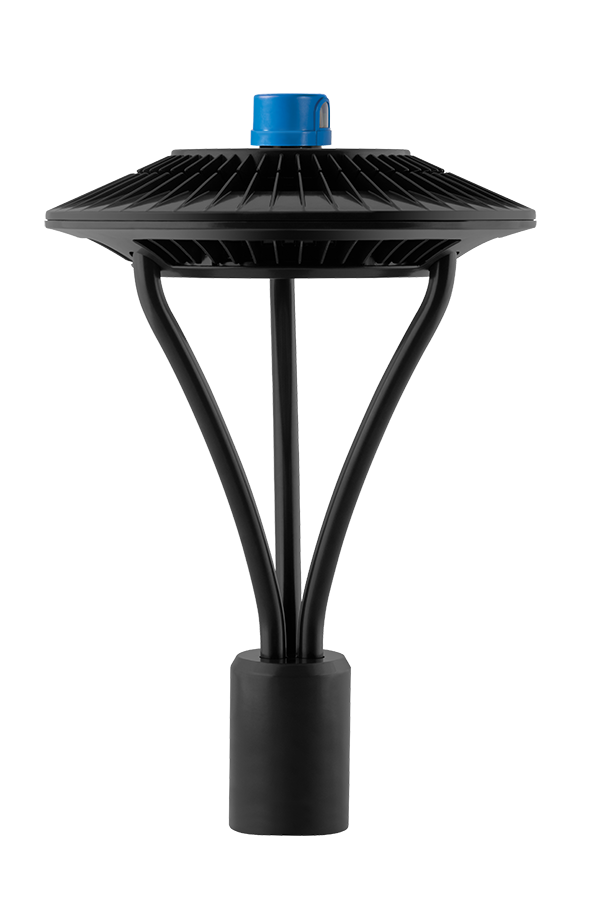

Photocell
120-277V Twistlock photocell included. Photocell is compatible with 120V - 277V.
