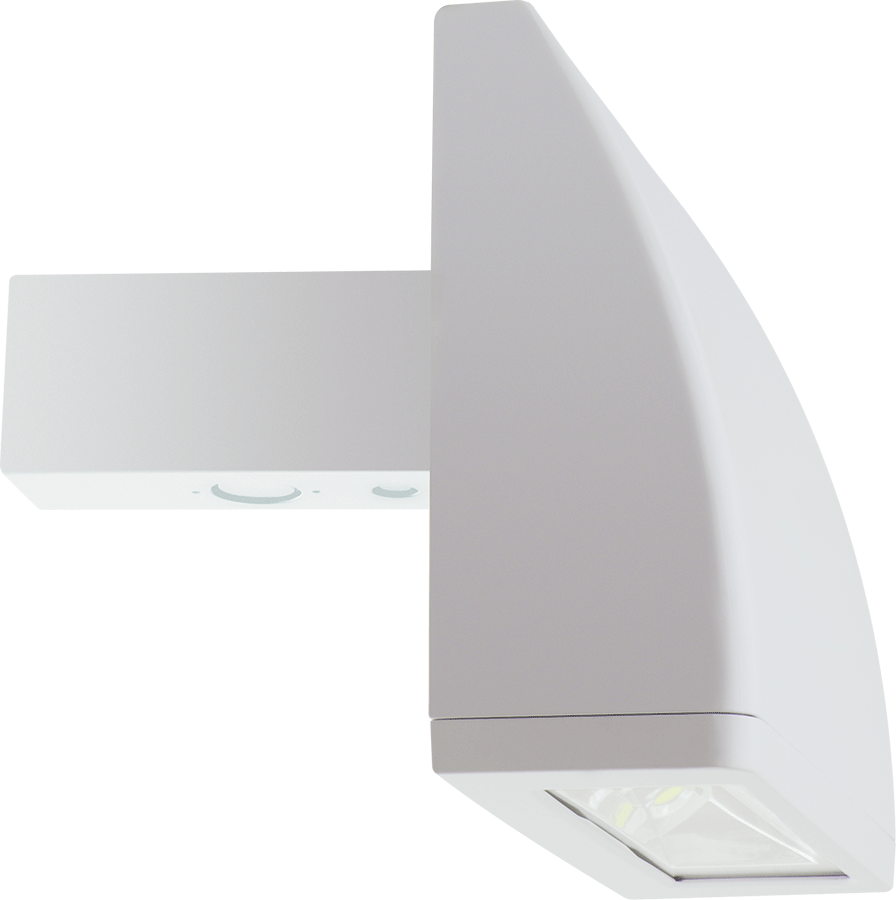

ALEDFC104N/PCT

Spec Sheet Instructions Spec Sheet

ALEDFC104N/PCT

75% energy savings

Superior heat sinking with die cast aluminum housing and external fins

100,000-hour LED lifespan

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	104W
Color Temp	4000K (Neutral)
Lumens	14,689 lm
Efficacy	132.5
Color Accuracy	74 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.95A
208V	0.59A
240V	0.51A
277V	0.44A
Input Watts	110.9W

Dimensions

Weight: 26.0 lbs

Technical Specifications

Compliance

UL Listed

UL Suitable for Wet Locations as Uplight and Downlight

IP Rating

Ingress protection rating of IP66 for dust and water

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P000017BA

LED Characteristics

LEDs

Four multi-chip, high-output, long-life LEDs

Color Consistency

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377.2011.

Electrical

Driver

Constant current, Class 1, 120-277V, 50/60 Hz, 4kV Surge Protection, 120V: 0.95A, 208V: 0.59A, 240V: 0.51A, 277V: 0.44A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

4.86% at 120V, 6.44% at 277V

Power Factor

99.7% at 120V, 92.2% at 277V

Photocell

120-277V Twistlock photocell included. Photocell is compatible with 120-277V.

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 400W Pulse Start Metal Halide

Construction

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Housing

Precision die-cast aluminum housing, lens frame

Arm

Die-cast aluminum with wiring access plate

Lens

Tempered glass

Reflector

Specular vacuum metallized polycarbonate

Gaskets

High-temperature silicone

EPA

1 Fixture: 2.0
2 Fixtures at 90°: 3.5
2 Fixtures at 180°: 4.0
3 Fixtures at 90°: 4.5
4 Fixtures at 90°: 4.5

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Other

Patents

The design of the ALEDFC104 is protected by patents pending in US, Canada, China, Taiwan and Mexico

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Optical

BUG Rating

B2 U0 G2
