• 75% energy savings
  • Superior heat sinking with die cast aluminum housing and external fins
  • 100,000-hour LED lifespan
  • 5-Year, No-Compromise Warranty
View Technical Specs
Performance
Watts 104W
Color Temp 3000K (Warm)
Lumens 13,423 lm
Efficacy 121.3
Color Accuracy 71 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V
240V
277V
Input Watts 110.6W
Dimensions
Link to Dimension Drawing

Weight: 26.0 lbs

Technical Specifications
Compliance
UL Listed
UL Suitable for Wet Locations as Uplight and Downlight
IP Rating
Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PBQS8CA3
LED Characteristics
LEDs
Four multi-chip, high-output, long-life LEDs
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377.2011.
Electrical
Driver
Constant current, Class 1, 480V, 50/60 Hz, 4kV Surge Protection, 480V: 0.4A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
16.58% at 480V
Power Factor
93.4% at 480V
Starting/Operating Amps
480V = 0.26A.
Ballast Volts
480V
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 400W Pulse Start Metal Halide
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Housing
Precision die-cast aluminum housing, lens frame
Arm
Die-cast aluminum with wiring access plate
Lens
Tempered glass
Reflector
Specular vacuum metallized polycarbonate
Gaskets
High-temperature silicone
EPA
1 Fixture: 2.0
2 Fixtures at 90°: 3.5
2 Fixtures at 180°: 4.0
3 Fixtures at 90°: 4.5
4 Fixtures at 90°: 4.5
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Other
Patents
The design of the ALED104 is protected by patents pending in US, Canada, China, Taiwan and Mexico
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Optical
BUG Rating
B2 U0 G2

Recently Viewed Products

 This is a link to the product ALEDFC104YW/480 ALEDFC104YW/480
Area Light 104W Full Cutoffwarm Led 4 X 26W 480V White
 This is a link to the product CLED2X13YMS2W CLED2X13YMS2W

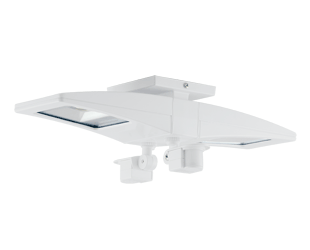

Indoor Motion Sensors 1281 Lumens Cled 26W 3000K Two Mini Sensors White
