ARBAY3-275N/PIR/8CP

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

ARBAY3-275N/PIR/8CP

High efficiency. Low price.

Ideal for industrial warehouse spaces

100,000 hour LED lifespan

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	275W
Color Temp	4000K (Neutral)
Lumens	39,765 lm
Efficacy	141.7
Color Accuracy	84 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	2.25A
208V
240V
277V
Input Watts	280.6W

EZ-Layout

Create Custom Lighting Layout

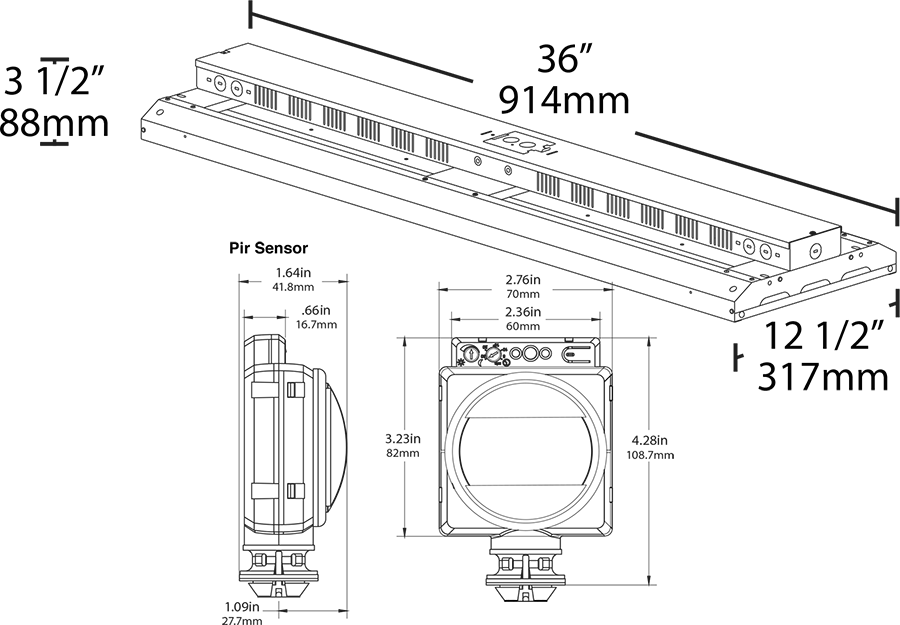

Dimensions

Weight: 18.6 lbs

Technical Specifications

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PDFDWA1H

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

LED Characteristics

LEDs

Multi-chip, high-output, long-life LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Operating Temperature

-20°C (-4°F) to 50°C (122°F)

Housing

22 gauge die formed with white powder coat finish. Y Hooks included for easy chain or cable mounting.

Reflector

White painted, reflective, die formed painted steel

Lens

Polycarbonate lens

Cord & Plug

8 ft cord and NEMA L5-15P straight blade plug for 120V only

Finish

Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

V hooks and optional pendant mounting. AEROBAY® comes with two 42" chains.

Electrical

Driver

Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 2.25A, 208V: 1.30A, 240V: 1.12A, 277V: 1.0A

THD

4.57% at 120V, 8.05% at 277V

Power Factor

99.9% at 120V, 95.3% at 277V

Surge Protection

2.5kV
For areas prone to surges, upgrade to 10kV surge protection available

Other

Replacement

Replaces 8-lamp T5HO or 575W MH

5 Yr Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Sensor Settings

Passive Infrared Occupancy and Daylight Sensor

PIR sensor with IR remote capability. High/Low bay passive infrared occupancy and daylight sensor.

UL Listed

Indoor use only

Operating Temperature

32°F to 158°F (0°C to 70°C)

Operating Humidity

5% to 96%, noncondensing

Line Voltage

LineVage for direct connection to load

Voltage

120, 277, 347V, 60Hz or 230V, single phase, 50Hz operation

Power Consumption

0.2W

Maximum Versatility

Adjustable time delay and sensitivity
Adjustable hold-off daylighting level

Weight

6.4 oz (181 g)

Hardware

UL listed snap-in mounting hardware

Mounting

Easy mounting using knockout at end of linear high bay luminaire

Lens

Lens (attached) designed for mounting heights from 15 to 40 ft

Rotatable Mask

Snap-on rotatable mask for aisleway applications (included)

Coverage

Covers a 100-foot diameter area whem mounted at height of 40 ft

Factory Default

15 minutes time delay
Max sensitivity
300 footcandle light level

Handheld Wireless Configuration Tool

Adjust settings using handheld wireless configuration tool (catalog# WSREM). Only available with 0-10V dimming driver options. Handheld wireless configuration tool available here.
