ARBAY4-175/LCS

Spec Sheet IES File Master Specification Features Spec Sheet EZ Layout

ARBAY4-175/LCS large main

ARBAY4-175/LCS

High efficiency. Low price.

Available with factory-installed Lightcloud controls

Ideal for industrial warehouse spaces

50,000 hour LED lifespan

5-Year, limited warranty and 10-Year, No-Compromise Lightcloud Warranty

View Technical Specs

View Price & Availability

Performance

Watts	175W
Color Temp	5000K (Cool)
Lumens	23,960 lm
Efficacy	135.6 lm/W
Color Accuracy	84 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	1.50A
208V	0.89A
240V	0.78A
277V	0.64A
Input Watts	176.7W

EZ-Layout

Link to Ezlayout

Create Custom Lighting Layout

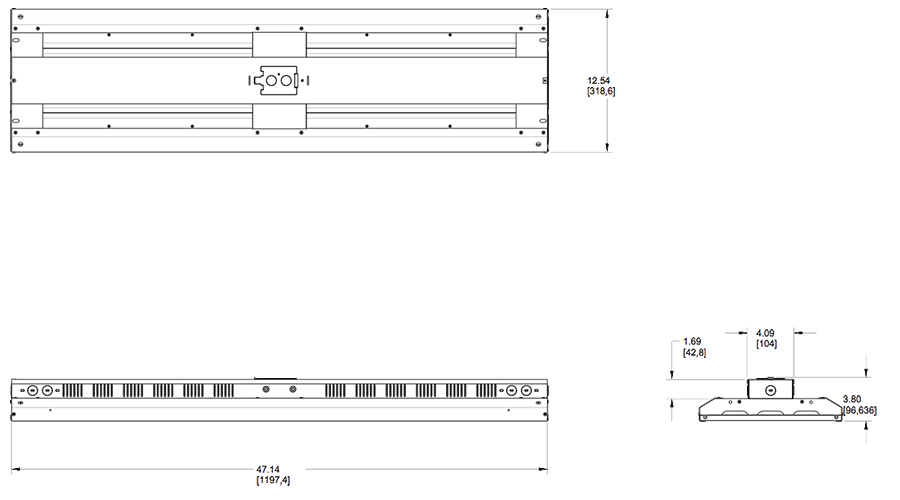

Dimensions

Link to Dimension Drawing

Weight: 24.1 lbs

Technical Specifications

Installed with Lightcloud

Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.

Lightcloud

Lightcloud Sensor Installed

Occupancy, vacancy, and closed-loop daylight harvesting in one versatile sensor. Control any fixture in your Lightcloud system. Compatible with the 8.5" reflectors. Learn more at www.lightcloud.com

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Performance

Lifespan

50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Electrical

Driver

Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 1.50A, 208V: 0.89A, 240V: 0.78A, 277V 0.64A

THD

7.4% at 120V, 8.8% at 277V

Power Factor

99.5% at 120V, 96.8% at 277V
