AURA-P8BW

Spec Sheet IES File Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

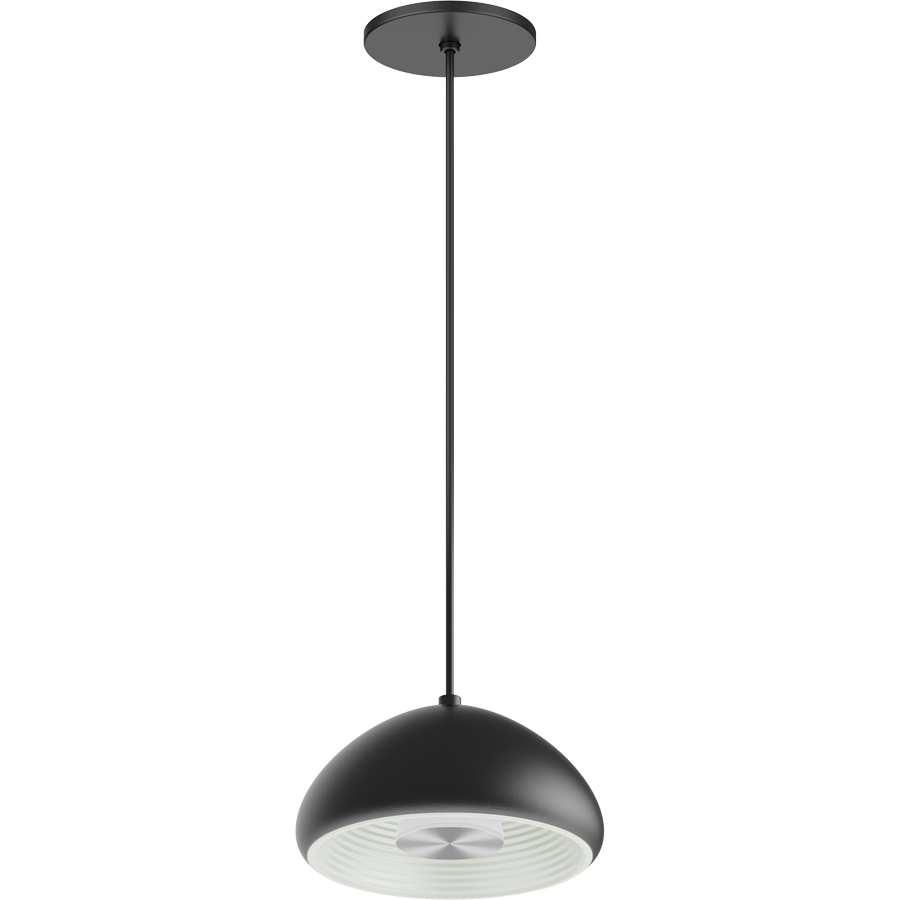

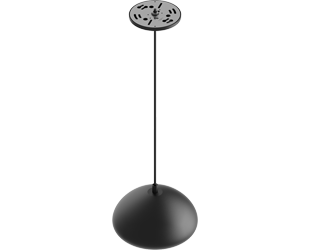

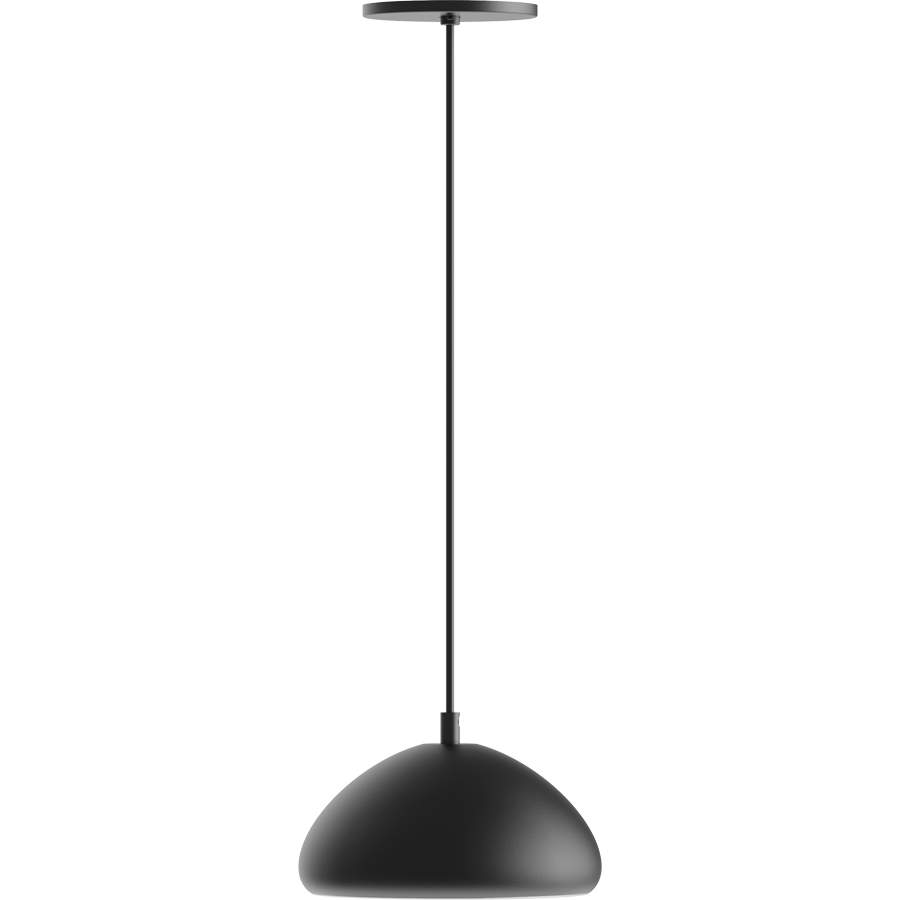

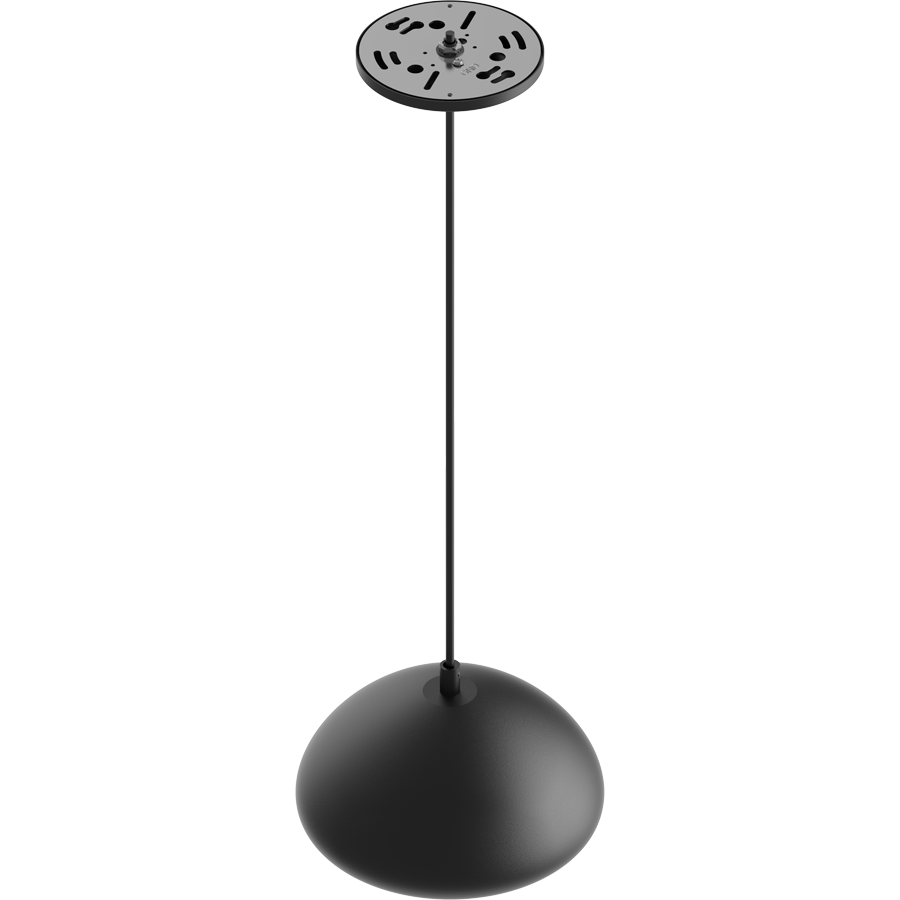

AURA-P8BW

Refined dome pendant form for a clean, architectural aesthetic in modern interior spaces

Controlled, diffused light output provides a smooth, even appearance

Integrated reflector design enhances visual comfort while minimizing glare

Versatile pendant solution for commercial, hospitality, and residential environments

50,000 hrs., AirTight, California Title 24 compliant, 5-year, no-compromise warranty

View Technical Specs

View Price & Availability

Performance

Watts	8W
Color Temp	2700K
Lumens	539 lm
Efficacy	68.3
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current, Class 2
120V	0.07A
208V
240V
277V
Input Watts	8W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.5 lbs

Technical Specifications

Performance

Product Type

Decorative Pendant Mount

Description

Versatile architectural lighting that combines refined design and smooth illumination for contemporary commercial, hospitality, residential, and retail environments.

Wattage Equivalency

30W Halogen

Input Wattage

Lumens (Nominal)

485lm

Efficacy

50-60lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, Class 2 120V 50/60; 120V: 50mA

THD

≤20%

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Operating Temperature

-4°F to 113°F(-20 to 45°C)

Flicker

≤30%

LED Characteristics

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 greater than 0

Color Consistency

<6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Pendant Mount

Construction

Size

Shape

Round

Finish

Black housing, white reflector

Enclosure Material

Metal

Compliance

ETL Listed

This product has been tested by Intertek and found in compliance with accepted national standards.

Environment

Suitable for use indoors in dry environments.

IC Rated

Air Tight

Energy Star Approved

DLC Listed

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6.

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

None

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
