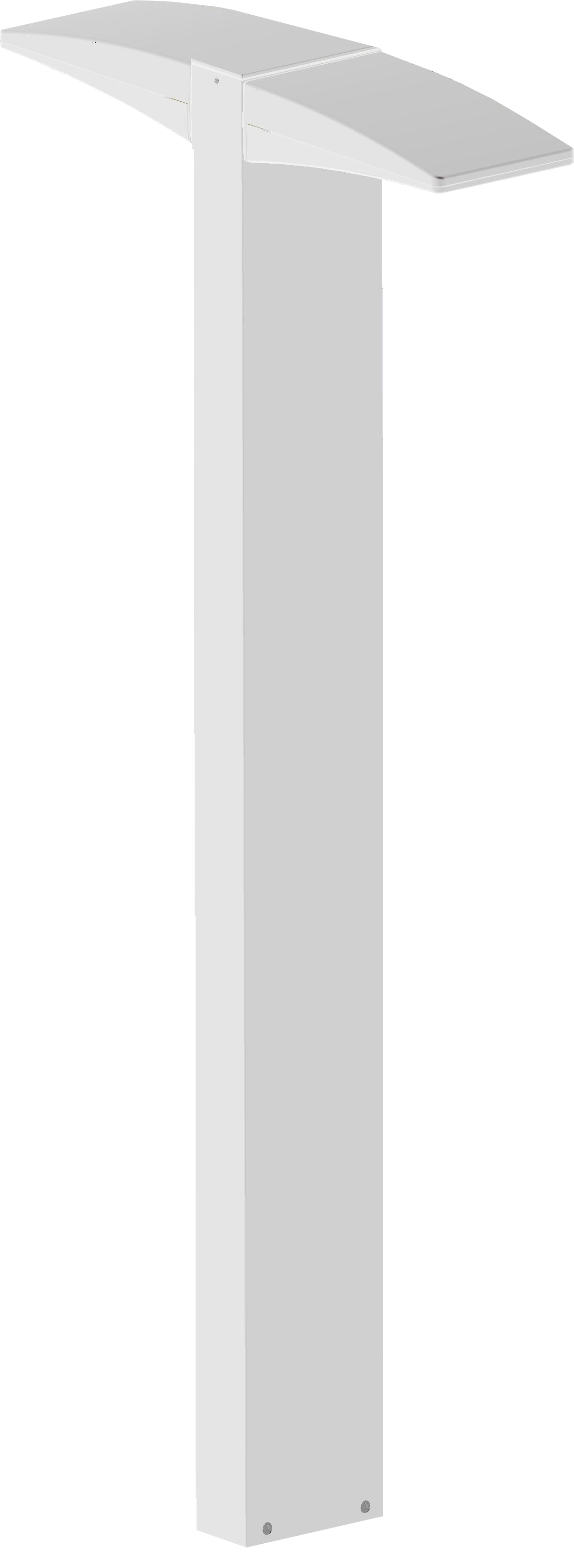

BLED2X10YW

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

BLED2X10YW

High output LED

100,000-hour life

Superior heat sinking with die cast aluminum housing

Meets ADA requirements

Cutting-edge, heat-dissipating design

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	20W
Color Temp	3000K (Warm)
Lumens	2,594 lm
Efficacy	107.2 lm/W
Color Accuracy	71 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.18A
208V	0.10A
240V	0.10A
277V	0.08A
Input Watts	24.2W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 22.0 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Electrical

Driver

Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.09A, 208V: 0.05A, 240V: 0.05A, 277V 0.04A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

6.51% at 120V, 13.57% at 277V

Power Factor

99% at 120V, 90.6% at 277V

Construction

Junction Box

Junction Box Not Included

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Maximum Ambient Temperature

Suitable for use in up to 55°C (131°F)

Housing

Precision die-cast aluminum housing, lens frame

Mounting

42" Bollard

Gaskets

High-temperature silicone

Finish

Formulated for high durability and long-lasting color

Anchor Bolt

The anchor bolts for the BLED's have the following dimensions 1/2 - 13 x 12 1/4" long with 2 3/4" hook.Available online in pdf file.

Green Technology

Mercury and UV free. RoHS-compliant components.

LED Characteristics

Color Temperature

3000K

Lumen Maintenance

The LED will deliver 70% of its initial lumens at 100,000 hours of operation

Color Consistency

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Other

Patents

The design of the BLED is protected by patents pending in Canada, U.S. Pat. D599,049, and patents pending in China and Taiwan.

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
