BLED2X5-18Y
BLED2X5-18Y
- High output LED
- 100,000-hour life
- Superior heat sinking with die cast aluminum housing
- Meets ADA Requirements
Performance
| Watts | 5W |
| Color Temp | 3000K (Warm) |
| Lumens | 256 lm |
| Efficacy | 24.4 lm/W |
| Color Accuracy | 87 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.2A |
| 208V | 0.12A |
| 240V | 0.1A |
| 277V | |
| Input Watts | 10.5W |

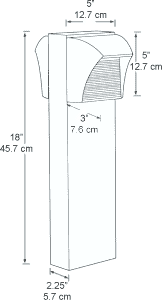

Dimensions
Weight: 9.3 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
Color Temperature
3000K (Warm)
Lumen Maintenance
The LED will deliver 70% of its initial lumens at 100,000 hours of operation
Construction
Housing
Precision die-cast aluminum housing, lens frame
Installation
Mounting
18" Bollard
Electrical
Driver
Multi-chip 2x5W high output long life LED Driver Constant Current, Class II, 120V-240V, 50/60 Hz, 400mA
