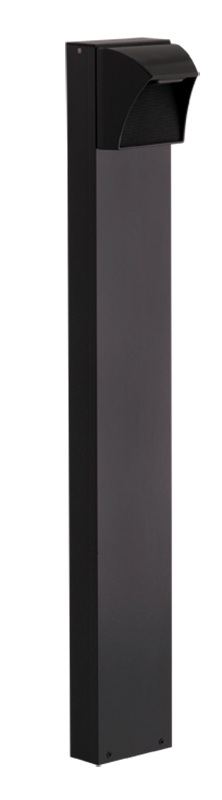

BLED5-36/PC
BLED5-36/PC large main
  • High output LED
  • 100,000-hour life
  • Superior heat sinking with die cast aluminum housing
  • Meets ADA Requirements
 View Technical Specs
View Price & Availability
Performance
Watts 5W
Color Temp 5000K (Cool)
Lumens 196 lm
Efficacy 37.7 lm/W
Color Accuracy 68 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.1A
208V
240V
277V
Input Watts 5.2W
Dimensions

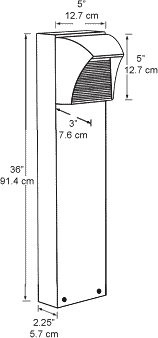

Link to Dimension Drawing

Weight: 10.8 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
Color Temperature
5000K
Construction
Thermal Management
Cast aluminum Thermal Management system for optimal heat sinking. The BLED is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature.
Electrical
Driver
Multi-chip 5W high output long life LED Driver Constant Current, Class II, 120V-240V, 50/60 Hz, 400mA
