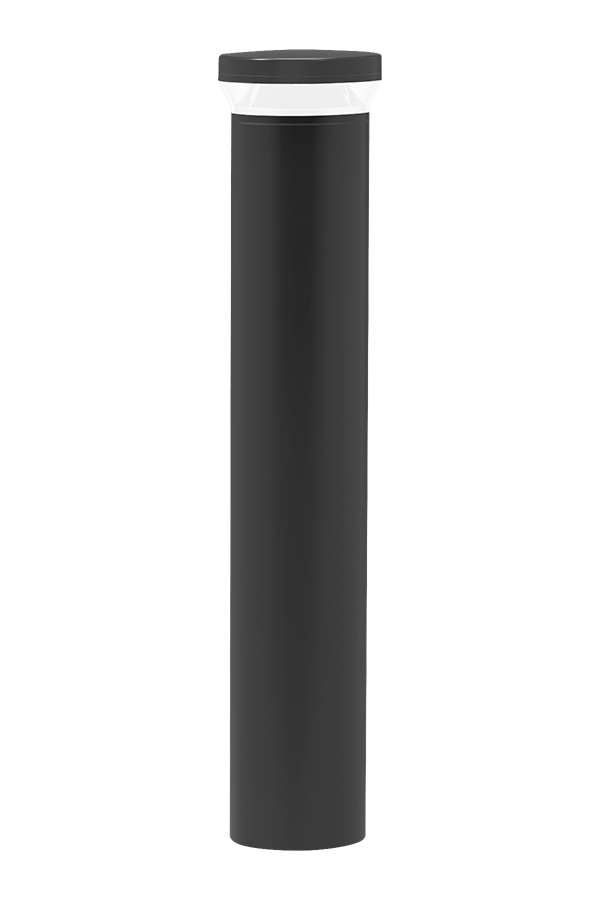

BLEDR18Y-32H/D10
BLEDR18Y-32H/D10
- Patented base mount design for super sturdy installation
- Durable construction and frosted vandal-resistant polycarbonate lens
- 4 configurations to provide 360°(24W), 270°(18W), 180°(12W) or 90°(12W) lighting pattern
- Precision-engineered optics deliver maximum downward lighting without glare
- Four leveling screws provided for easy installation
- 100,000-hour LED lifespan
Performance
| Watts | 18W |
| Color Temp | 3000K (Warm) |
| Lumens | 1,593 lm |
| Efficacy | 93.7 lm/W |
| Color Accuracy | 84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.24A |
| 208V | 0.18A |
| 240V | 0.15A |
| 277V | 0.12A |
| Input Watts | 17W |

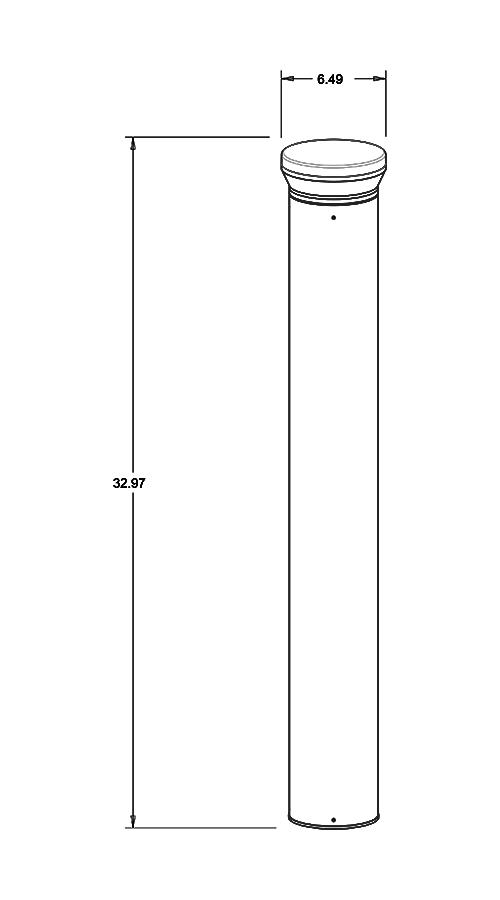

Dimensions
Weight: 22.4 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
BUG Rating
B1 U3 G2
Construction
Height
32"
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Electrical
Driver
Constant Current, Class 2, 100-277V, 50/60 Hz, 4kV Surge Protection, 700mA, 120V: 0.24A, 208V: 0.18A, 240V: 0.15A, 277V: 0.12A
THD
6.5% at 120V, 10.4% at 277V
Power Factor
99.5% at 120V, 89.7% at 277V
