• Ultra-slim profile fits tight joist spaces for fast, low-profile installation
  • IC rated for direct contact with insulation, no clearance required
  • Quick Connector simplifies trim wiring — no tools, no guesswork
  • Airtight housing certified to ASTM E283 for energy-efficient performance
  • Compatible with 4" and 6" LED retrofit trims
View Technical Specs
Dimensions
Link to Dimension Drawing

Weight: 1.8 lbs

Technical Specifications
Performance
Product Type
Shallow LED New Construction Housings
Description

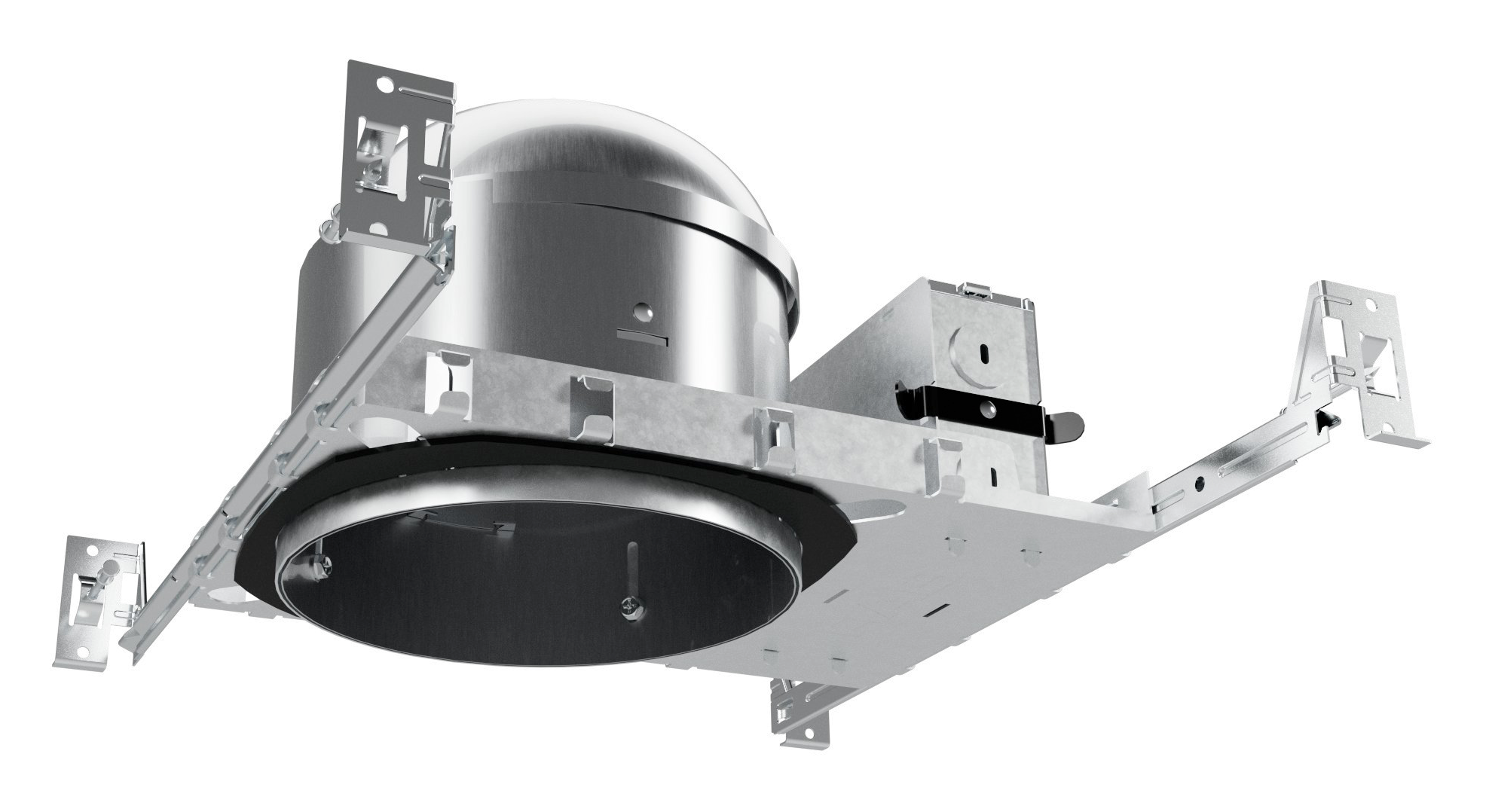

Ultra-slim IC-rated new construction housings designed for tight joist spaces. Available in 4" and 6" sizes with quick connector for seamless LED trim compatibility.
Electrical
Input Voltage
120/277V
Installation
Mounting
Recessed
Base Type
Quick Connector
Construction
Size
6"
Shape
Round
Housing
0.040 aluminum housing with riveted cap adjusts for ceiling thicknesses from 5/8" to 1-1/4"
Nailer Bars
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on frame. Hanger bars have T-Bar slot and alignment feet. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. "L" Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allows easy installation in a suspended ceiling.
Junction Box
Prewired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2" trade size knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box.
Romex Strain Relief
Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Compliance
Listings
UL Listed, UL Recognized
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Air Tight
Housing certified Air Tight as per ASTM E283
California Energy Commission (CEC) Status
Lawful for Sales in California
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
