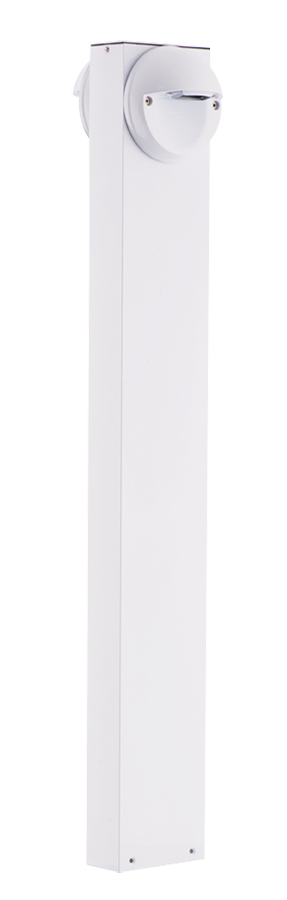

BLEDR2X5-36NW
BLEDR2X5-36NW
- High output LED
- 100,000-hour life
- Superior heat sinking with die cast aluminum housing
- Meets ADA Requirements
Performance
| Watts | 5W |
| Color Temp | 4000K (Neutral) |
| Lumens | 310 lm |
| Efficacy | 29.2 lm/W |
| Color Accuracy | 85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.2A |
| 208V | 0.12A |
| 240V | 0.1A |
| 277V | |
| Input Watts | 10.6W |
Dimensions
Weight: 11.7 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
Color Temperature
4000K
Lumen Maintenance
The LED will deliver 70% of its initial lumens at 100,000 hours of operation
Construction
Housing
Precision die-cast aluminum housing, lens frame
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Installation
Mounting
36" Bollard
Electrical
Driver
Multi-chip 2x5W high output long life LED Driver Constant Current, Class II, 120V-240V, 50/60 Hz, 400mA
