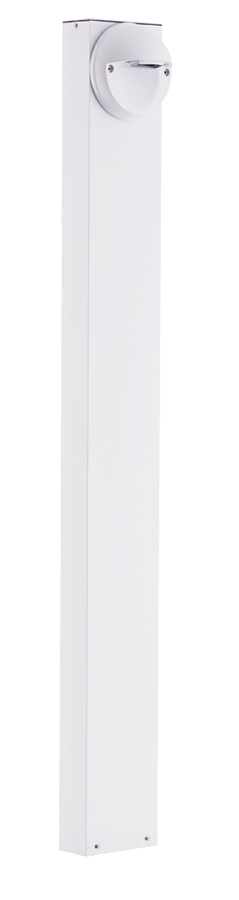

BLEDR5-42W/PC
BLEDR5-42W/PC
- High output LED
- 100,000-hour life
- Superior heat sinking with die cast aluminum housing
- Meets ADA Requirements
Performance
| Watts | 5W |
| Color Temp | 5000K (Cool) |
| Lumens | 213 lm |
| Efficacy | 41 lm/W |
| Color Accuracy | 68 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.1A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 5.2W |
Dimensions
Weight: 11.8 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Electrical
Driver
Multi-chip 5W high output long life LED Driver Constant Current, Class II, 120V-240V, 50/60 Hz, 400mA
Photocell
120V Button photocell included. Photocell is only compatible with 120V.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 13W CFL or 60W Incandescent
Construction
Thermal Management
Cast aluminum Thermal Management system for optimal heat sinking. The BLED is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature.
Housing
Precision die-cast aluminum housing, lens frame
Mounting
42" Bollard
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Gaskets
High-temperature silicone
Finish
Formulated for high durability and long-lasting color
Anchor Bolt
The anchor bolts for the BLED's have the following dimensions 1/2 - 13 x 12 1/4" long with 2 3/4" hook.Available online in pdf file.
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
Lumen Maintenance
The LED will deliver 70% of its initial lumens at 100,000 hours of operation
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
