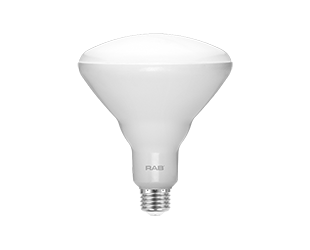

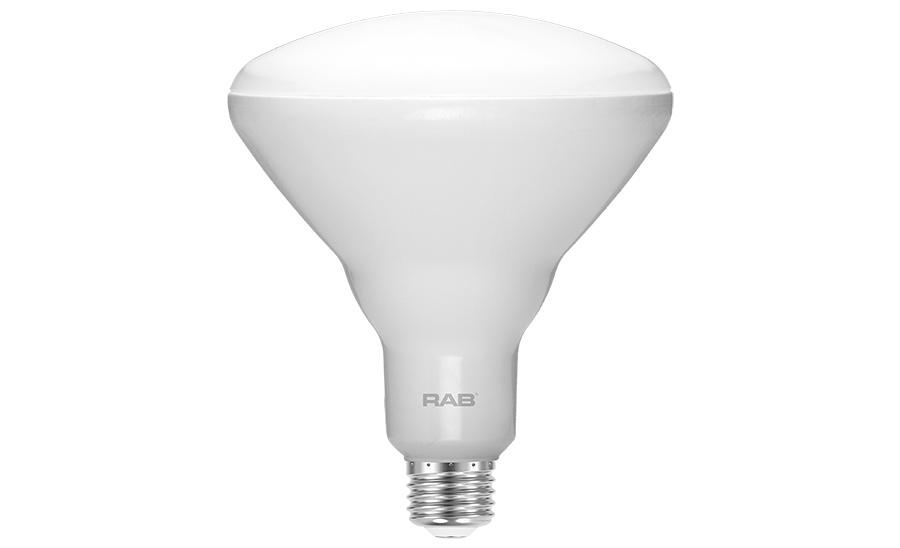

BR40-11-950-DIM
BR40-11-950-DIM
- Energy efficient replacement for incandescent and halogen reflector lamps
- Constructed from durable plastic which lowers risk of breakage
- Rated for use in enclosed and open fixtures in dry or damp locations
- Frosted lens produces smooth diffuse light
- Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs
- ENERGY STAR Compliant
- Dimmable with common dimmer types (see Dimmer Compatibility List)
Performance
| Watts | 11W |
| Color Temp | 5000K (Daylight) |
| Lumens | 900 lm |
| Efficacy | 81.8 lm/W |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 25,000 Hours |
| Input Voltage | 120V |
| Power Factor | 0.9 |
| Flicker | <30% |
| THDi | N/A |
| R9 | 50 |

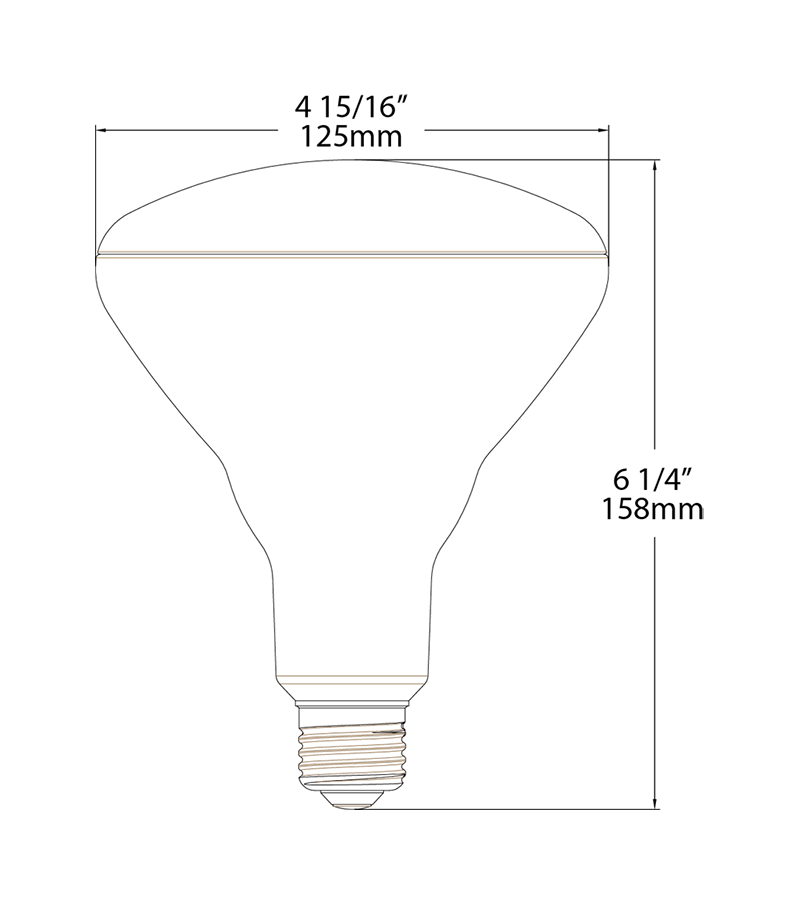

Dimensions
Weight: 0.6 lbs
Technical Specifications
Performance
Product Type
Reflector
Input Wattage
11W
Wattage Equivalency
65W Incandescent
Lumens
900lm
Efficacy
82lm/W
L70 Lifespan
25,000 Hours
Construction
Shape
BR40
For Use Outdoors in Open Fixtures
No
LED Characteristics
Color Temperature
5000K Daylight
Color Accuracy (CRI)
90 CRI
Beam Angle
110°
Installation
Base Type
E26 Edison
Electrical
Power Factor
0.9
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Dimmable
Yes, down to 10%
Input Voltage
120V
Input Current @ 120V
92mA
Operating Frequency
60 Hz
Flicker
<30%
Other
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
UL Listed
Yes
Energy Star Approved
This product is ENERGY STAR® Version 2.0 Certified
Energy Star ID
2330059
California Energy Commission (CEC) Status
Lawful for Sales in California
