• High Performance LEDs for commercial applications
  • Replacement for traditional compact fluorescent recessed downlights
  • Compatible with new construction or retrofit installations
  • UL wet and Energy Star rated
  • Meets air-tight requirements
  • Lumen and Color Temperature Selectable
  • Matte white smooth trim finish
  • Available in 3 color temperatures: 3000K, 3500K, 4000K
  • 0 - 10V dimmable
  • Spring loaded retention clips
  • 25-inch Flexible conduit
  • 5-Year, No-Compromise Warranty
View Technical Specs
Performance
Watts 7W
Color Temp 3000K (Warm)
Lumens 700/1000/1500 lm
Efficacy 100
Color Accuracy 90 CRI
L70 Lifespan 50,000 Hours
Type Constant Current
120V 0.15A
208V 0.096A
240V 0.085A
277V 0.072A
Input Watts 7/10/18W
Dimensions

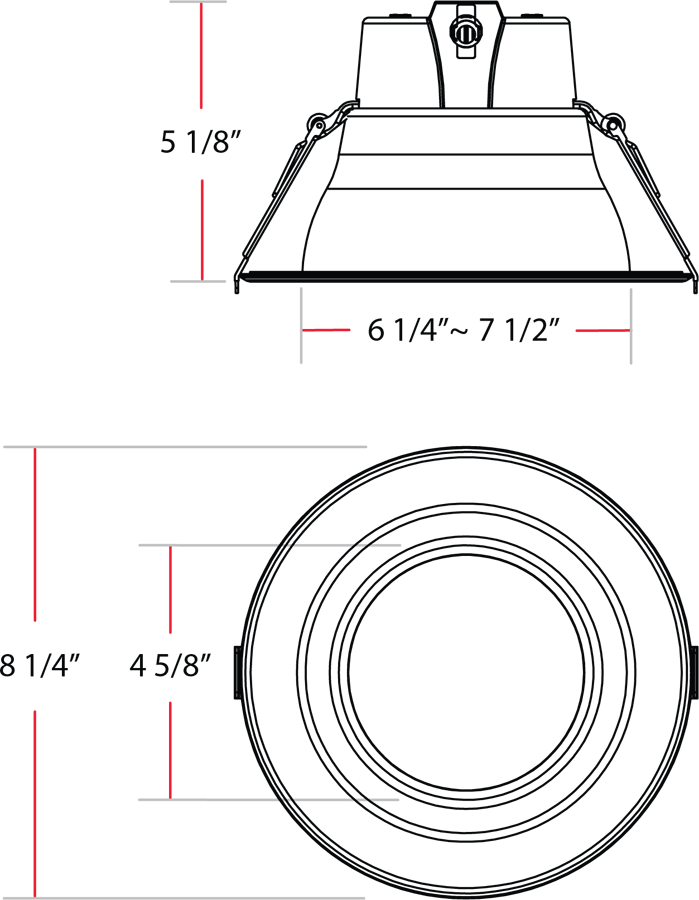

Link to Dimension Drawing

Weight: 1.4 lbs

Technical Specifications
Compliance
UL Listed & UL Classified
Suitable for wet locations
Energy Star Approved
ENERGY STAR® Version 2.2 Certified
Certification Model Number
DLC0029
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
<20%
Power Factor
≥0.9
