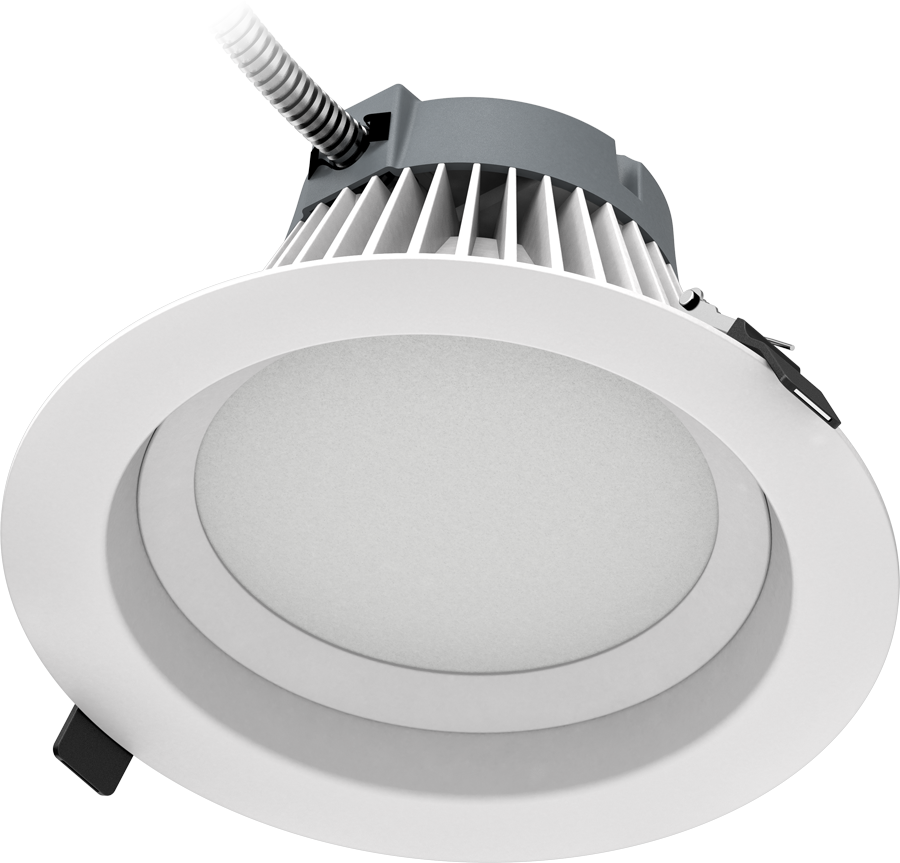

C8R33830UNVW
C8R33830UNVW
- High Performance LEDs for commercial applications
- Replacement for traditional compact fluorescent recessed downlights
- Compatible with new construction or retrofit installations
- UL wet and Energy Star rated
- Meets air-tight requirements
- Matte white smooth trim finish
- Available in 3 color temperatures: 3000K, 3500K, 4000K
- 0 - 10V dimmable
- Spring loaded retention clips
- 25-inch Flexible conduit
- 5-Year, No-Compromise Warranty
Performance
| Watts | 33W |
| Color Temp | 3000K (Warm) |
| Lumens | 3,530 lm |
| Efficacy | 106.0606061 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.32A |
| 208V | 0.176A |
| 240V | 0.153A |
| 277V | 0.14A |
| Input Watts | 31.9W |
Dimensions
Weight: 3.1 lbs
Technical Specifications
Compliance
UL Listed & UL Classified
Suitable for wet locations
Energy Star Approved
ENERGY STAR® Version 2.2 Certified
Certification Model Number
DLC0011
Energy Star ID
2350048
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
<20%
Power Factor
≥0.9
THDi
Produces less than 20% THD
PF
≥0.9
Input Voltage
120V through 277V
Flicker
Silent and flicker free operations of less than 30%
Operating Frequency (Hz)
50/60Hz
Performance
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
2 X 42W CFL
Construction
Air Tight
Housing certified Air Tight as per ASTM-E283
Housing
Made from precision die-cast aluminum construction, dissipates heat from electrical components
Cold Weather Starting
The minimum starting temperature is -22°F (-30°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Green Technology
Mercury and UV free. RoHS-compliant components.
Lens
Diffuse Polystyrene lens produces smooth uniform light that is glare free
Finish
Matte White
LED Characteristics
Beam Angle
90°±10°
LEDs
Long-life, high-efficacy, surface-mount LEDs
Installation
Mounting
Robust retention clips spring loaded tabs ensure the fixture is securely installed. Can be installed in 1/4" to 1 1/2" thick ceilings.
Other
Template
Template included for easy ceiling cut out
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Accessories
DLPLATE/T: New Construction or Remodel Plate for T-Grid ceilings for use with 6" and 8" Models
DLPLATE/SJ: New Construction Plate for Stud/Joist mounting for use with 6" and 8" Models
DL8-10GOOF/R/P: 10" Goof Ring for 8" Commercial Downlight
DL8-12GOOF/R/P: 12" Goof Ring for 8" Commercial Downlight
DLPLATE/SJ: New Construction Plate for Stud/Joist mounting for use with 6" and 8" Models
DL8-10GOOF/R/P: 10" Goof Ring for 8" Commercial Downlight
DL8-12GOOF/R/P: 12" Goof Ring for 8" Commercial Downlight
