CANVAS78SF/D10

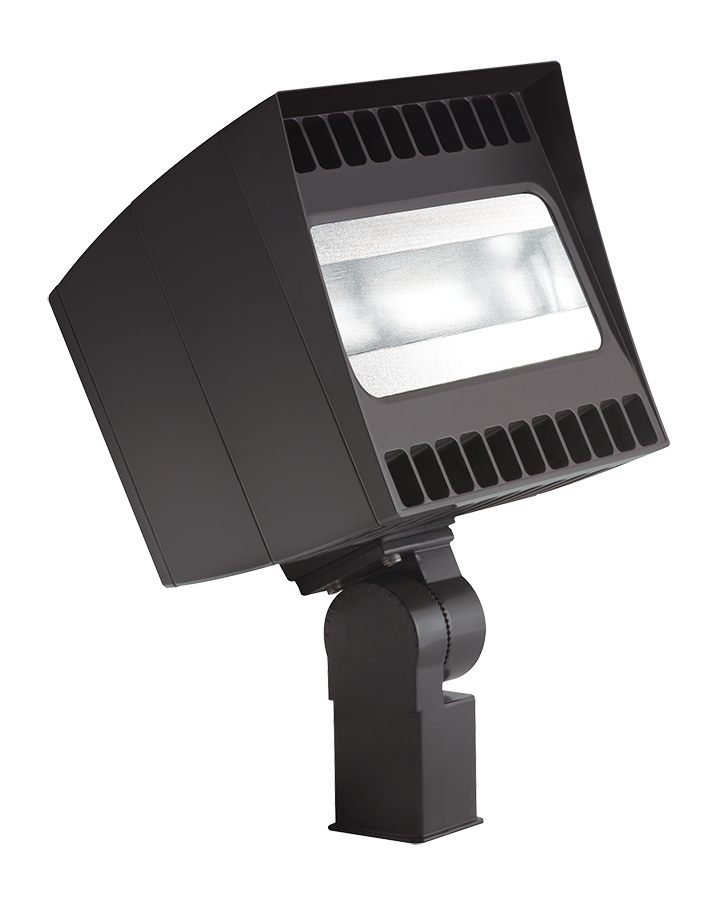

CANVAS78SF/D10 large main
  • Replaces 250W MH Floodlights
  • NEMA Type 6H x 4V ideal for signage & facades
  • Ultra-low field-to-beam ratio concentrates light where it's required
  • Microprismatic diffusion lens optimizes light output without glare
  • Superior thermal management with patent-pending "Airflow" technology
  • 100,000-Hour LED lifespan
 View Technical Specs
View Price & Availability
Performance
Watts 78W
Color Temp 5000K (Cool)
Lumens 9,529 lm
Efficacy 123 lm/W
Color Accuracy 72 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.67A
208V 0.38A
240V 0.33A
277V 0.31A
Input Watts 77.5W
Dimensions
Link to Dimension Drawing

Weight: 26.6 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IP Rating
Ingress protection rating of IP66 for dust and water
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PXFY3K7U
Construction
Effective Projected Area
EPA = 1.2
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Electrical
Driver
Constant current, Class2, 100-277V. 50/60 Hz, 6kV Surge Protection, 120-277V, 120V: 0.67A, 208V: 0.38A, 240V: 0.33A, 277V: 0.31A
THD
2.68% at 120V, 8.11% at 277V
Power Factor
99.8% at 120V, 92.9% at 277V
