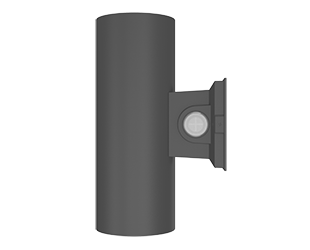

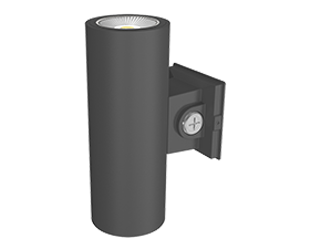

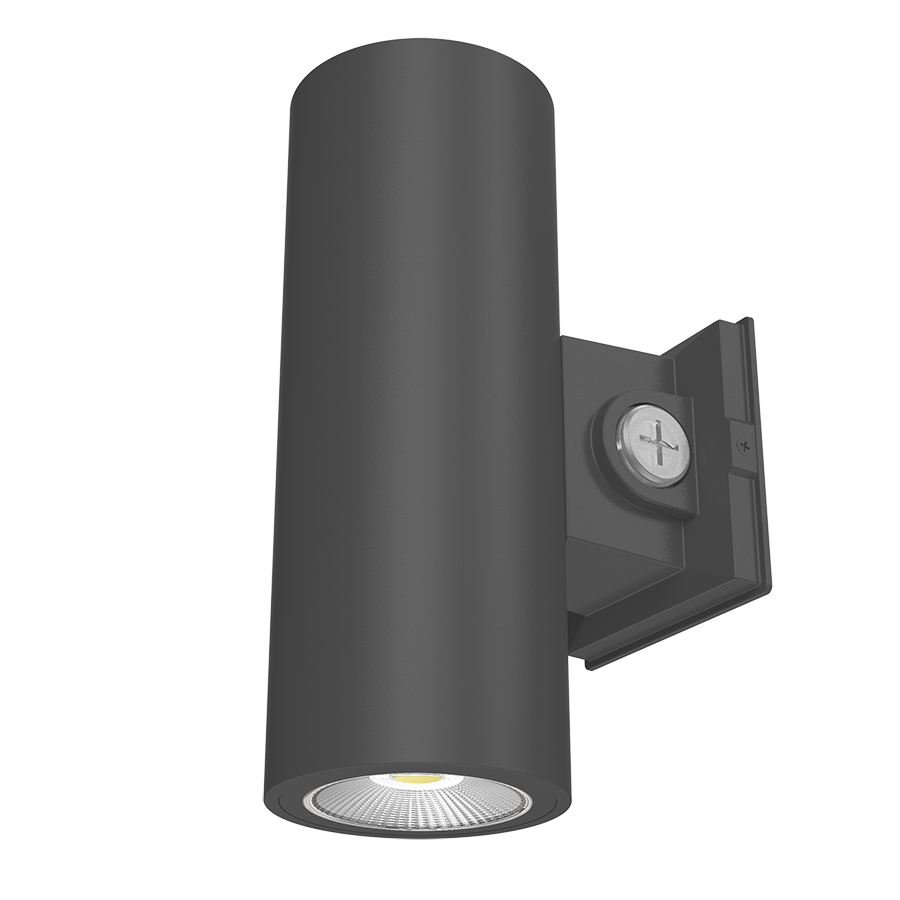

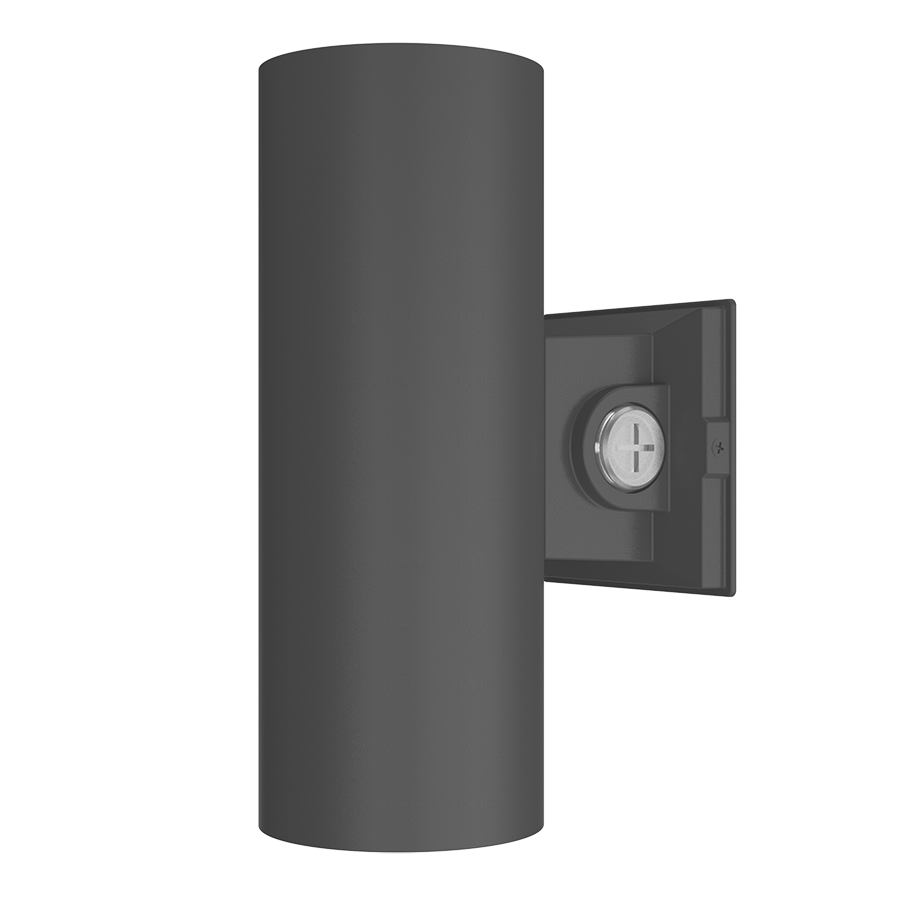

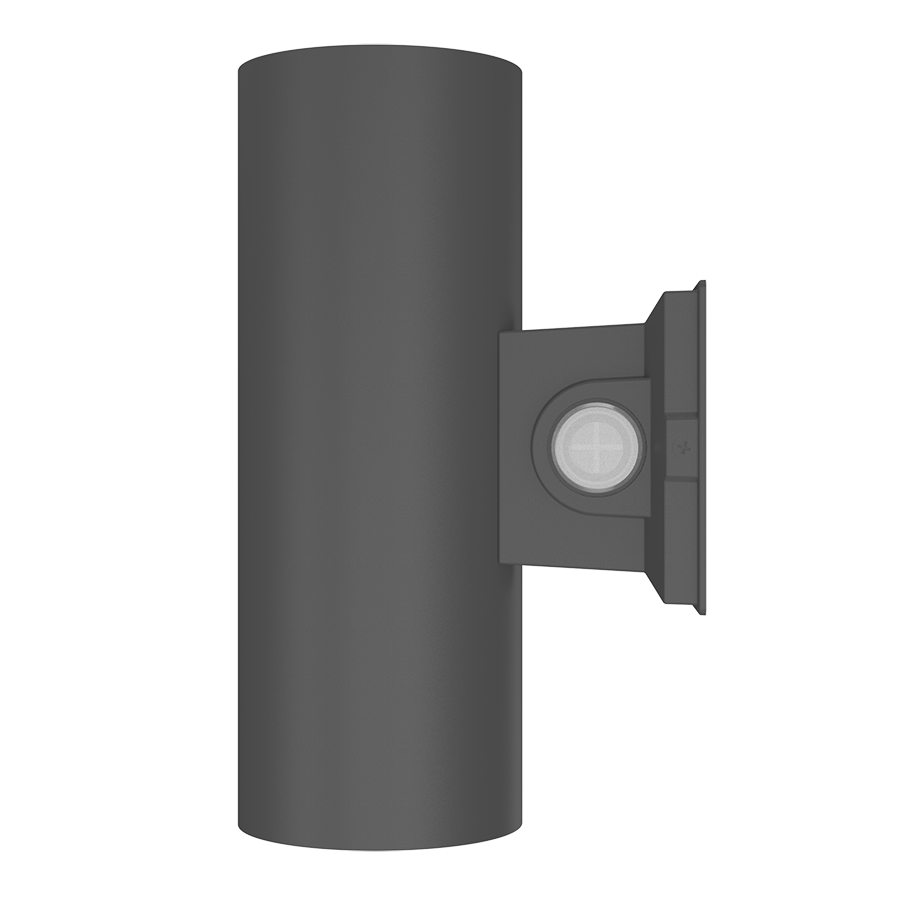

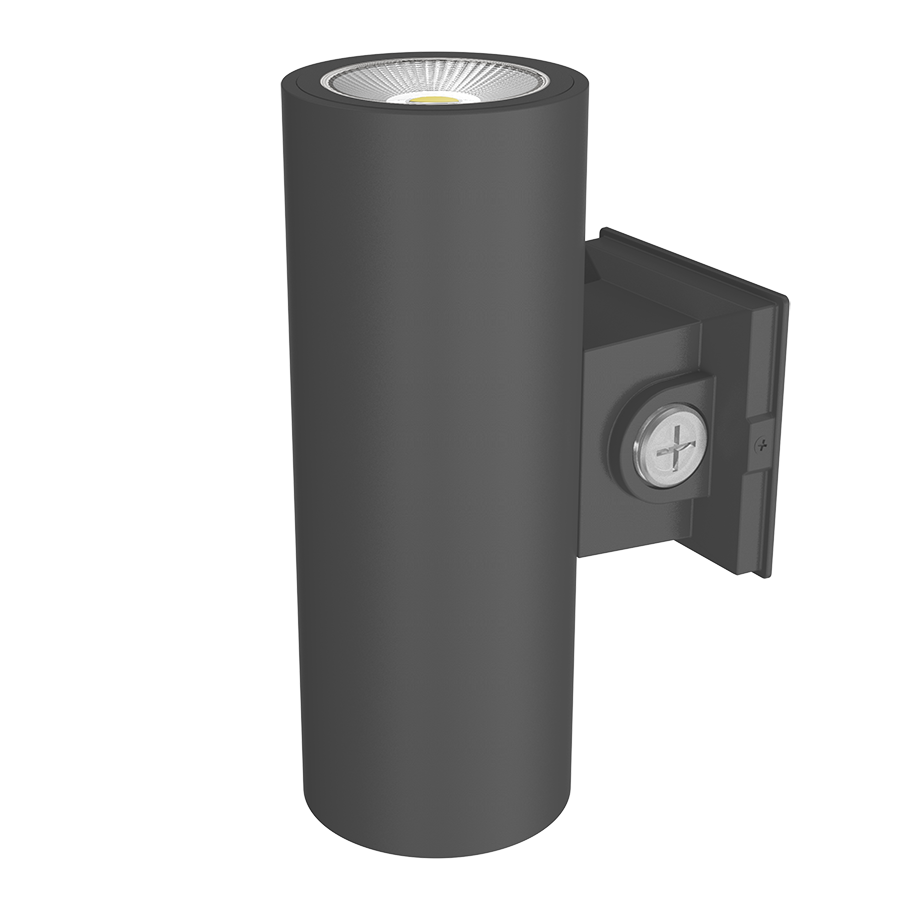

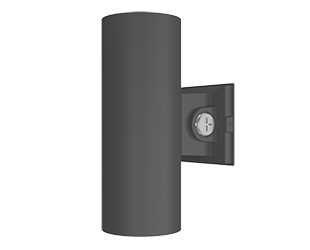

CD34-4WZ
CD34-4WZ
- Aluminum extrusion housing and die-cast covers available in black, bronze, or white
- Field interchangeable optics sold separately for 25°/40°/60° beam angle
- Field-adjustable color temperature 3000/4000/5000K (indoor); 2700/3000/3500/4000/5000K (outdoor).
- Dimmable on 0-10V systems (indoor); integrated photocell (outdoor)
Performance
| Watts | 20/16/12WW |
| Color Temp | 3000K/4000K/5000K |
| Lumens | 2000/1600/1200 lm |
| Efficacy | 100 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.17A |
| 208V | 0.10A |
| 240V | 0.09A |
| 277V | 0.08A |
| Input Watts | 20/16/12WW |
Dimensions
Weight: 4.1 lbs
Technical Specifications
Performance
Product Type
Cylinder Wall Mount
Description
Economical cylinders with field-adjustable color temperature, power and light distribution along with field-swappable optics to fit any indoor or outdoor application.
Wattage Equivalency
125/100/75W
Input Wattage
20/16/12W
Nominal Lumens
2000/1600/1200lm
Efficacy
100lm/W
Lifespan
50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Electrical
Driver
Constant Current, 50-60 Hz, 120V-277V
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 5% on compatible 0-10V dimming systems. See Dimmer Compatibility List. Requires separate 0-10V DC dimming circuit.
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
165mA
Input Current @ 208V (mA)
98mA
Input Current @ 240V (mA)
85mA
Input Current @ 277V (mA)
75mA
Operating Temperature
-40°F to 120°F (-40°C to 45°C)
Flicker
≤1%
Photocell
Integrated photocell included with on/off switch
LED Characteristics
Beam Angle
40° (installed)
Field swappable optics sold separately for 25°/40°/60° beam angle_
Field swappable optics sold separately for 25°/40°/60° beam angle_
Light Distribution
Selectable dip switch for up, down, or up/down light
Color Temperature
3000/4000/5000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
<6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Mounting
Wall mount
Construction
Size
4"
Shape
Cylinder
Finish
Bronze
Enclosure Material
Die-casting aluminum + PC
Lens Finish
Clear (installed)
Frosted lens accessory sold separately
Frosted lens accessory sold separately
Compliance
Listings
UL Listed
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
Fixture Rating
Suitable for use in open fixtures
IP Rating
IP65
Energy Star Approved
No
DLC Listed
No
Certification Model Number
CD2006(CD34-4WZ)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Accessories
CD34REF-425D
25° reflector
CD34REF-440D
40° reflector
CD34REF-460D
60° reflector
CD34LENS-4FRW
4" frosted lens white
CD34LENS-4FRK
4" frosted lens black
CD34LENS-4FRZ
4" frosted lens bronze
25° reflector
CD34REF-440D
40° reflector
CD34REF-460D
60° reflector
CD34LENS-4FRW
4" frosted lens white
CD34LENS-4FRK
4" frosted lens black
CD34LENS-4FRZ
4" frosted lens bronze
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
