CD34-6WW

Spec Sheet IES File LM79 Instructions Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet EZ Layout

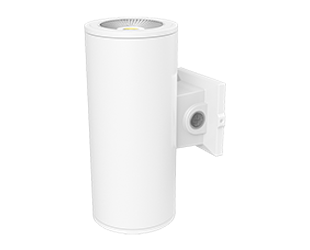

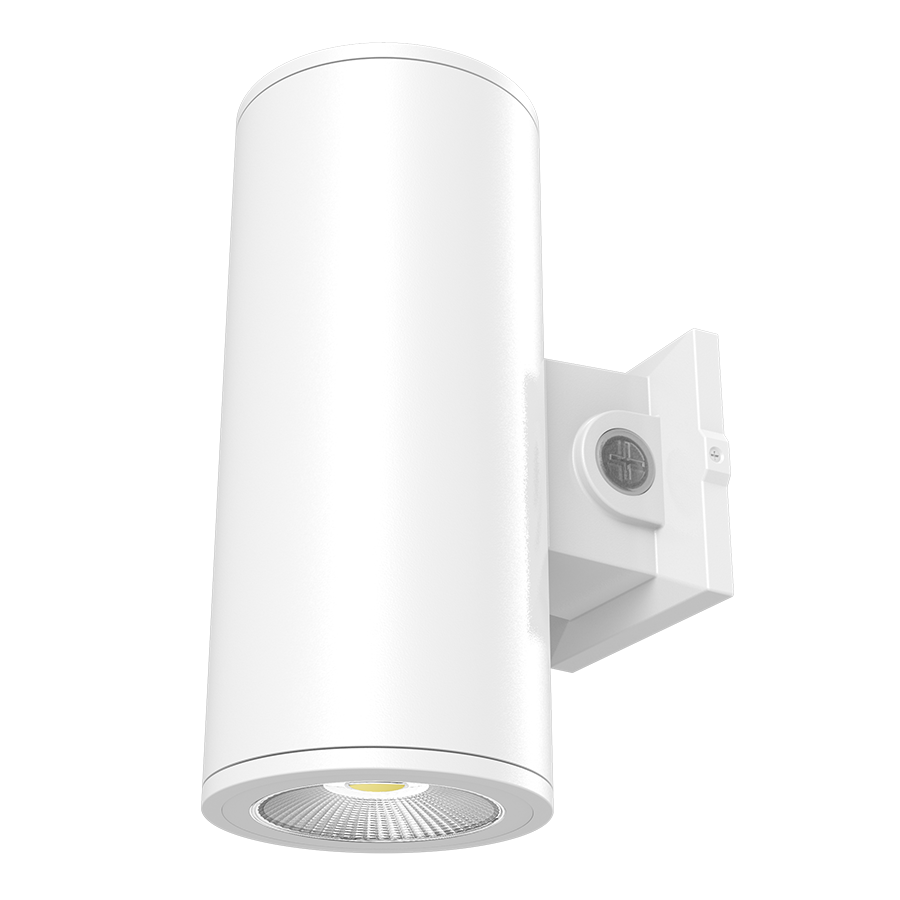

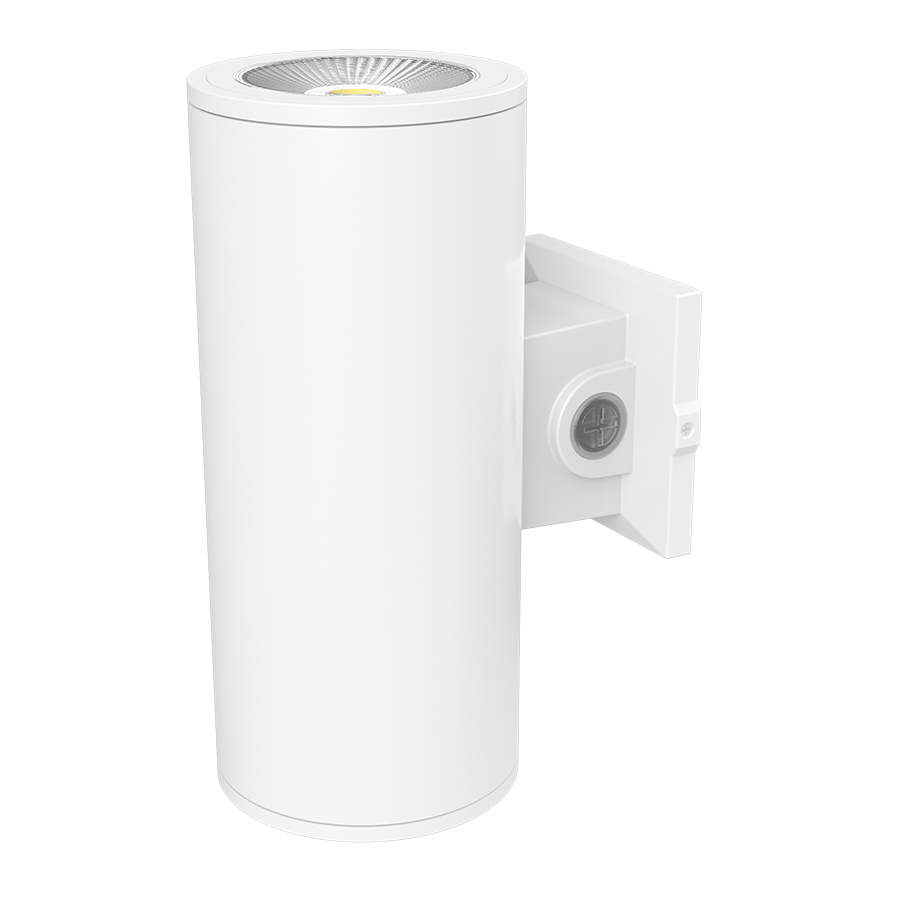

CD34-6WW

Aluminum extrusion housing and die-cast covers available in black, bronze, or white

Field interchangeable optics sold separately for 25°/40°/60° beam angle

Field-adjustable color temperature 3000/4000/5000K (indoor); 2700/3000/3500/4000/5000K (outdoor).

Dimmable on 0-10V systems (indoor); integrated photocell (outdoor)

View Technical Specs

View Price & Availability

Performance

Watts	36/28/22WW
Color Temp	3000/4000/5000K
Lumens	3300/2750/2100 lm
Efficacy	95
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.30A
208V	0.17A
240V	0.15A
277V	0.13A
Input Watts	36/28/22WW

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 6.3 lbs

Technical Specifications

Performance

Product Type

Cylinder Wall Mount

Description

Economical cylinders with field-adjustable color temperature, power and light distribution along with field-swappable optics to fit any indoor or outdoor application.

Wattage Equivalency

200/180/140W

Input Wattage

36/28/22W

Nominal Lumens

3300/2750/2100lm

Efficacy

95lm/W

Lifespan

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Electrical

Driver

Constant Current, 50-60 Hz, 120V-277V

THD

≤20%

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 5% on compatible 0-10V dimming systems. See Dimmer Compatibility List. Requires separate 0-10V DC dimming circuit.

Input Voltage

120-277V

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

300mA

Input Current @ 208V (mA)

169mA

Input Current @ 240V (mA)

146mA

Input Current @ 277V (mA)

127mA

Operating Temperature

-40°F to 120°F (-40°C to 45°C)

Flicker

≤1%

Photocell

Integrated photocell included with on/off switch

LED Characteristics

Beam Angle

60° (installed)
Field swappable optics sold separately for 25°/40°/60° beam angle_

Light Distribution

Selectable dip switch for up, down, or up/down light

Color Temperature

3000/4000/5000K

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 greater than 0

Color Consistency

<6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Mounting

Wall mount

Construction

Size

Shape

Cylinder

Finish

White

Enclosure Material

Die-casting aluminum + PC

Lens Finish

Clear (installed)
Frosted lens accessory sold separately

Compliance

Listings

UL Listed

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

Fixture Rating

Suitable for use in open fixtures

IP Rating

IP65

Energy Star Approved

DLC Listed

Certification Model Number

CD2001(CD34-6WW)

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

CD34REF-625D
25° reflector

CD34REF-640D
40° reflector

CD34REF-660D
60° reflector

CD34LENS-6FRW
6" frosted lens white

CD34LENS-6FRK
6" frosted lens black

CD34LENS-6FRZ
63" frosted lens bronze

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
