T10EM-48

Spec Sheet IES File LM79 Spec Sheet EZ Layout

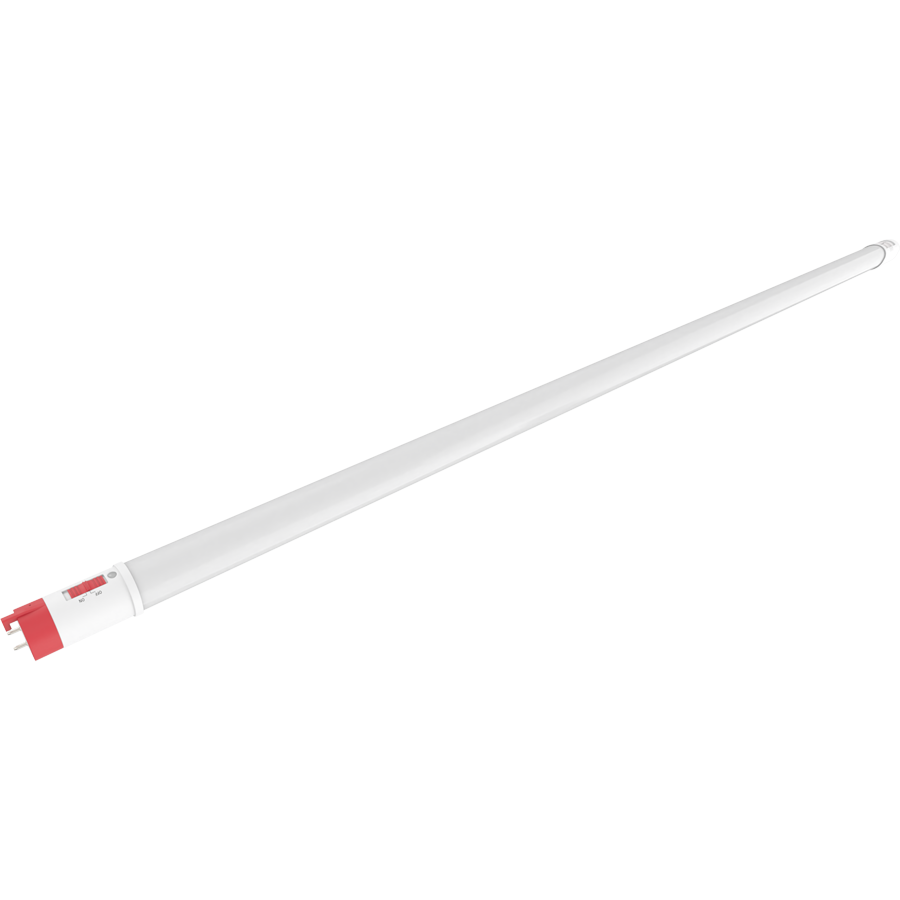

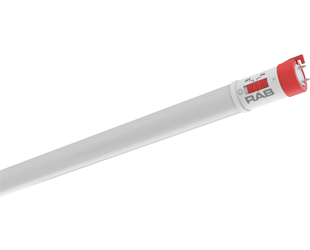

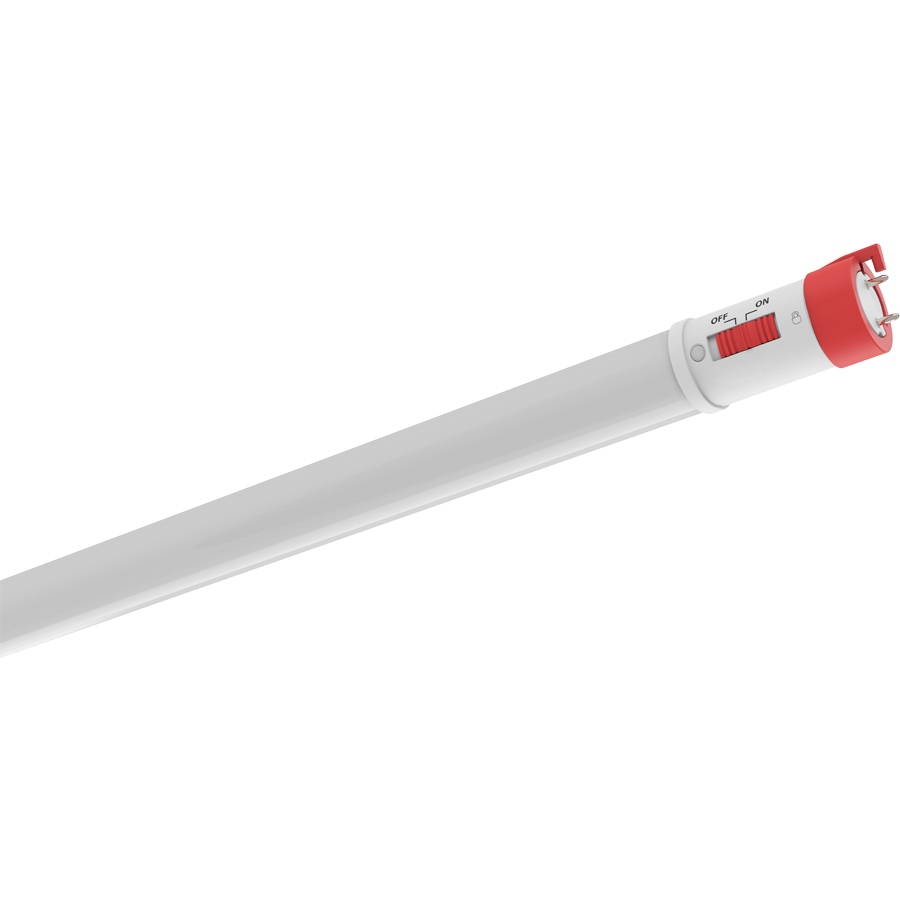

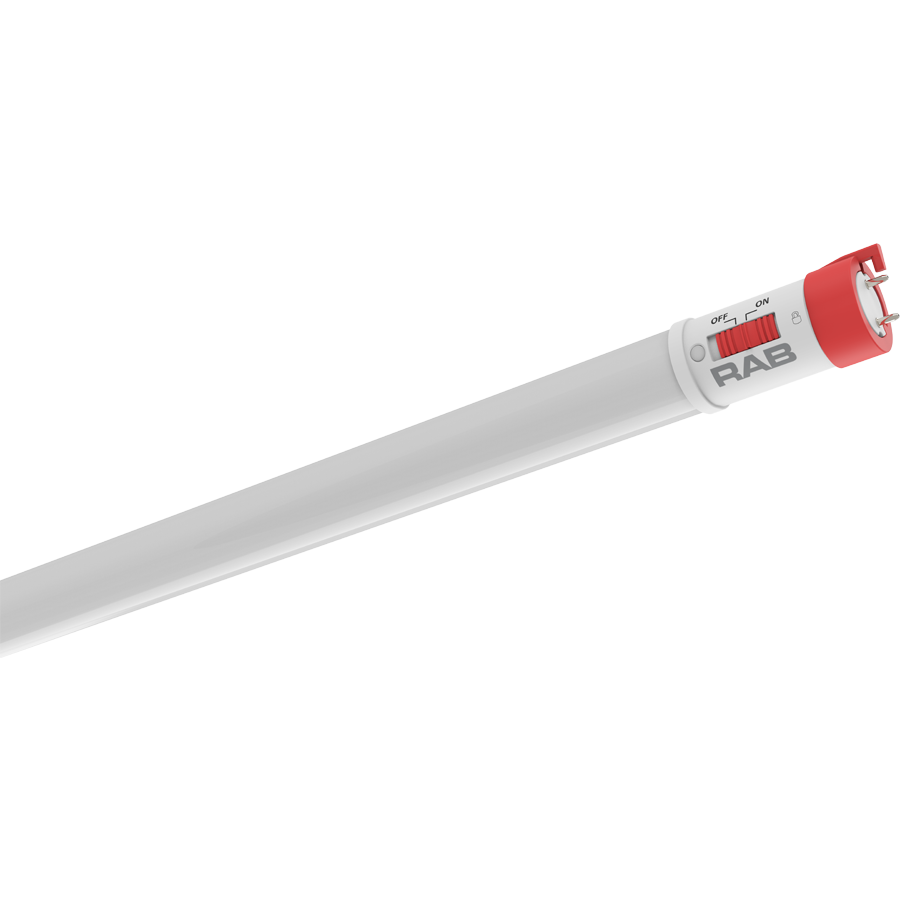

T10EM-48

Replace traditional fluorescent linear tubes

Built-in lithium batteries for emergency lighting

Provides 90 minutes of light at 400 lumens under emergency use

Reduces maintenance and replacement costs with longer lifespan

Includes tombstones and test button

View Technical Specs

View Price & Availability

Performance

Watts	9/8/07W
Color Temp	3000/3500/4000/5000/6500K
Lumens	1,500-2,200 lm
Efficacy	125-138 lm/W
Color Accuracy
L70 Lifespan	50,000 Hours

Input Voltage	N/A
Power Factor	N/A
Flicker	N/A
THDi	N/A

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.0 lbs

Technical Specifications

Performance

Product Type

T10 Linear Emergency

Wattage Equivalency

32W Fluorescent

Input Wattage

16/14/12W; 12W default

Lumens (Nominal)

12W:
1500lm @ 3000K; 1550lm @ 3500K;
1650lm @ 4000K;
1650lm @ 5000K;
1550lm @ 6500K

14W:
1750lm @ 3000K;
1800lm @ 3500K;
1900lm @ 4000K;
1900lm @ 5000K;
1800lm @ 6500K

16W:
2100lm @ 3000K;
2150lm @ 3500K;
2200lm @ 4000K;
2200lm @ 5000K;
2150lm @ 6500K

Efficacy

12W: 125lm/W @ 3000K; 129lm/W @ 3500K; 138lm/W @ 4000K; 138lm/W @ 5000K; 129lm/W @ 6500K

14W: 125lm/W @ 3000K; 129lm/W @ 3500K; 136lm/W @ 4000K; 136lm/W @ 5000K; 129lm/W @ 6500K

16W: 131lm/W @ 3000K; 134lm/W @ 3500K; 138lm/W @ 4000K; 138lm/W @ 5000K; 134lm/W @ 6500K

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Description

UL 924-certified Type B T8 tube with field-adjustable power and color temperature. Ideal for general purpose lighting and as a battery-powered backup LED solution.

Electrical

Driver

Constant Current 120-277V 50/60 Hz; 120V: 133mA; 208V: 77mA; 240V: 67mA; 277V: 58mA

THD

<20%

Power Factor

0.8

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Operating Temperature

-4°F to 113°F(-20 to 45°C)

Flicker

50%

Emergency Fixture Use

Yes, meets UL924

Emergency Test Button

Included as accessory

Battery Type

Lithium

Emergency Operation

90 minutes

Emergency Lumens

500lm @ 4000K

LED Characteristics

Beam Angle

140°

Color Temperature

Default: 4000K
Field adjustable via dip switch 3000/3500/4000/5000/6500K

Color Accuracy (CRI)

≥80 CRI

R9 Value

High color performance with R9 greater than 0

Color Consistency

<7-step (3500/4000/5000K); <5-step (3000/6500K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Installation Method

UL Type B, Ballast Bypass

Base Type

G13

Construction

Length

4 ft

Shape

T10 Linear

Finish

White

Endcap Material

Copper

Enclosure Material

Polycarbonate

Lens Finish

Frosted

Compliance

Listings

UL Recognized, UL Classified

Environment

Suitable for use indoors in dry and damp environments.

Fixture Rating

Suitable for use in enclosed fixtures

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.

Certification Model Number

T10309(T10EM-48)

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
