CD34FA6SP-30-709-KF

Spec Sheet IES File Battery Backup List LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

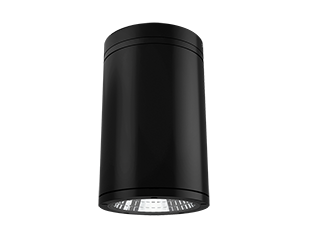

CD34FA6SP-30-709-KF

Aluminum extrusion housing and die-casting covers

Field adjustable color temperatures between 5000/4000/3500/3000/2700K

Smooth, diffused downward light output

Pendant mount accessory sold separately

0-10V dimming

90 CRI provides high color rendering

View Technical Specs

View Price & Availability

Performance

Watts	30W
Color Temp	Field Adjustable 2700K/3000K/3500K/4000K/5000K
Lumens	2,156 lm
Efficacy	72
Color Accuracy	90 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.27A
208V	0.17A
240V	0.14A
277V	0.12A
Input Watts	30W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 6.0 lbs

Technical Specifications

Performance

Description

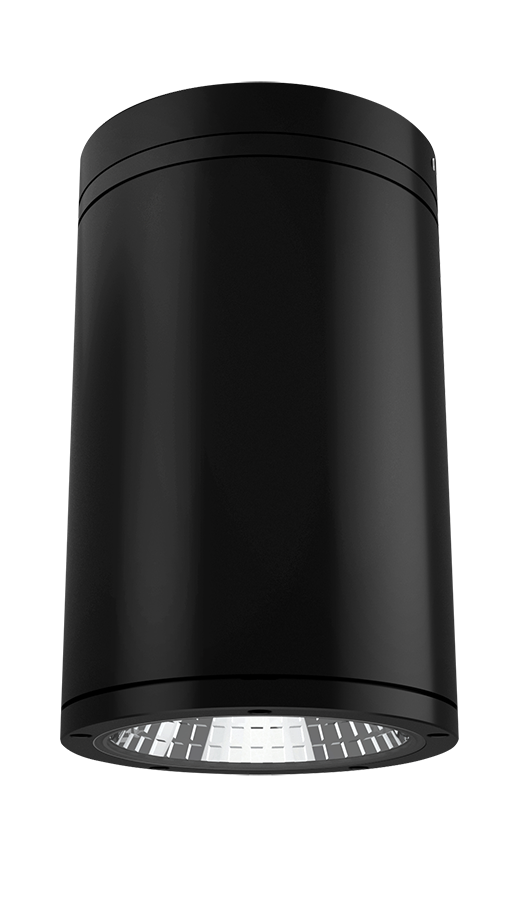

This 6-inch CD34 cylinder is dimmable and ideal for surface or pendant mounting in indoor applications. This fixture provides superior downward facing light with a frosted lens and field adjustable color temperates from 5000/4000/3500/3000/2700K

Product Type

Economy Cylinder

Wattage Equivalency

Equivalent to 150W Incandescent

Input Wattage

30W

Lumens

2,156lm

Efficacy

72lm/W

Note

Lumens and efficacy values are based on the highest wattage output at 3000K

L70 Lifespan

100,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, Non-Isolated Driver, 50/60 Hz, 120-277V, 120V: 0.27A, 208V: 0.17A, 240V: 0.14A, 277V: 0.12A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 5%.

THD

<20%

Power Factor

>0.9

Dimmable

Yes, 0-10V continuous dimming

Input Voltage

120-277V

Operating Frequency

50/60Hz

Operating Temperature

-22°F to 122°F (30°C to 50°C)

Flicker

<30%

LED Characteristics

LEDs

LED array provides a uniform source with high efficiency and no pixilation

Color Temperature

Field Adjustable: 2700K,3000K,3500K,4000K,5000K

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 greater than or equal to 50

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Mounting

Surface Mount. Pendant mount accessories available (sold separately).

Construction

Size

Shape

Cylinder

Finish

Formulated for high durability and long-lasting color

Housing Material

Cylinder aluminum extrusion/cover aluminum die casting

Lens

Regressed lens constructed from impact resistant polycarbonate. Convex lens gives the optic a similar lamp-like appearance. Provides smooth and diffuse light distribution.

Lens Finish

Frosted

Optical

Beam Angle

70°

Compliance

Indoor/Outdoor

Suitable for indoor and outdoor use

Environment

Suitable for use in dry, damp, and wet environments.

Fixture Rating

Open

Energy Star Approved

ENERGY STAR® Version 2.2 Certified

Certification Model Number

CD1019(CD34FA6SP-30-709-KF)

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15B of the FCC Rules

Other

Accessories

CD34STEM-K
Black stem for pendant mount

5 Yr Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Note

All values are typical (tolerance +/- 10%)

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
