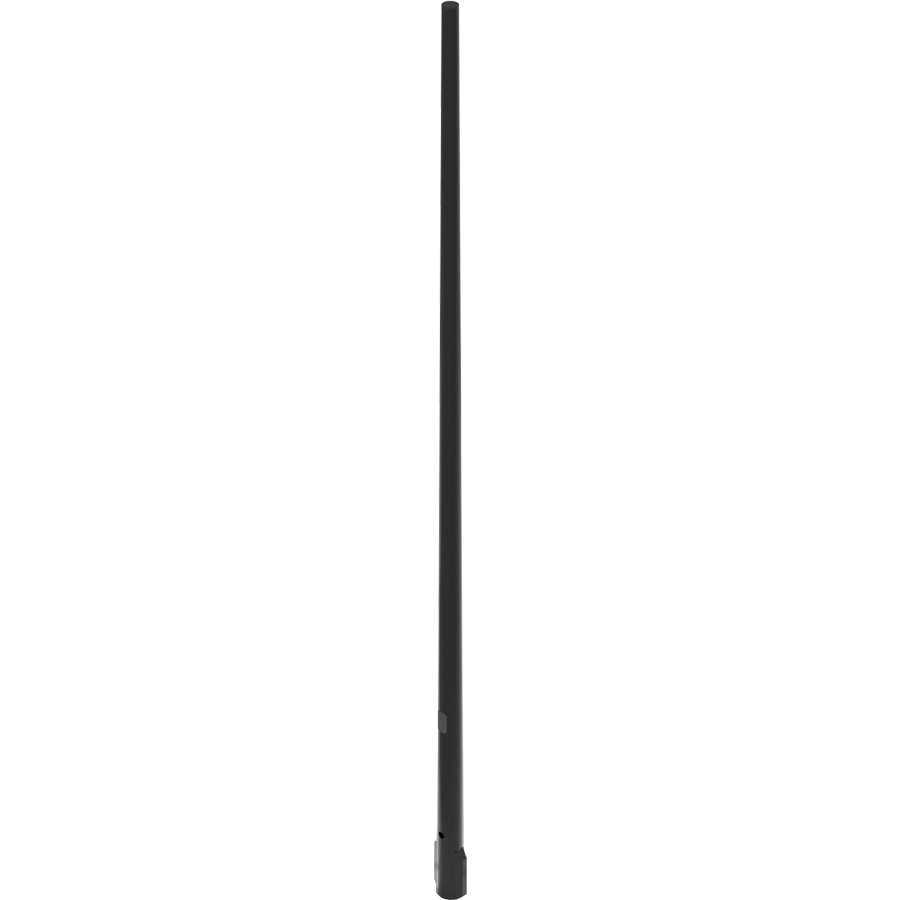

CDTR4-20D

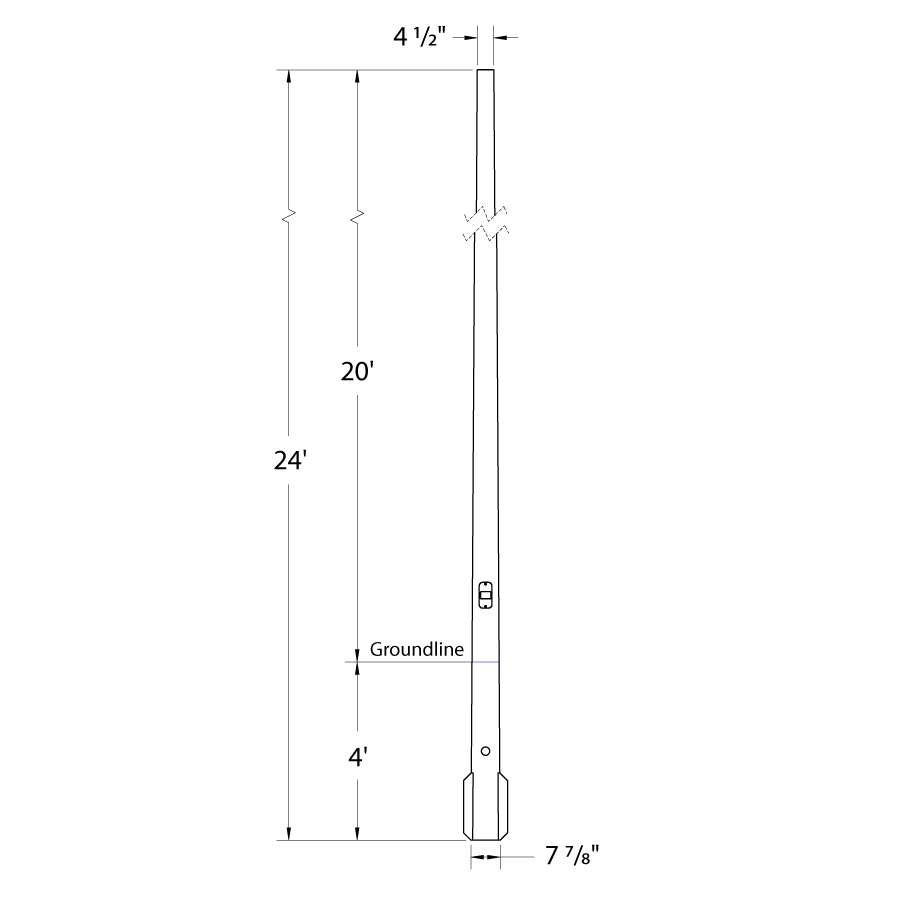

Dimensions
Weight: 58.0 lbs
Technical Specifications
Compliance
Buy American Act Compliance
This product complies with the Buy American Act
The Build America, Buy America Act (BABA)
Light poles meet The Build America, Buy America Act (BABA) (Pub. L. No. 117-
58, §§ 70901-52).
Construction
Pole Material
Reinforced fiberglass
Maximum EPA Per Wind Zone
90 mph: 9.1
100 mph: 6.5
110 mph: 4.6
120 mph: 3.6
130 mph: 2.9
140 mph: 2.8
150 mph: 2.3
160 mph: 1.9
170 mph: 1.5
180 mph: 1.3
100 mph: 6.5
110 mph: 4.6
120 mph: 3.6
130 mph: 2.9
140 mph: 2.8
150 mph: 2.3
160 mph: 1.9
170 mph: 1.5
180 mph: 1.3
Burial Height
4 ft
Height
20 ft
Shape
Round Tapered
Finish
All poles come with bronze finish and 3-layer of protection against UV degradation. The thrird layer is the thermally bonded outer coating.
Pole Drilling
All poles HH covers and cable entry are factory drilled
Cable Entry
Cable entry provided on the direct burial poles with a diameter of 2 1/4"
Hand Hole and Covers
2 1/2" x 5" hand hole is standard for all the poles and are located at 18" above ground level. The hand hole covers are made of durable, weather resistant material.
Caps
The plastic cap is pre-assembled to the pole before shipping
Integral Anti Rotation Flange
Direct bury poles comes with an integral anti rotation flange
Other
2-Year Limited Warranty
The RAB 2-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Accessories
Poles are shipped with pole cap. The anchor bolt kit, base covers for round poles are sold separately BOLT4/7: Anchor bolt kit for round poles. BCK-CP-R: Round composite pole base cover.
Terms of Sale
Pole Terms of Sale is available online.
