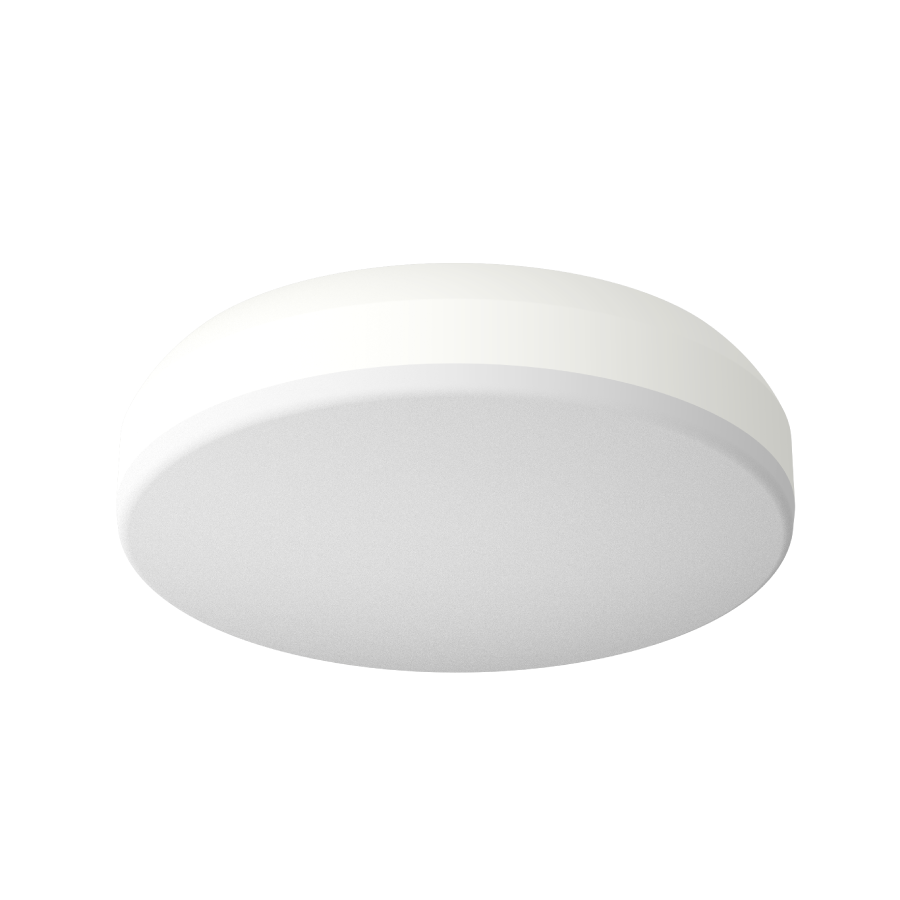

CRVFAS-11R-16-9CCT-UNV-W

Spec Sheet Dimmer Compatibility List Downlight Accessory Compatibility List Instructions Dimmer List Sell Sheet Family Spec Sheet Spec Sheet

Surface mount to ceiling or wall

Field-adjustable "set and forget" color temperature

Diffused lens provides soft, smooth light

Ideal for hospitality and multi-family residential applications

Suitable for wet and damp locations

View Technical Specs

View Price & Availability

Performance

Watts	16W
Color Temp	2700/3000/3500/4000/5000K
Lumens	1,150 lm
Efficacy	72
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.15A
208V	0.09A
240V	0.07A
277V	0.06A
Input Watts	16W

Dimensions

Weight: 1.8 lbs

Technical Specifications

Performance

Product Type

Flush Mount

Description

5-CCT selectable, back-lit LED retrofit fixture. Installs on standard junction boxes. Dimmable models available for 0-10V or TRIAC dimming systems with optional microwave sensor and/or integrated emergency battery backup.

Wattage Equivalency

75W Incandescent

Input Wattage

16W

Nominal Lumens

1,150lm

Efficacy

72lm/W

Measured Lumens

1161lm @ 2700K; 1258lm @ 3000K; 1305lm @ 3500K; 1308lm @ 4000K; 1235lm @ 5000K

Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, Class 2

THD

<20%

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 10% on compatible 0-10V dimming systems. See Dimmer Compatibility List. Requires separate 0-10V DC dimming circuit.

Input Voltage

120-277V

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

150mA

Input Current @ 208V (mA)

85mA

Input Current @ 240V (mA)

73mA

Input Current @ 277V (mA)

63mA

Operating Temperature

-4°F to 104°F (-20°C to 40°C)

LED Characteristics

Beam Angle

120°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step (2700K & 5000K); <7-step (3000K/3500K/4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Surface mount

Construction

Size

11"

Shape

Round

Finish

White

Enclosure Material

Plastic

Trim Style

Smooth

Lens Finish

Frosted

Lens

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Compliance

Listings

UL Listed

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Air Tight

DLC Listed

Certification Model Number

CRVFAS-11R-16-9CCT-UNV-W

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C1).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

Compatible Accessories

CRVFA-CONVERTIBLE-KIT
Pendant mount kit for CRVFA

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
